Oxization Wire Size 1.65mm Copper And Nickel Alloy Suit In Cooling Tower

Product Details

Place of Origin: China

Brand Name: TANKII

Certification: ISO

Model Number: Monel 400

Payment & Shipping Terms

Minimum Order Quantity: 20Kg

Packaging Details: Wire diameter 0.02mm-1.0mm packing in spool, big than 1.0mm packing in coil

Delivery Time: 7days

Payment Terms: Western Union

Supply Ability: 200000/Month

Get Best Price
Contact Now
Specifications
Highlight:

copper and nickel alloy

,

alloy of copper and nickel

Type:
Nickel Alloy
Ni(Min):
63%
Application:
Cooling Syestem
Standard:
ASTM
Size Range:
0.018mm~3.0mm
Surface:
Bright,Oxization,Insulation
Type:
Nickel Alloy
Ni(Min):
63%
Application:
Cooling Syestem
Standard:
ASTM
Size Range:
0.018mm~3.0mm
Surface:
Bright,Oxization,Insulation
Description
Oxization Wire Size 1.65mm Copper And Nickel Alloy Suit In Cooling Tower

Monel 400 Wire UNS N04400 Size 1.65mm Used In Cooling Tower



Product Description



Monel 400/Alloy 400/Nickel 400/UNS N04400/Wr.No.2.4360



Shangahi Tankii AlloyMaterial is a manufacturer of various alloy wire and stainless steel with many years experience. Monel 400 Alloy is a kind of corrosion-resistant alloy. We can supply a full range of this material to fit your requirements.



Monel 400 Usage

Mainly used in  chemical, petrochemical,  oil exploration, nuclear industry,

electronic industry and other fields.



Monel 400 Physical Properties

Density

8.83 g/cm³

Melting point

1300-1390 °C



Monel 400 Chemical Composition

CHEMICAL COMPOSITION %

C

Cu

Ni

Fe

Mn

Si

S

≤0.30

28.0∼34.0

≥63.0

≤2.5

≤2.0

≤0.5

≤0.024



 Monel 400 Corrosion resistance
    Monel 400 alloy in the fluoride gas, hydrochloric acid, sulfuric acid, hydrofluoric acid and their derivatives have a very good corrosion resistance property, and possess better corrosion resistance more than the copper alloy in the sea water. Acid medium: Monel 400 has corrosion resistance in less than 85% consistency of sulfuric acid. Monel 400 is an important material that resistant to hydrofluoric acid. Water corrosion: Monel 400 alloy in most corrosion cases of water, not only excellent corrosion resistance, but also less pitting, stress corrosion, the corrosion rate less than 0.025mm / a. High temperature corrosion: Monel 400 for the work of the highest temperature at about 600 °C in general in the air, in the high temperature steam, the corrosion rate less than 0.026mm / a. Ammonia: Monel 400 can be resistant to an hydrous ammonia and aminate conditions corrosion below 585 °C due to the high nickel.



Monel 400 minimum mechanical properties in the room temperature

Alloy state

Tensile strength

Rm N/mm²

Yield strength
P02N/mm²

Elongation
5 %

Monel400

480

170

35



Monel 400 Application field

Monel 400 alloy is a multi-purpose material in many industrial applications:
1. Seamless water pipe in the power factory
2. Sea-water exchanger and evaporator
3. Sulfuric acid and hydrochloric acid environment
4. Crude distillation
5. Sea-water in the use of equipment and propeller shaft
6. Nuclear industry and used in the manufacture of uranium enrichment isotope separation equipment
7. Manufacturing hydrochloric acid equipment used in the production of pump and valve

Oxization Wire Size 1.65mm Copper And Nickel Alloy Suit In Cooling Tower 0



Monel 400 Standard

Material

Sheet/plate

Round bar

Welded Pipe/Tube

Seamless Pipe/Tube

Forgings



Alloy 400/Monel 400

/UNS N04400/2.4360

ASTM B127

ASTM B164

ASTM B725

ASTM B730

ASTM B165

ASTM B163

ASTMB564

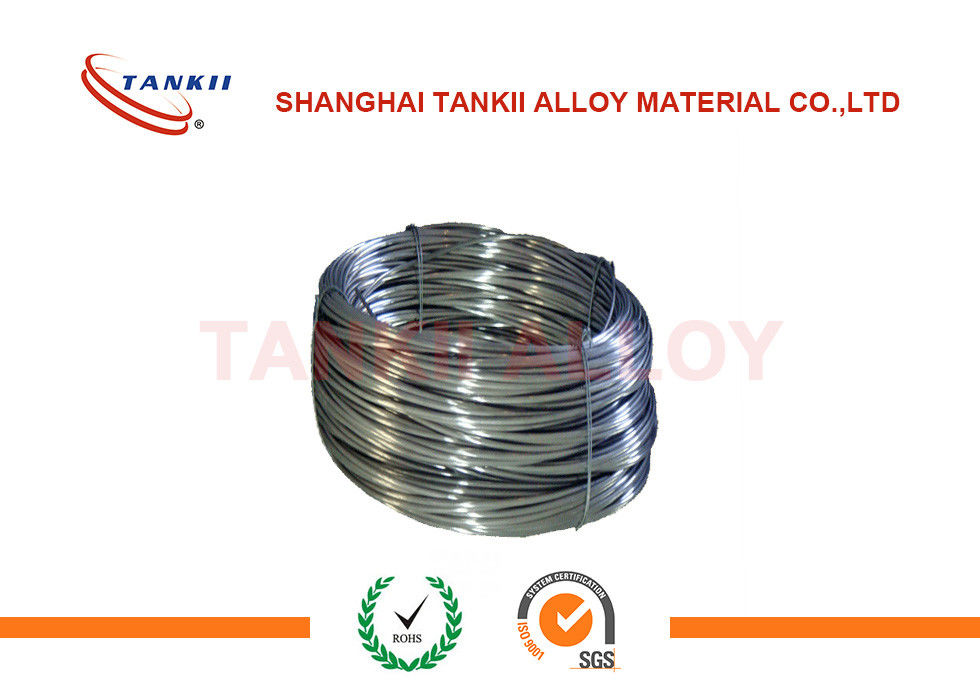

Package:


Oxization Wire Size 1.65mm Copper And Nickel Alloy Suit In Cooling Tower 1
