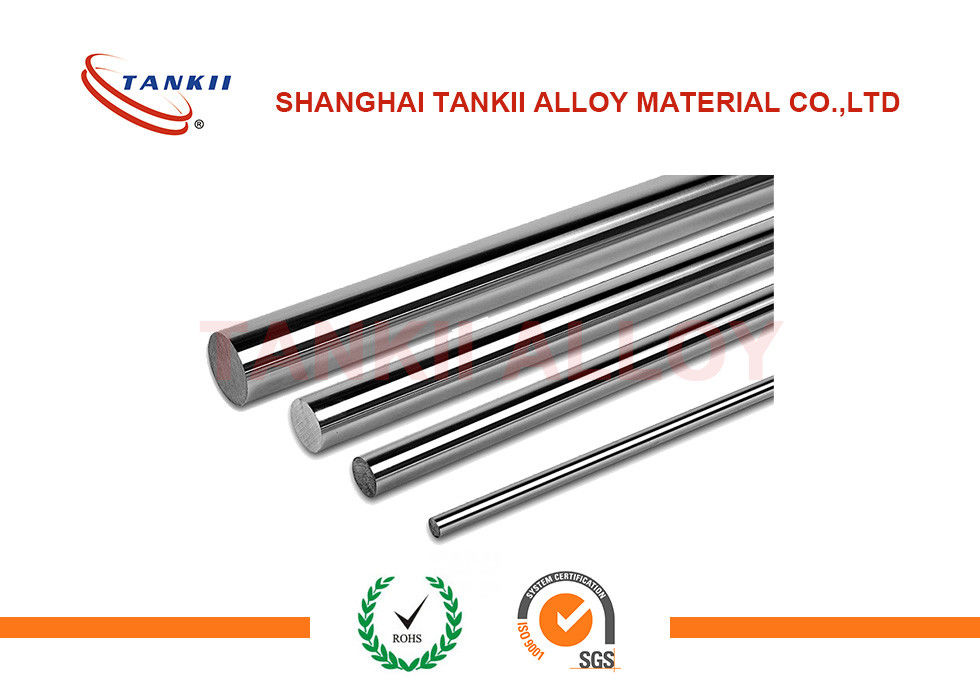

Hastelloy C-4 / UNS N06455 for Hot Mineral Acids , Alloy Bar Chlorine-Containing Medium

Hastelloy C-4 / UNS N06455 for Hot Mineral Acids , Alloy Bar Chlorine-Containing Medium

    • Hastelloy C-4 / UNS N06455 for Hot Mineral Acids , Alloy Bar Chlorine-Containing Medium
    • Hastelloy C-4 / UNS N06455 for Hot Mineral Acids , Alloy Bar Chlorine-Containing Medium
  • Hastelloy C-4 / UNS N06455 for Hot Mineral Acids , Alloy Bar Chlorine-Containing Medium

    Product Details:

    Place of Origin: China
    Brand Name: Superalloys
    Certification: ISO 9001 and RoHS
    Model Number: Hastelloy C-4

    Payment & Shipping Terms:

    Minimum Order Quantity: 200 KG
    Price: USD 35~70 / KG
    Packaging Details: Wooden case or pallet
    Delivery Time: 25-30 days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 10000
    Contact Now
    Detailed Product Description
    Shape: Bar Condition: Oxidized
    Feature: Corrosion Resistant Application: Work In The 649 To 1038℃
    Machining: Cold Drawn Or Forging Material: Hastelloy C-4

    Hastelloy C-4 / UNS N06455 for Hot Mineral Acids, Chlorine-Containing Medium, High Temp Metal



    HASTELLOY C-4 alloy is a nickel-chromium-molybdenum alloy with outstanding
    high-temperature stability as evidenced by high ductility and corrosion resistance even after aging in the 1200 to 1900 °F (649 to 1038°C) range.  This alloy resists the formation of grain-boundary precipitates in the weld heat-affected zone, thus making it suitable for most chemical process applications in the as-welded condition.  C-4 alloy also has excellent resistance to stress-corrosion cracking and to oxidizing atmospheres up to 1900°F (1038°C).



    HASTELLOY C-4 alloy has exceptional resistance to wide variety of chemical process environments. These include hot contaminated mineral acids, solvents, chlorine and chlorine contaminated media (organic and inorganic), dry chlorine, formic and acetic acids, acetic anhydride, and seawater and brine solutions.





    Name:  Hastelloy C-4/ UNS N06455



    Application: Hastelloy C-4 (Ni-Cr- Mo) having excellent thermal stability and toughness at a high temperature, for and the stress corrosion cracking under high temperature oxidizing atmosphere having good resistance. Suitable for all types hot mineral acids, chlorine-containing medium, acetic acid, acetic anhydride, water and brine solution and other corrosive substances.



    Feature:

    Hastelloy C-4 Operating temperature about: -200 to + 400 ° C

    Main features: good organizational stability, after welding can be used directly.



    Description:





    Physical properties

    >Density (g/cm3): 8.64

    >Melting point (℃): 1350~1400



    Chemical composition(%)



    Grade

    %

    Ni

    Cr

    Mo

    Fe

    C

    Mn

    Si

    Co

    S

    P

    Ti

    Hastelloy C-4

    Min.

    65

    14

    14











    Max.



    18

    17

    3.0

    0.01

    1.0

    0.08

    2.0

    0.010

    0.025

    0.70







    Mechanical properties



    Yield Strength (Mpa)

    Tensile Strength (Mpa)

    Elongation, %

    Hardness, HB

    Incoloy 825

    365

    783

    55





















    If you have any questions, pls contact with us! Tankii always glad to help you!

    Have a good day!
