Product Details:
|
| Insulaltion: | Enamelled | Temper Class: | :133℃,150℃180℃,200℃,220℃ |
|---|---|---|---|
| Colour Of Enamelled: | Black,Red,Nature,Blue,Green,yellow | Bare Conductor: | Nichrome |
| Shape: | Round Wire,Flat Wire | Application: | Precision Resistor |
| Highlight: | enamelled copper wire,enamel magnet wire |
||

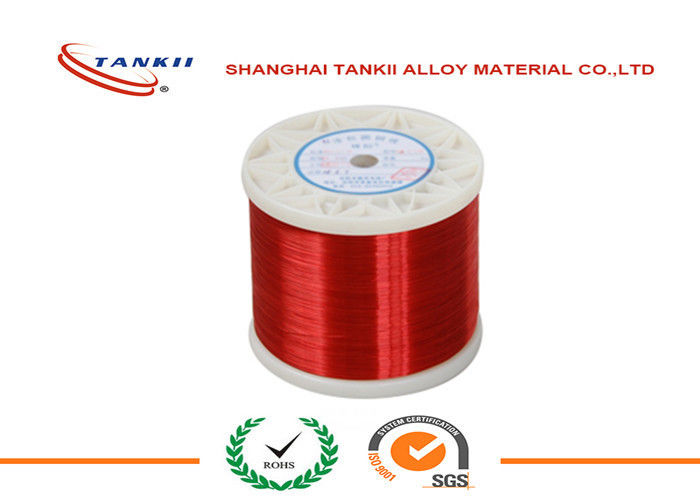

Enamelled NiCr 80/20 Wire (Grade:133℃,150℃,180℃130℃ 200℃,220℃ ) for Heating Pad
Application of nichrome alloy wire
A Resistance Alloy used in electrical heating application. It is recommended for use in dry air applications up to 2150 degrees F with good hot strength. It is an alloy of nickel and chromium with high electrical resistance; used for resistance heating elements. Nichrome 80/20 is an ideal material, because it has relatively high resistance and forms an adherent layer of chromium oxide when it is heated for the first time. Material beneath the wire will not oxidize, preventing the wire from breaking or burning out.
Applications:
Chemical Composition and Main Properties of Nichrome Wire
|
Alloy Nomenclature Performance |
Ni80Cr20 |
Ni70Cr30 |
Ni60Cr15 |
Ni35Cr20 |
Ni30Cr20 |
|
|
Main Chemical composition |
Ni |
Rest |
Rest |
55.0-61.0 |
34.0-37.0 |
30.0-34.0 |
|
Cr |
20.0-23.0 |
28.0-31.0 |
15.0-18.0 |
18.0-21.0 |
18.0-21.0 |
|
|
Fe |
≤1.0 |
≤1.0 |
Rest |
Rest |
Rest |
|
|
Max. continuous service temp. of element(ºC) |
1200 |
1250 |
1150 |
1100 |
1100 |
|
|
Resistivity at 20ºC (μΩ·m) |
1.09 |
1.18 |
1.12 |
1.0 |
1.04 |
|
|
Density(g/cm3) |
8.40 |
8.10 |
8.20 |
7.90 |
7.90 |
|
|
Thermal conductivity (KJ/m·h·ºC) |
60.3 |
45.2 |
45.2 |
43.8 |
43.8 |
|
|
Coefficient of lines expansion(α×10-6/ºC) |
18.0 |
17.0 |
17.0 |
19.0 |
19.0 |
|
|
Melting point approx.( ºC) |
1400 |
1380 |
1390 |
1390 |
1390 |
|
|
Elongation at rupture(%) |
>20 |
>20 |
>20 |
>20 |
>20 |
|
|
Micrographic structure |
austenite |
austenite |
austenite |
austenite |
austenite |
|
|
Magnetic properties |
nonmagnetic |
nonmagnetic |
Weak magnetic |
Weak magnetic |
Weak magnetic |
|
Tpye of Insulation:
1) Polyester resistance wire , class 130
2) Modified polyester resistance wire , class 155
3) Polyesterimide resistance wire , class 180
4) Polyester (imide) coated with polyamide-imide resistance wire , class 200
5) Polyimide resistance wire , class 220
Type Of Bare Alloy Wire
The alloy we can do enamelled are Copper-nickel alloy wire,Constantan wire,Manganin wire. Kama Wire,NiCr Alloy wire,FeCrAl Alloy wire etc alloy wire
Size:
Round wire:0.018mm~3.0mm
Color of enamel insulation:Red,Green,Yellow,Black,Blue,Nature etc.
Ribbon Size:0.01mm*0.2mm~1.2mm*24mm
Moq:5kg each size
FAQ
Q1.Do you attend exhibition every year?
A .Yes
Q2.Is there any discount of the nickel wire?
A. Yes. Bigger quantity will get a discount.
Q3.Information needed if I want a quotation?
A Name, Standard, Material Grade(Chemical Composition), Size Quantity, Weight.
Q4. Can we visit your company/factory before place the order?
A. Yes. Welcome anytime
Q5: How does your factory do regarding quality control?
A. Quality is priority. We always attach great importance to quality controlling from beginning to end.
