Product Details
Place of Origin: CHINA
Brand Name: TANKII
Certification: ISO9001
Model Number: NiCr80/20.
Payment & Shipping Terms
Minimum Order Quantity: 10kg
Packaging Details: 20, 000kg/month
Payment Terms: L/C, T/T, Western Union
Chemical Composition:: |
NiCr |
Size: |
0.01mm-10mm |
Use: |
Electric Heater Parts |
Place Of Origin:: |
China (Mainland) |
Application:: |
Heating |
Condition: |
Bright And Soft |
Chemical Composition:: |
NiCr |
Size: |
0.01mm-10mm |
Use: |
Electric Heater Parts |
Place Of Origin:: |
China (Mainland) |
Application:: |
Heating |
Condition: |
Bright And Soft |

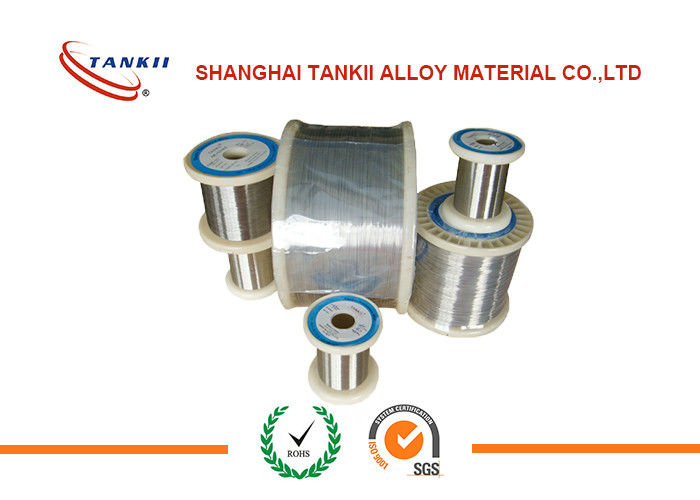

Fiberglass Insulated Nichrome Wre Which Is Widely Ued In Industrial Furnace,
The specification of fiberglass insulated nichrome wire
A.Features
nickel-chromium, nickel, ferrochrome alloy wire with electric high temperature oxidation resistance, high strength, not soften and a series of advantages. When used in a long time, the same type and the permanent elongation is very small, which is more Cr20Ni80 alloy with excellent comprehensive properties, is to produce high-quality varieties of choice for electric components. The products are widely used in industrial furnace, metallurgy, machinery, household appliances and other industries producing heating elements and resistance elements
1) NiCr80/20 wire with Fiberglass Insulated.
2) Conductor Material: NiCr80/20 Alloy Wire
3) Insulation Material: Fiberglass
4) Conductor diameter: from 0.05mm to 2.0mm
B.Main characteristics of Ni-Cr and Ni-Cr-Fe electric heating alloys
|
Alloy Nomenclature
/Performance |
Cr20Ni80
|
Cr30Ni70
|
Cr15Ni60
|
Cr20Ni35
|
Cr20Ni30
|
|
|
Main
Chemical composition |
Ni
|
Rest |
Rest |
55.0-61.0 |
34.0-37.0 |
30.0-34.0 |
|
Cr
|
20.0-23.0 |
28.0-31.0 |
15.0-18.0 |
18.0-21.0 |
18.0-21.0 |
|
|
Fe
|
≤1.0 |
≤1.0 |
Rest |
Rest |
Rest |
|
|
Max. continuous service temp. of element |
1200 |
1250 |
1150 |
1100 |
1100 |
|
|
Resistivity at 20oC (μΩ·m) |
1.09 |
1.18 |
1.12 |
1.0 |
1.04 |
|
|
Density (g/cm3) |
8.40 |
8.10 |
8.20 |
7.90 |
7.90 |
|
|
Thermal conductivity |
60.3 |
45.2 |
45.2 |
43.8 |
43.8 |
|
|
Coefficient of lines expansion |
18.0 |
17.0 |
17.0 |
19.0 |
19.0 |
|
|
Melting point (approx.)( oC) |
1400 |
1380 |
1390 |
1390 |
1390 |
|
|
Elongation at rupture (%) |
>20 |
>20 |
>20 |
>20 |
>20 |
|
|
Micrographic structure |
austenite |
austenite |
austenite |
austenite |
austenite |
|
|
Magnetic properties |
nonmagnetic |
nonmagnetic |
nonmagnetic |
Weak magnetic |
Weak magne |
|
Ni80Cr20
Chemical Content, %
|
C |
P |
S |
Mn |
Si |
Cr |
Ni |
Al |
Fe |
Other |
|
Max |
|||||||||
|
0.08 |
0.02 |
0.015 |
0.60 |
0.75~1.60 |
20.0~23.0 |
Bal. |
Max 0.50 |
Max 1.0 |
- |
Mechanical Properties
|
Max Continuous Service: Resisivity( 20℃)/Ω·m:
Density: Thermal Conductivity: Coefficient of Thermal Expansion: Melting Point: Elongation: Micrographic Structure: Magnetic Property: |
1200℃ 1.09 +/-0.05 (Dia: <0.5mm) 1.13+/-0.05 (Dia: 0.50-3.00 mm) 1.14+/-0.05 (Dia: >3.0mm)
8.4 g/cm3 60.3 KJ/m·h·℃ 18.0 α×10-6/℃ 1400 ℃ Min 20% Austenite nonmagnetic |
Package:
A. Plastic spool /coil accoring to the wire size+carton+pallet / wooden.
B. According to customers requirement.
C. To make sure no any damage whether delivery by sea or by air.
