Product Details
Place of Origin: China
Brand Name: TANKII
Certification: ISO
Model Number: Constantan
Payment & Shipping Terms
Minimum Order Quantity: 20kg
Packaging Details: Strip/Wire/Ribbon diameter 0.005mm-1.0mm packing in spool, big than 1.50mm packing in coil
Payment Terms: Western Union, T/T, L/C
Supply Ability: 20,000kg/Week
State: |
Soft Annealled Or Hard |
Sample Supply: |
Small Sample Supply Is Available |
Feature:: |
Good Form Stability & Lower Prices |
Type: |

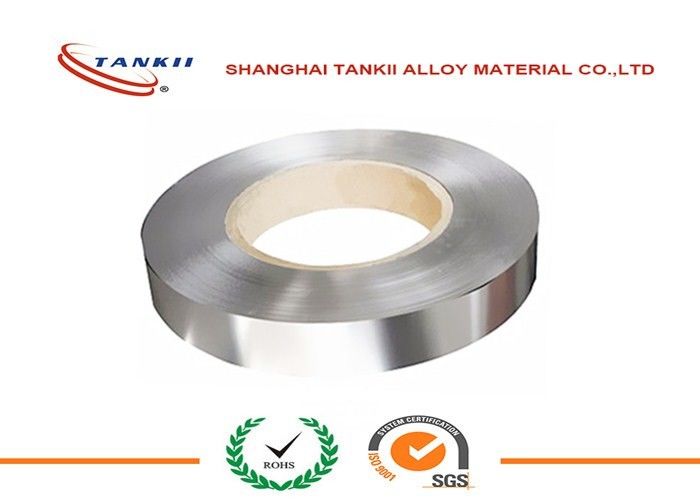

Strip In Roll |
Application: |
Strain Gauge |
Chemical Composition: |
CuMnNi |
State: |
Soft Annealled Or Hard |
Sample Supply: |
Small Sample Supply Is Available |
Feature:: |
Good Form Stability & Lower Prices |
Type: |
Strip In Roll |
Application: |
Strain Gauge |
Chemical Composition: |
CuMnNi |
2. Product Description
Constantan is a copper-nickel alloy that contains specific minor amounts of additional elements to achieve precise values for the temperature coefficient of resistivity. Careful control of melting and conversion practices results in a very low level of pinholes at ultra-thin thicknesses. The alloy is used extensively for foil resistors and strain gauges.
Chemical Content, %
Ni | Mn | Fe | Si | Cu | Other | ROHS Directive | |||
Cd | Pb | Hg | Cr | ||||||
40 | 1.50% | - | - | Bal | - | ND | ND | ND | ND |
Mechanical Properties
Max Continuous Service Temp | 400℃ |
Resisivity at 20℃ | 0.48±3%ohm mm2/m |
Density | 8.9 g/cm3 |
Thermal Conductivity | -6(Max) |
Melting Point | 1280℃ |
Tensile Strength,N/mm2 Annealed,Soft | 340~535 Mpa |
Tensile Strength,N/mm3 Cold Rolled | 680~1070 Mpa |
Elongation(anneal) | 25%(Min) |
Elongation(cold rolled) | ≥Min)2%(Min) |
EMF vs Cu, μV/ºC (0~100ºC) | -43 |
Micrographic Structure | austenite |
Magnetic Property | Non |
TCR | -40~+40 |
Constantan Tradenames:
Cuprothal, Alloy 294, Cuprothal 294, Nico, MWS-294, Cupron, Copel, Alloy 45,
Neutrology, Advance, CuNi 102, Cu-Ni 44, Konstantan
Resistance Alloy- Constantan Sizes / Temper Capabilities
1; Condition: Bright, Annealed, Soft
2; Wire diameter 0.02mm-1.0mm packing in spool, big than 1.0mm packing in coil
3; Rod, Bar diameter 1mm-30mm
4; Strip: Thickness 0.05mm-7mm, Width 1mm-280mm
FAQ
Q1.Do you attend exhibition every year?
A .Yes
Q2.Is there any discount of the nickel wire?
A. Yes. Bigger quantity will get lower discount.
Q3.Information needed if I want a quotation?
A Name, Standard, Material Grade(Chemical Composition), Size Quantity, Weight.
Q4. Can we visit your company/factory before place the order?
A. Yes. Welcome anytime
Q5: How does your factory do regarding quality control?
A. Quality is priority. We always attach great importance to quality controlling from beginning to end.
