|Place of Origin:||CHINA|
|Minimum Order Quantity:||100|
|Packaging Details:||IN PAPER CASE|
|Delivery Time:||5~15 days as per the order qty|
|Supply Ability:||1000tons per year|
|Dielectric Strength:||1500v. 1/seg||Wattage Tolerance:||+5 Percent, -10 Percent|
Normal steel tubular heating element used for Grill heating element /coffe machine or electric water boiler
OEM designed customized heating element and heater for different kind of electric appliance: home appliance and electric industrial equipment
Stainless Steel Finned tubular heating elements for forced air heating is designed for use in natural and forced convection space heating. our range of finned air heaters are suitable for increased heat transfer surface area and where higher wattage is required. Featuring rugged construction, these finned heaters can be used in a multitude of industrial environments.
Finned tubular heaters are used for forced convection heating, air or gas heating heating systems. Finned tubular heaters/heating elements are customized to meet your specific application needs.
1. Stainless Steel heating element
2. Normal steel tubular heating element
3. steel heating element with copper coated
4. Aluminum heating element .
5. Infrared quartz heating element
6. Copper heating element
7. heater plate
8. heating plate

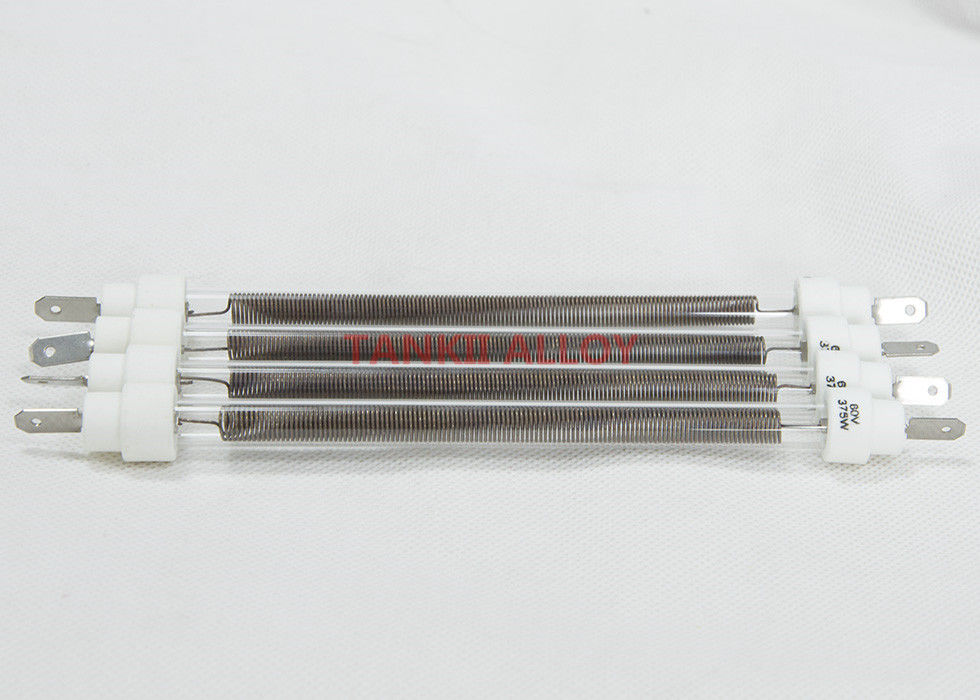

The heating element is made of surface anti-oxidation insulated electric heating wire and high quality quartz tube/ceramic tube, which can be used vertically. The heater has the characteristics of fast heating and long life. It can be installed in any direction, easily assembly with low cost, and without protective atmosphere or vacuum protection. The highest working temperature can reach 1300 degrees, the service life is not less than 20,000 hours. The heating elements are widely used in various types of electric heaters and heating equipment, especially suitable for the production of such as high temperature far infrared radiator, electric oven and other devices.
The heating element can be made in different shape: round , square , retangular...
We supply heating element for different kind of electric appliance , home used, commercial used and industrial used:
For example : Toaster heating element, Oven heating element , Grill heating element , heater heating element , heater plate for coffe machine or electric water boiler , rice cooker heating element , air conditioner heating element etc.
Heating element for industrial electric equiments:
Such as : heating element for hot runner , heating element for central air condittioner , heating element for water mold heater and oil mold heater , heating element for steamer , heating element for commerical used oven etc..., Heating element for material dryer, Heating element for food making systerm etc.
We are able to make the heating element according to your requiments, if there is any project, pls contact us.
|Sheath material||Stainless Steel 304/321/316,Incoloy800/840|
|Heat intensity||Not exceeding 30Wcm2 (advisable)|
|Tolerance of length||+/-1.5%|
|Tolerance of diameter||-0.01 a -0.06 m/m|
|Escape of current (when cold)||≤0.1mA a 242 v|
|Insulation (when cold)||5 Min Ohmios 500 Watts minimum|
|Dielectric strength||1500v. 1/seg|
|Tolerance of cut of connexion||+/-15 mlm|
|Power tolerance (w)||Power tolerance (w)|
|Wattage tolerance||+5 percent, -10 percent
1, Mechanically-bonded continuous fin assures excellent heat transfer and helps prevent fin vibration at high air velocities.
2, Tube diameter: 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm
3, Several standard formations and mounting bushings available.
3, Standard fin is SUS304, other Sheath and fin material available
4, 120V, 208V, 240V, 480V available, Special voltage/wattages avaiable
5, Various shape: Straight type, U type, W type, Roud type and so on
When you inquiry, pls sspecify the following details
1) If have drawing, it will be helpful.
2) Power, voltage, shape
3) Working temperature
4) Material requirement
6) Other requirement required.
More shape can be tailor-made:
