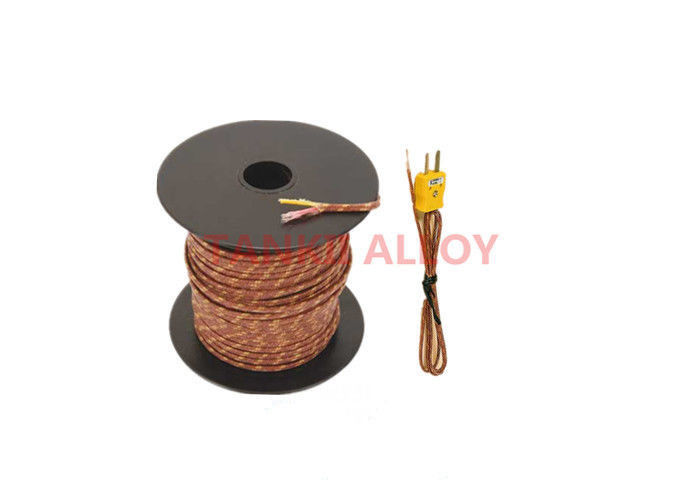

Thermocouple Cable with insulation of Ceramic Fiber , High Temp Fiberglass 800 Deg C 1200 Deg C

Thermocouple Cable with insulation of Ceramic Fiber , High Temp Fiberglass 800 Deg C 1200 Deg C

    • Thermocouple Cable with insulation of  Ceramic Fiber , High Temp Fiberglass 800 Deg C 1200 Deg C
    • Thermocouple Cable with insulation of  Ceramic Fiber , High Temp Fiberglass 800 Deg C 1200 Deg C
    • Thermocouple Cable with insulation of  Ceramic Fiber , High Temp Fiberglass 800 Deg C 1200 Deg C
  • Thermocouple Cable with insulation of  Ceramic Fiber , High Temp Fiberglass 800 Deg C 1200 Deg C

    Product Details:

    Place of Origin: SHANGHAI
    Brand Name: TANKII
    Certification: ISO9001-2008
    Model Number: K-CC-1.2

    Payment & Shipping Terms:

    Minimum Order Quantity: 100M
    Price: 0.5~1.2USD/METER
    Packaging Details: 100M/coil
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100000M/MONTH
    Contact Now
    Detailed Product Description
    KPX: Chromel KNX: NISi Or Alumel
    Insulation Color: Yellow And Red Insulation Material: Teflon

    Thermocouple Bare Wire Cable with Ceramic Fiber , High Temp Fiberglass 800 Deg C 1200 Deg C


    The thermocouple cable can also be termed as instrumentation cables, since they are used for process temperature measurement. The construction is similar to pair instrumentation cable but the conductor material is different. Thermocouples are used in processes to sense temperature and is connected to the pyrometers for indication and control. The thermocouple and pyrometer are electrically conducted by thermocouple extension cables / thermocouple compensating cables. The conductors used for these thermocouple cables are required to have similar thermo-electric (emf) properties as that of the thermocouple used for sensing the temperature.

    Besides thermocouple Mineral insulated cable ( MI cable ) , thermocouple enamelled wire, thermocouple ribbon wire, thermocouple rods can be Custom made according to your request.


    Application of thermocouple:
    • Heating – Gas burners for ovens
    • Cooling – Freezers
    • Engine protection – Temperatures and surface temperatures
    • High temperature control – Iron casting

    Different color codes can be supplied as per the request of the customers.

    IEC 584-1/2/3

    ANSI MC 96.1

    ASTM E230

    DIN EN 60584-1/2

    NF EN 60584-1/2-NFC 42323-NFC 42324

    UNI UNI-7938

    JIS C1602-C 1610

    GHOST 3044



    Products quality confirm to Standard

    IEC 584-1/2/3

    ANSI MC 96.1

    ASTM E230

    DIN EN 60584-1/2

    NF EN 60584-1/2-NFC 42323-NFC 42324

    UNI UNI-7938

    JIS C1602-C 1610

    GHOST 3044





    Properties of insulation material
    Material Type Continuous Operating Temp. / ℃ Abrasion Resistance Chemical Resistance Moisture Resistance Solvent Resistance Flame Resistance
    PE 80 Good Excellent Excellent Excellent Poor
    PVC 105 Very Good Very Good Good Fair Excellent
    TPE 125 Excellent Poor Good Good Excellent
    SILICONE 200 Good Good Excellent Excellent Excellent
    FEP 200 Excellent Excellent Excellent Excellent Excellent
    PFA 260 Excellent Excellent Excellent Excellent Excellent
    PTFE 260 Good Excellent Excellent Excellent Excellent
    B-GLASS FIBER 260 Good Good Fair Good Good
    G-GLASS FIBER 510 Poor Good Good Excellent Excellent
    Q-GLASS FIBER 704 Fair Good Good Excellent Excellent
    VITREOUS SILICA FIBER 1100 Good Good Excellent Excellent Excellent
    MINERAL INSULATION* 1100 Excellent Excellent Good Excellent Excellent



    Application:

    Thermocouple Cable with insulation of  Ceramic Fiber , High Temp Fiberglass 800 Deg C 1200 Deg C

    Thermocouple cable Delivery and Package:
    1. Standard Export package for the cable
    2. Delivery: By express/ air/ sea ,
    3. Leading time: 5-7 days after getting the payment or deposit




    About us

    Shanghai Tankii Alloy Material Co., Ltd. specialized in production of thermocouple wire, thermocouple cable thermocouple connector and other thermocouple products.

    Based on the principle of “first quality, sincere service”, our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.

    Our products, such us nichrome wire, nichrome strip, fecral wire, fecral strip, thermocouple wire, nickel wire, nickel strip have been exported to Europe, USA, India, Southest Asia, South America,etc.
    We are willing to establish strong and long-time partnership with our customers

    Your inquiry is a gift for us, your reply is a trust to us, your trust will bring us to provide you the best services in the business.

    Welcome to call me or email to me for more information on thermocouple wire or cable.
