Product Details
Place of Origin: China
Brand Name: Tankii
Certification: Rohs, SGS
Model Number: K
Payment & Shipping Terms
Minimum Order Quantity: 5 pcs
Price: 2~20 USD/pc
Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.
Delivery Time: 7 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000Ton per year
Item: |
Tankii SS Screened K Type Surface Thermocouple Sensor ISO 9001 Certified |
Conductor Type: |
Above 0.2mm |
Insulation: |
Fiberglass/PTFE/FEP |
Standard: |
ANSI/IEC/GB |
Lead Time: |
3~10 Days After Getting The Deposit |
Type: |
K |
Temperature Range: |
-200~700 |
Application: |
Used To Extend The Signal From A Probe To Instrumentation |
Item: |
Tankii SS Screened K Type Surface Thermocouple Sensor ISO 9001 Certified |
Conductor Type: |
Above 0.2mm |
Insulation: |
Fiberglass/PTFE/FEP |
Standard: |
ANSI/IEC/GB |
Lead Time: |
3~10 Days After Getting The Deposit |
Type: |
K |
Temperature Range: |
-200~700 |
Application: |
Used To Extend The Signal From A Probe To Instrumentation |

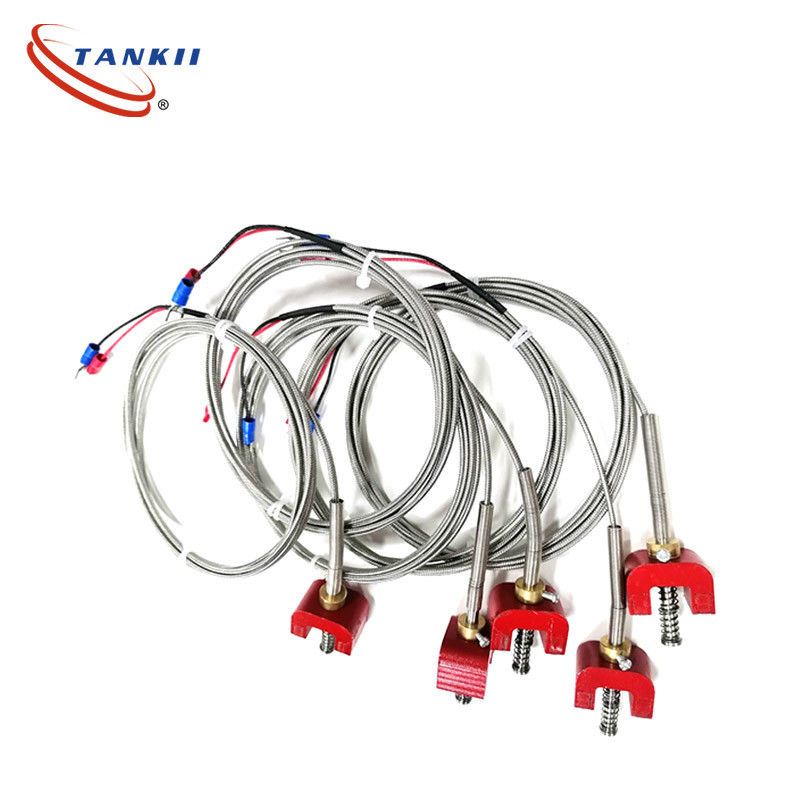

Tankii SS Screened K Type Surface Thermocouple Sensor ISO 9001 Certified
Key words:
Measures surface temperature of ferrous materials
Spring-mounted thermocouple sensor
Available types:
J, K , E, T
Advantage:Strong suction, no punching, customizable
Application of Surface thermocouple sensor:
1. Water pump
2. electrical machinery
3. Small boilers,
4. Air conditioning compressor,
5. Air conditioning heat exchanger
Magnetic thermocouple sensor:
The Magnetic switchable device can quickly contact the surface
Reusable
A magnetic probe suitable for long-term temperature measurement on surfaces with contact pressure.
It takes 10 seconds to reach the surface temperature.
| ASTM | (American Society for Testing and Materials) E 230 |
| ANSI | (American National Standard Institute) MC 96.1 |
| IEC | (European Standard by the International Electrotechnical Commission 584)-1/2/3 |
| DIN | (Deutsche Industrie Normen) EN 60584 -1/2 |
| BS | (British Standards) 4937.1041, EN 60584 - 1/2 |
| NF | (Norme Française) EN 60584 -1/2 - NFC 42323 - NFC 42324 |
| JIS | (Japanese Industrial Standards) C 1602 - C 1610 |
| GOST | (Unification of the Russian Specifications) 3044 |
Tankii SS Screened K Type Surface Thermocouple Sensor ISO 9001 Certified
Tankii SS Screened K Type Surface Thermocouple Sensor ISO 9001 Certified
| Conductor Name | Type | Applicable thermocouple type |
| Cu-Constantan0.6 | SC or RC | S or R |
| Iron-constantan22 Copper-Constantan40 Chromel-Ni(Alumel) | KCA KCB KX | K |
| Iron-constantan18 NiCr14Si-NiSi4Mg | NC NX | N |
| NiCr10-Constantan45 | EX | E |
| Iron-Constantan 45 | JX | J |
| Copper-Constantan 45 | TX | T |
| Packaging Details | Roll with plastic film wrapped and carton package |
|---|---|
| Delivery Detail | Shipped in 7 ~15 days after payment |
Cable type thermocouple sensor:
