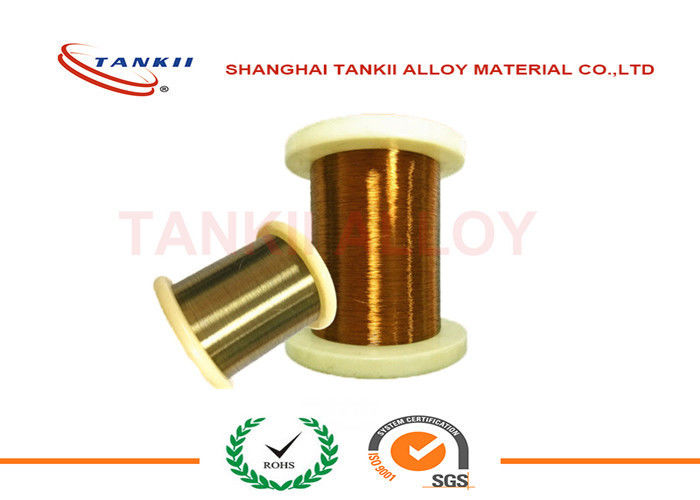

Enamelled Manganin Resistance Wire for Precision Instrument , Enamelled Wire 0.018mm - 3.0mm

Enamelled Manganin Resistance Wire for Precision Instrument , Enamelled Wire 0.018mm - 3.0mm

    • Enamelled Manganin Resistance Wire for Precision Instrument , Enamelled Wire 0.018mm - 3.0mm
    • Enamelled Manganin Resistance Wire for Precision Instrument , Enamelled Wire 0.018mm - 3.0mm
    • Enamelled Manganin Resistance Wire for Precision Instrument , Enamelled Wire 0.018mm - 3.0mm
  • Enamelled Manganin Resistance Wire for Precision Instrument , Enamelled Wire 0.018mm - 3.0mm

    Product Details:

    Place of Origin: China
    Brand Name: TANKII
    Certification: ROHS,SGS
    Model Number: Manganin

    Payment & Shipping Terms:

    Minimum Order Quantity: 5kg
    Packaging Details: in Spool
    Payment Terms: L/C, T/T, Western Union
    Contact Now
    Detailed Product Description
    Insulaltion: Enamelled Temper Class: :133℃,150℃180℃,200℃,220℃
    Colour Of Enamelled: Black,Red,Nature,Blue,Green,yellow Bare Conductor: Copper Manganin
    Shape: Round Wire,Flat Wire Application: Precision Resistor

    Enamelled Manganin Resistance Wire for Precision Instrument , Enamelled Wire 0.018mm - 3.0mm



    Product Description

    These enameled resistance wires have been broadly used for standard resistors, automobile
    parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.



    Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.



    Tpye of Insulation:

    1) Polyester resistance wire , class 130

    2) Modified polyester resistance wire  , class 155

    3) Polyesterimide resistance wire , class 180

    4) Polyester (imide) coated with polyamide-imide resistance wire , class 200

    5) Polyimide resistance wire , class 220



    Manganin,Constantan

      Constantan 6J40  New Constantan Manganin Manganin Manganin
    6J11 6J12 6J8 6J13
    Main Chemical Elements %  Mn  1~2  10.5~12.5  11~13 8~10 11~13
    Ni 39~41 - 2~3 - 2~5
    Cu REST REST REST REST REST
        Al2.5~4.5 Fe1.0~1.6   Si1~2
    Temperature Range for Components 5~500 5~500 5~45 10~80 10~80
    Density 8.88 8 8.44 8.7 8.4
    g/cm3
    Resistivity 0.48 0.49 0.47 0.35 0.44
    μΩ.m,20 ±0.03  ±0.03  ±0.03  ±0.05  ±0.04
    Extensibility ≥15 ≥15 ≥15 ≥15 ≥15
    %Φ0.5
    Resistance -40~+40 -80~+80 -3~+20 -5~+10 0~+40
    Temperature
    Quotiety
    α,10 -6 /
    Thermoelectromotive 45 2 1 2 2
    force to Copper
    μv/(0~100)




    Tpye of Bare Wire

    main

    property

    type



    Cuni1

    CuNI2

    CuNI6

    CuNi8

    CuNI10

    CuNi14

    CuNi19

    CuNi23

    CuNi30

    CuNi34

    CuNI44



    main

    chemical

    composition

    Ni

    1

    2

    6

    8

    10

    14.2

    19

    23

    30

    34

    44





    MN

    /

    /

    /

    /

    /

    0.3

    0.5

    0.5

    1.0

    1.0

    1.0





    CU

    rest

    rest

    rest

    rest

    rest

    rest

    rest

    rest

    rest

    rest

    rest



    max

    working

    temperature



    /

    200

    220

    250

    250

    300

    300

    300

    350

    350

    400



    density

    g/cm3



    8.9

    8.9

    8.9

    8.9

    8.9

    8.9

    8.9

    8.9

    8.9

    8.9

    8.9



    resistivity

    at 20 °c



    0.03 ± 10%

    0.05±

    10%

    0.10±

    10%

    0.12±

    10%

    0.15±

    10%

    0.20±

    5%

    0.25±

    5%

    0.30±

    5%

    0.35±

    5%

    0.40±

    5%

    0.49±

    5%



    temperature

    coefficient of

    resistance



    <100

    <120

    <60

    <57

    <50

    <38

    <25

    <16

    <10

    -0

    <-6



    tensile

    strength mpa



    >210

    >220

    >250

    >270

    >290

    >310

    >340

    >350

    >400

    >400

    >420



    elongation



    >25

    >25

    >25

    >25

    >25

    >25

    >25

    >25

    >25

    >25

    >25



    melting

    point °c



    1085

    1090

    1095

    1097

    1100

    1115

    1135

    1150

    1170

    1180

    1280



    coefficient of

    conductivity



    145

    130

    92

    75

    59

    48

    38

    33

    27

    25

    23



    Enamelled Manganin Resistance Wire for Precision Instrument , Enamelled Wire 0.018mm - 3.0mm

    Type Of Bare Alloy Wire

    The alloy we can do enamelled are Copper-nickel alloy wire,Constantan wire,Manganin wire. Kama Wire,NiCr Alloy wire,FeCrAl Alloy wire etc alloy wire

    Size:

    Round wire:0.018mm~3.0mm

    Color of enamel insulation:Red,Green,Yellow,Black,Blue,Nature etc.

    Ribbon Size:0.01mm*0.2mm~1.2mm*24mm

    Moq:5kg each size
