| Place of Origin: | China |
| Brand Name: | TANKII |
| Certification: | ISO9001 |
| Model Number: | 0Cr20Al3 |
| Minimum Order Quantity: | 20kg |
|---|---|
| Price: | negotiation |
| Packaging Details: | On Spool,In Coil |
| Delivery Time: | 5-10 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20, 000kg/month |
| High Light: | electrical heating wire,high temperature wire |
||
|---|---|---|---|

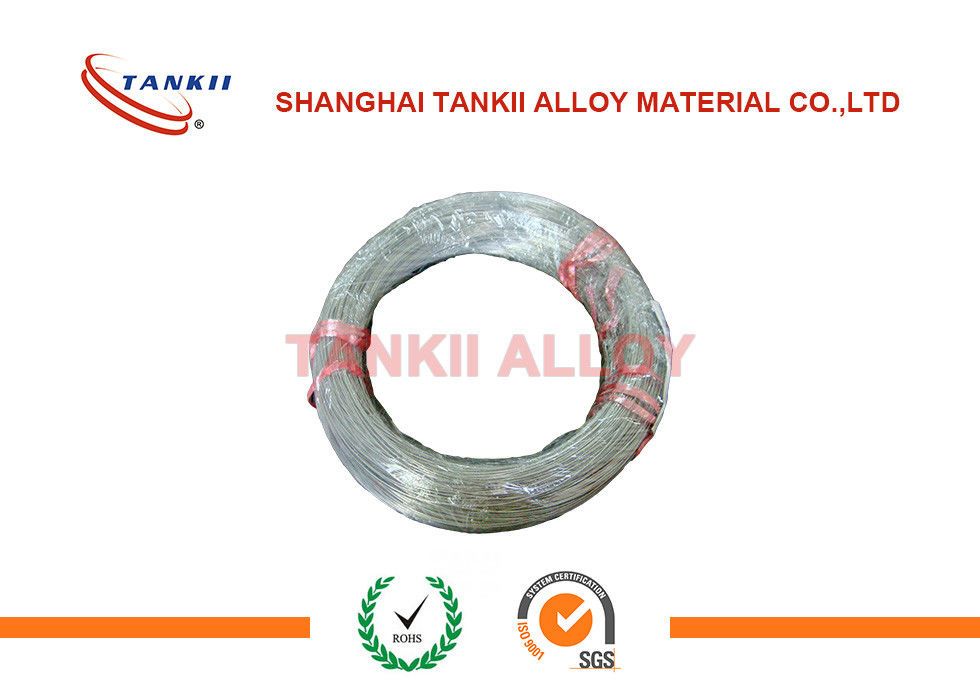

Excellent Oxidation Resistance 0Cr20Al3 , FeCrAl Alloy Electrical Heating Wire
0Cr20Al3
0Cr20Al3 alloys are characterized by excellent oxidation resistance and very good form stability resulting in long element life.
They are typically used in electrical heating elements in industrial furnaces and home appliances.
0Cr20Al3 alloy with high resistivity and serviceability temperature than that for NiCr alloy and also has lower price.
Forms:wire, bar, strip,sheet/plate,forging,tube/pipe,etc.
Manufacture Processs The manufacture started with producing ingot by advanced vacuum melting process. The wire production includes forging, rolling, annealing and drawing. From the ingot to the final thin wire, manufacture process is operated with high standard quality control system. There will be quality test for each batch of product, such as test to diameter tolerance, content, hardness, etc.
0Cr20Al3
Chemical Content, %
|
C |
P |
S |
Mn |
Si |
Cr |
Ni |
Al |
Fe |
Other |
|
|
Max |
||||||||||
|
0.08 |
0.025 |
0.020 |
0.50 |
≤0.7 |
18.0~21.0 |
≤0.60 |
3.0-4.2 |
Balance |
- |
|
Mechanical Properties
|
Max Continuous Service Temperature: Resisivity 20℃: Density: Thermal Conductivity: Coefficient of Thermal Expansion: Melting Point: Elongation: Micrographic Structure: Magnetic Property: |
1100℃ 1.23+/-0.07ohm mm2/m 7.35g/cm3 52.7 KJ/m·h·℃ 13.5×10-6/℃ (20℃~1000℃) 1500℃ Min 16% Ferrite magnetic |
Temperature Factor of Electrical Resistivity
|
20℃ |
100℃ |
200℃ |
300℃ |
400℃ |
500℃ |
600℃ |
|
1.000 |
1.011 |
1.025 |
1.042 |
1.061 |
1.085 |
1.120 |
|
|
||||||
|
700℃ |
800℃ |
900℃ |
1000℃ |
1100℃ |
1200℃ |
1300℃ |
|
1.142 |
1.154 |
1.164 |
1.172 |
1.180 |
1.185 |
- |
