Sealing Alloy 4J36 Invar 36Н / Fe-Ni36 Precision Alloy Service for Radio Industry

Sealing Alloy 4J36 Invar 36Н / Fe-Ni36 Precision Alloy Service for Radio Industry

    • Sealing Alloy 4J36 Invar 36Н / Fe-Ni36 Precision Alloy Service for Radio Industry
    • Sealing Alloy 4J36 Invar 36Н / Fe-Ni36 Precision Alloy Service for Radio Industry
    • Sealing Alloy 4J36 Invar 36Н / Fe-Ni36 Precision Alloy Service for Radio Industry

    Product Details:

    Place of Origin: China
    Brand Name: Sealing Alloy 4J36
    Certification: ISO 9001 and RoHS
    Model Number: 4J36 / Invar / 36Н / Fe-Ni36

    Payment & Shipping Terms:

    Minimum Order Quantity: 25~30 KG
    Price: USD 20~80$/ KG
    Packaging Details: Waterproof paper, Carton and Wooden Case
    Delivery Time: 25~30 days
    Payment Terms: T/T, Western Union, Paypal
    Supply Ability: 30000KG per month
    Contact Now
    Detailed Product Description
    Shape: Foil, Stirp, Wire, Sheet, Bar Condition: Bright/ Oxidized; Soft/ Hard
    Standard: YB/T5241-2005 / ГОСТ 14080-78

    Sealing Alloy 4J36 ( Invar ) 36Н / Fe-Ni36 Precision Alloy Service for Radio Industry , Precision Instruments



    Application: Require dimensionally stable variety of instruments, instrument parts; Bimetallic passive layer



    Feature: 4J36 is a typical low expansion alloy; Long-term use by the aviation factory, stable performance. Mainly for the manufacture in the temperature range approximately constant element sizes



    Chemical composition(%)



    Grade

    C

    Si

    Mn

    P

    S

    Ni

    Fe

    4J36

    ≤0.05

    ≤ 0.3

    0.2~0.6

    ≤0.02

    ≤0.02

    35~37

    Bal.



    Physical properties

    • Density (g/cm3): 8.1
    • Elastic Modulus, E: 144 GPa
    • Mean Coefficient of Thermal Expansion (10-6/℃): 7.8 (20~400℃); 8.9 (20~450℃)
    • Curie point (℃): 230
    • Electrical resistivity (μΩ*cm): 78 (20℃)
    • Specific heat (J/kg*℃): 515
    • Thermal conductivity ( W/m. ℃): 11



    Mechanical properties





    Yield Strength (Mpa)

    Tensile Strength (Mpa)

    Elongation, %

    Hardness, HV

    4J36

    As annealed

    268

    450

    35

    140

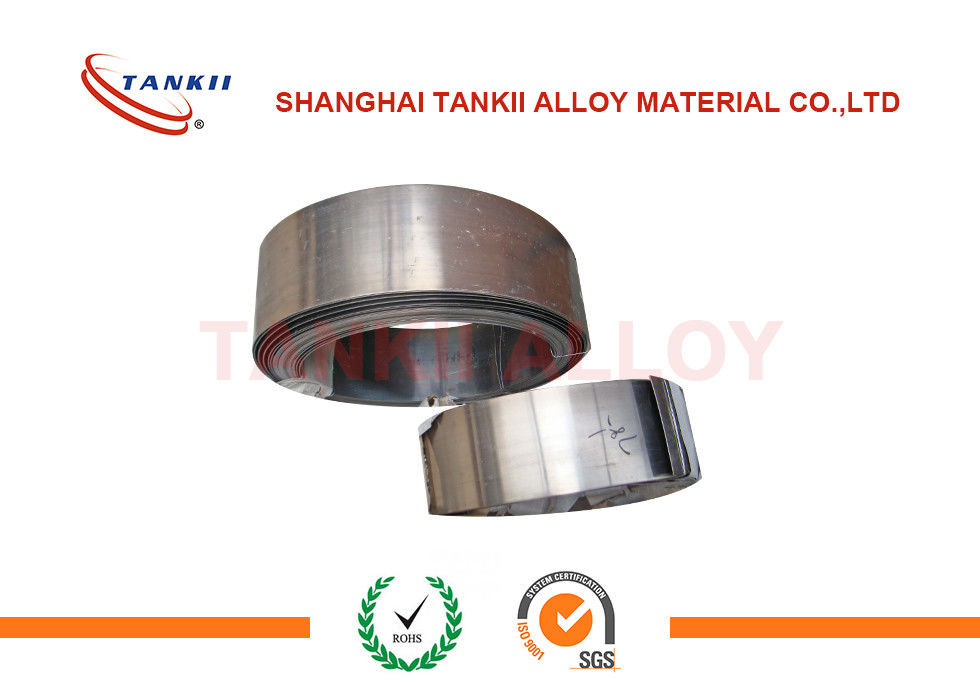

    Specifications

    Grade

    4J36- Strip

    Thickness

    0.01~5mm

    Width

    4~250mm

    Weight of coil

    2-50 kgs

    Condition

    Soft/ Hard; Bright/ Oxidized





    Sealing Alloy 4J36 Invar 36Н / Fe-Ni36 Precision Alloy Service for Radio Industry
