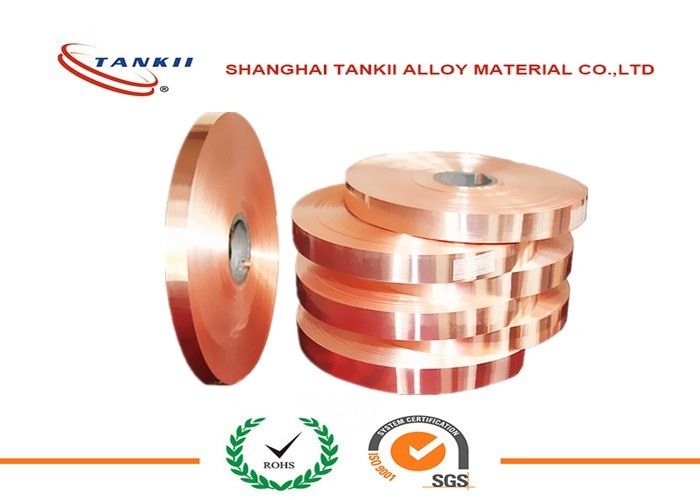

Corrosion-resistance Copper ETP Foil 0.075mm * 21mm Use for Commutators / Traction Motors

Name: Corrosion-resistance Copper ETP Foil 0.075mm * 21mm Use for Commutators / Traction Motors
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: C11000
Price: 8.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: TANKII

Certification: ISO,ROHS

Model Number: C11000

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Price: USD+ 7-9.8+ KG

Packaging Details: in roll,woodencase outside

Payment Terms: L/C, T/T, Western Union

Supply Ability: 600,000kg/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                          copper metal sheet, pure copper foil


Color:	Red	Material:	Pure Copper
Purity:	99.90%min

Color:	Red
Material:	Pure Copper
Purity:	99.90%min

Description

Corrosion-resistance Copper ETP Foil 0.075mm * 21mm Use for Commutators / Traction Motors

Corrosion-resistance Copper ETP Foil 0.075mm * 21mm Use for Commutators / Traction Motors

Specifications of copper strip:

1) Thickness: 0.005mm- 2.5mm

2) Width: 610mm max. Coil weight: 10ton Max
3) Trial order accept.
4) Grade: UNS:C1100 EN:Cu-ETP EUR CW004A

Chemical Composition

Cu(wt.%)>99.9%

O(wt.%)0.005-0.04

Mechanical Properties

Alloy No		Temper		Mechanical Properties
Alloy No		Temper		Tensile strength(N/mm²)		Elongation(%)		Vickers hardess(hv)
GB	JIS	GB	JIS	GB	JIS	GB	JIS	GB	JIS
T2	C1100	M	O	≥195	≥195	≥30	≥30	≤70	-
		Y4	1/4H	215-275	215-285	≥25	≥20	60-90	55-100
		Y2	1/2H	245-345	235-315	≥8	≥10	80-110	75-120
		Y	H	295-380	≥275	≥3	-	90-120	≥80
		T	EH	≥350	-	-	-	≥110	-
		TY	SH	-	-	-	-	-	-

Features for copper strip:
1) Enjoy good electricity and heat conduction
2) Elongation
3) Good corrosion-resistance
4) Climate-hardiness

Applications for copper strip:

1) Commutators
2) Traction Motors
3) Earthening
4) Switchgear Products
5) Railway Electrification
6) Electrical Components
7) Panel Boards
8) Power Transformers
9) Connectors
