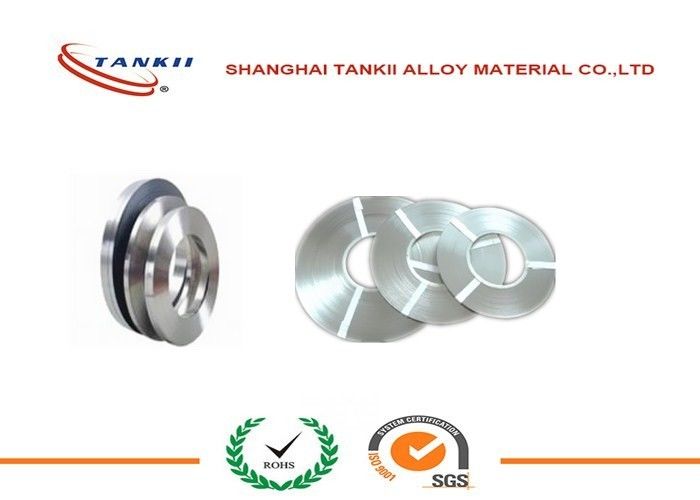

Purity > 99.6 % 0.005mm Thickness Pure Nickel Foil , Width 0.2mm Nickel Coil

Purity > 99.6 % 0.005mm Thickness Pure Nickel Foil , Width 0.2mm Nickel Coil

    • Purity > 99.6 % 0.005mm Thickness Pure Nickel Foil , Width 0.2mm Nickel Coil
    • Purity > 99.6 % 0.005mm Thickness Pure Nickel Foil , Width 0.2mm Nickel Coil
    • Purity > 99.6 % 0.005mm Thickness Pure Nickel Foil , Width 0.2mm Nickel Coil
  • Purity > 99.6 % 0.005mm Thickness Pure Nickel Foil , Width 0.2mm Nickel Coil

    Product Details:

    Place of Origin: China
    Brand Name: TANKII
    Certification: ISO,ROHS
    Model Number: Pure Ni

    Payment & Shipping Terms:

    Minimum Order Quantity: 10KG
    Packaging Details: in roll, wooden case outside
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 1,000/Month
    Contact Now
    Detailed Product Description
    Grade: : Pure Nickel 99.6% Standard: : ASTM B162
    Width: : Up To 1500mm Wide Thickness: 0.002mm~2.5mm
    Free Sample: :Available Powder Or Not: : Not Powder

    Purity > 99.6 % 0.005mm Thickness Pure Nickel Foil , Width 0.2mm Nickel Coil



    Product Description

         Pure Nickel Strip is primarily used for chemical treatment, preservation and production of synthetic fiber materials. The Pure Nickel strip can be operated up to 600̊F.  It has outstanding magnetic properties and thermal and electrical conductivity.

         Pure Nickel strip can be used as cathode tap, cell connector of nickel metal hydride battery, nickel cadmiumbattery and lithium battery. It is also used as the pin of PTC devices and Electric vacuum components.

    1. pure nickel foil for sale
    2. Purity: more than 99.5%
    3. Thickness: 0.005-2mm
    4. Standard: ASTM B162
    5. MOQ: 5 kilogram



    Specification of Pure Nickel Strip:

    Strip Size

    Thickness – 0.005mm above, Width- 0.2mm above



    Chemical Composition of Pure Nickel Strip:

    Nickel

    99.6%

    Copper

    0.25%

    Iron

    0.40%

    Manganese

    0.35%

    Carbon

    0.15%

    Silicon

    0.35%

    Sulfur

    0.01%



    Physical properties of Pure Nickel Strip:

    Density, g/cm3

    8.89

    Melting Range, °C

    1435-1446

    Specific Heat, J/kg•°C

    456

    Curie Temperature, °C

    360





    Nickel Strip Chemical requirements

    Grade

    Ni+Co

    Cu

    Si

    Mn

    C

    Mg

    S

    P

    Fe

    N4

    99.9

    0.015

    0.03

    0.002

    0.01

    0.01

    0.001

    0.001

    0.04

    N6

    99.6

    0.10

    0.10

    0.05

    0.10

    0.10

    0.005

    0.002

    0.10

    Ni201

    99.0

    0.25

    0.35

    0.35

    0.02

      /

    0.01

    /

    0.40

    Ni200

    99.0

    0.20

    0.30

    0.30

    0.15

    /

    0.01

    /

    0.40



    Nickel Strip Product Precision



    Thickness

    Thickness allowance

    Burr height

    Width scope and tolerance

    2≤w<10

    10≤w<50

    50≤w<100

    100≤w<150

    150≤w<200

    200≤w

    0.02≤t<0.05

    ±0.003

    0.005

    ±
    0.05

    ±0.10

    ±0.15

    ±0.20

    ±0.30

    ±0.50

    0.05≤t<0.1

    ±0.005

    0.01

    0.1≤t<0.2

    ±0.008

    0.015

    0.2≤t<0.3

    ±0.012

    0.02

    0.3≤t<0.4

    ±0.015

    0.03

    ±
    0.10

    ±0.15

    ±0.25

    ±0.50

    ±0.80

    ±1.00

    0.4≤t<0.6

    ±0.025

    0.05

    0.6≤t<0.8

    ±0.030

    0.06

    ±
    0.30

    ±0.40

    ±0.50

    ±0.50

    ±0.80

    ±1.00

    0.8≤t<1.0

    ±0.040

    1.0≤t<1.2

    ±0.050

    0.08

    ±
    0.50

    ±0.50

    ±0.80

    ±1.00

    ±1.00

    ±1.50

    1.2≤t<1.4

    ±0.060

    1.4≤t<1.7

    ±0.070

    0.10

    1.7≤t<2.0

    ±0.080





    Purity > 99.6 % 0.005mm Thickness Pure Nickel Foil , Width 0.2mm Nickel Coil

    Properties of Pure Nickel Strip:

    1.  Higher electrical conductance
    2.  Raised Curie Temperature
    3.  Superior Magnetostrictive Properties
    4.  Excellent thermal conductivity



    Applications of Nickel 200 Strip:

    1.  Manufacturing artificial synthetic fibers.
    2.  Chemical Treatment and Preservation.
    3.  Aerospace Industry.
    4.  Cathode tap
    5.  Cell connector
