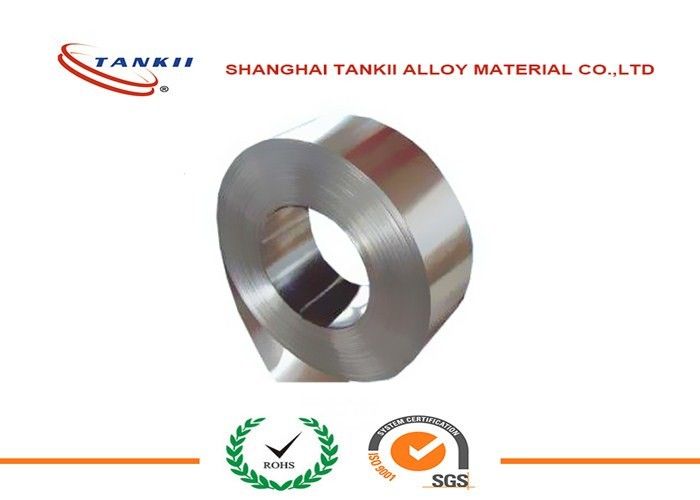

Nickel Foil / nickel Coil Purity > 99.5% 0.01mm * 30mm for Electronic Industry

Nickel Foil / nickel Coil Purity > 99.5% 0.01mm * 30mm for Electronic Industry

    • Nickel Foil / nickel Coil Purity > 99.5% 0.01mm * 30mm for Electronic Industry
    • Nickel Foil / nickel Coil Purity > 99.5% 0.01mm * 30mm for Electronic Industry
    • Nickel Foil / nickel Coil Purity > 99.5% 0.01mm * 30mm for Electronic Industry
  • Nickel Foil / nickel Coil Purity > 99.5% 0.01mm * 30mm for Electronic Industry

    Product Details:

    Place of Origin: China
    Brand Name: TANKII
    Certification: ISO,ROHS
    Model Number: Pure Ni

    Payment & Shipping Terms:

    Minimum Order Quantity: 20KG
    Packaging Details: in roll, wooden case outside
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 10,000/Month
    Contact Now
    Detailed Product Description
    Ni (Min): : 99.6% Min Application: : Electronic Industry
    Type: Strip Standard: : ASTM B162
    Free Sample: :Available Surface: :Bright

    Nickel Foil / nickel Coil Purity > 99.5% 0.01mm * 30mm for Electronic Industry





    Product Description

          Pure Nickel strip can be used as cathode tap, cell connector of nickel metal hydride battery, nickel cadmiumbattery and lithium battery. It is also used as the pin of PTC devices and Electric vacuum components.





    Specification of Pure Nickel Strip:

    Strip Size

    Thickness – 0.002mm above, Width- 0.2mm above





    Chemical Composition of Pure Nickel Strip:

    Nickel

    99.6%

    Copper

    0.25%

    Iron

    0.40%

    Manganese

    0.35%

    Carbon

    0.15%

    Silicon

    0.35%

    Sulfur

    0.01%





    Physical properties of Pure Nickel Strip:

    Density, g/cm3

    8.89

    Melting Range, °C

    1435-1446

    Specific Heat, J/kg•°C

    456

    Curie Temperature, °C

    360



    Nickel Foil / nickel Coil Purity > 99.5% 0.01mm * 30mm for Electronic Industry

    Nickel Strip Capabilities

    Grade

    Pure Nickel Strip 99.6% / 99.9%

    Thickness

    0.02 to 2.50 mm

    Tolerances

    +/- 5% (special tolerances is available)

    Width

    Up to 350mm wide

    Coil size

    Up to 80 kg without welds

    Temper Ranges

    Annealed to Full Hard

    Nickel Strip Chemical requirements

    Grade

    Ni+Co

    Cu

    Si

    Mn

    C

    Mg

    S

    P

    Fe

    N4

    99.9

    0.015

    0.03

    0.002

    0.01

    0.01

    0.001

    0.001

    0.04

    N6

    99.6

    0.10

    0.10

    0.05

    0.10

    0.10

    0.005

    0.002

    0.10

    Ni201

    99.0

    0.25

    0.35

    0.35

    0.02

      /

    0.01

    /

    0.40

    Ni200

    99.0

    0.20

    0.30

    0.30

    0.15

    /

    0.01

    /

    0.40



    Nickel Strip Product Precision



    Thickness

    Thickness allowance

    Burr height

    Width scope and tolerance

    2≤w<10

    10≤w<50

    50≤w<100

    100≤w<150

    150≤w<200

    200≤w

    0.02≤t<0.05

    ±0.003

    0.005

    ±
    0.05

    ±0.10

    ±0.15

    ±0.20

    ±0.30

    ±0.50

    0.05≤t<0.1

    ±0.005

    0.01

    0.1≤t<0.2

    ±0.008

    0.015

    0.2≤t<0.3

    ±0.012

    0.02

    0.3≤t<0.4

    ±0.015

    0.03

    ±
    0.10

    ±0.15

    ±0.25

    ±0.50

    ±0.80

    ±1.00

    0.4≤t<0.6

    ±0.025

    0.05

    0.6≤t<0.8

    ±0.030

    0.06

    ±
    0.30

    ±0.40

    ±0.50

    ±0.50

    ±0.80

    ±1.00

    0.8≤t<1.0

    ±0.040

    1.0≤t<1.2

    ±0.050

    0.08

    ±
    0.50

    ±0.50

    ±0.80

    ±1.00

    ±1.00

    ±1.50

    1.2≤t<1.4

    ±0.060

    1.4≤t<1.7

    ±0.070

    0.10

    1.7≤t<2.0

    ±0.080



    Nickel Foil / nickel Coil Purity > 99.5% 0.01mm * 30mm for Electronic Industry


    What are the characteristics of Nickel Strip?

    • High degree of electrical conductivity
    • Low electrical resistivity
    • Excellent surface and slit edge conditions
    • Enhanced solderability as a result of low surface oxides
    • Excellent formability with deep draw characteristics with reduced die wear
    • Resistance to grain growth



    In what applications is Nickel Strip used?

    • Rechargeable Batteries (Nickel Metal Hydride, Lithium Ion)
    • Metal Stampings
    • Lead Frames
    • Gaskets and Seals
    • Lighting Applications
    • Superconductor Applications
    • Weld Wire
