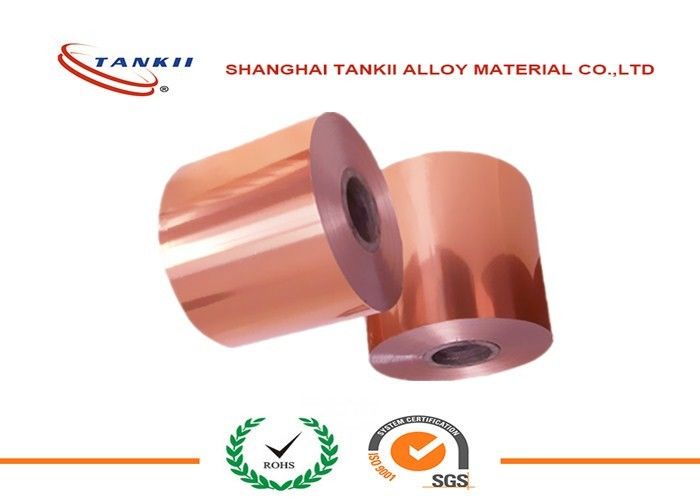

0.05mm * 350mm Foil for Panel Boards Pure Copper Sheet EN Cu-ETP EUR CW004A Grade

0.05mm * 350mm Foil for Panel Boards Pure Copper Sheet EN Cu-ETP EUR CW004A Grade

    • 0.05mm * 350mm Foil for Panel Boards Pure Copper Sheet EN Cu-ETP EUR CW004A Grade
    • 0.05mm * 350mm Foil for Panel Boards Pure Copper Sheet EN Cu-ETP EUR CW004A Grade
    • 0.05mm * 350mm Foil for Panel Boards Pure Copper Sheet EN Cu-ETP EUR CW004A Grade
  • 0.05mm * 350mm Foil for Panel Boards Pure Copper Sheet EN Cu-ETP EUR CW004A Grade

    Product Details:

    Place of Origin: China
    Brand Name: TANKII
    Certification: ISO,ROHS
    Model Number: C11000

    Payment & Shipping Terms:

    Minimum Order Quantity: 20kg
    Packaging Details: in roll,woodencase outside
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 600,000kg/Month
    Contact Now
    Detailed Product Description
    Color: Red Purity: 99.90%min
    Sample: Free Thickness: 0.01-5mm

    0.05mm * 350mm Foil for Panel Boards Pure Copper Sheet EN Cu-ETP EUR CW004A Grade





    Specifications of copper strip:

    1) Thickness: 0.005mm- 2.5mm

    2) Width: 610mm max. Coil weight: 10ton Max
    3) Trial order accept.
    4) Grade: UNS:C1100 EN:Cu-ETP EUR CW004A




    Chemical Composition

    Cu(wt.%)>99.9%

    O(wt.%)0.005-0.04





    Mechanical Properties

    Alloy No

       Temper

    Mechanical Properties

     Tensile strength(N/mm2)

     Elongation(%)

     Vickers hardess(hv)

     GB

     JIS

     GB

     JIS

     GB

     JIS

     GB

     JIS

     GB

     JIS

        T2

      C1100

     M

     ≥195

     ≥195

     ≥30

     ≥30

     ≤70

     -

     Y4

     1/4H

     215-275

     215-285

     ≥25

     ≥20

     60-90

     55-100

     Y2

     1/2H

     245-345

     235-315

     ≥8

     ≥10

     80-110

     75-120

     Y

     H

     295-380

     ≥275

     ≥3

     -

     90-120

     ≥80

     T

     EH

     ≥350

     -

     -

     -

     ≥110

     -

     TY

     SH

     -

    -





    Features for copper strip:
    1)  Enjoy good electricity and heat conduction
    2)  Elongation
    3)  Good corrosion-resistance
    4)  Climate-hardiness





    Applications for copper strip:

    1)  Commutators
    2)  Traction Motors
    3)  Earthening
    4)  Switchgear Products
    5)  Railway Electrification
    6)  Electrical Components
    7)  Panel Boards
    8)  Power Transformers
    9)  Connectors
