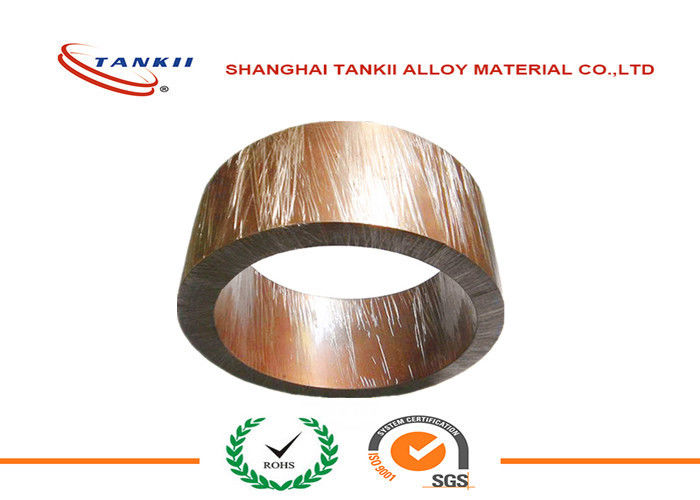

Strip Soft Bright Shunt Manganin Alloy of Copper and Nickel 1mm * 10mm for Shunt Resistance

Strip Soft Bright Shunt Manganin Alloy of Copper and Nickel 1mm * 10mm for Shunt Resistance

    • Strip Soft Bright Shunt Manganin Alloy of Copper and Nickel 1mm * 10mm for Shunt Resistance
    • Strip Soft Bright Shunt Manganin Alloy of Copper and Nickel 1mm * 10mm for Shunt Resistance
    • Strip Soft Bright Shunt Manganin Alloy of Copper and Nickel 1mm * 10mm for Shunt Resistance
    • Strip Soft Bright Shunt Manganin Alloy of Copper and Nickel 1mm * 10mm for Shunt Resistance
  • Strip Soft Bright Shunt Manganin Alloy of Copper and Nickel 1mm * 10mm for Shunt Resistance

    Product Details:

    Place of Origin: China
    Brand Name: TANKII
    Certification: ISO
    Model Number: Shunt Manganin

    Payment & Shipping Terms:

    Minimum Order Quantity: 20kg
    Packaging Details: In roll.coil in side,wooden case outside
    Payment Terms: T/T, , L/C, Western Union
    Contact Now
    Detailed Product Description
    Conductor Material: : Copper Based Type: Bare Wire
    Conductor Type: Solid Shape: :Round
    Free Sample: : Available Quality Control: : Sample Testing Ordered

    Strip Soft Bright Shunt Manganin Alloy of Copper and Nickel 1mm * 10mm for Shunt Resistance





    Product Description

    Shunt Manganin widely used for Shunt resistor with the highest requirements, shunt manganin has been used in precision built electrical components such as Wheatstone bridges, decade boxes, voltage drivers, potentiometers and resistance standards.





    Chemical Content, %

    Ni

    Mn

    Fe

    Si

    Cu

    Other

    ROHS Directive

    Cd

    Pb

    Hg

    Cr

    2~5

    11~13

    <0.5

    micro

    Bal

    -

    ND

    ND

    ND

    ND





    Mechanical Properties

    Max Continuous Service Temp

    0-100℃

    Resisivity at 20℃

    0.44±0.04ohm mm2/m

    Density

    8.4 g/cm3

    Thermal Conductivity

    40 KJ/m·h·℃

    Temp Coefficient of Resistance at 20 ºC

    0~40α×10-6/ºC

    Melting Point

    1450℃

    Tensile Strength(Hard)

    585 Mpa(min)

    Tensile Strength,N/mm2   Annealed,Soft

    390-535

    Elongation

    6~15%

    EMF vs Cu, μV/ºC (0~100ºC)

    2(max)

    Micrographic Structure

    austenite

    Magnetic Property

    non

    Hardness

    200-260HB

    Micrographic Structure

    Ferrite

    Magnetic Property

    Magnetic



    Resistance Alloy– Shunt Manganin Sizes / Temper Capabilities

    1.  Condition: Bright, Annealed, Soft
    2.  Wire &Ribbon diameter 0.02mm-1.0mm packing in spool, big than 1.0mm packing in coil
    3.  Rod, Bar diameter 1mm-30mm
    4.  Strip: Thickness 0.01mm-7mm, Width 1mm-280mm
    5.  Also enameled condition is available

    Strip Soft Bright Shunt Manganin Alloy of Copper and Nickel 1mm * 10mm for Shunt Resistance



    FAQ



    Q1.Do you attend exhibition every year?



    A .Yes



    Q2.Is there any discount of the nickel wire?



    A.  Yes. Bigger quantity will get lower discount.



    Q3.Information needed if I want a quotation?



    A  Name, Standard, Material Grade(Chemical Composition), Size Quantity, Weight.



    Q4. Can we visit your company/factory before place the order?



    A. Yes. Welcome anytime



    Q5: How does your factory do regarding quality control?



    A. Quality is priority. We always attach great importance to quality controlling from beginning to end.
