Product Details
Place of Origin: China Mainland
Brand Name: TANKII
Certification: ISO9001
Model Number: 0cr25al5
Payment & Shipping Terms
Minimum Order Quantity: 20 kg
Price: Negotiable
Packaging Details: Carton case
Delivery Time: 7~20 days after getting the payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 tons/year
MOQ: |
5kg |
Package: |
On Bobbin, Carton Box |
Leading Time: |
15 Days |
Application: |
Resistor, Heating Elements |
MOQ: |
5kg |
Package: |
On Bobbin, Carton Box |
Leading Time: |
15 Days |
Application: |
Resistor, Heating Elements |
General Description

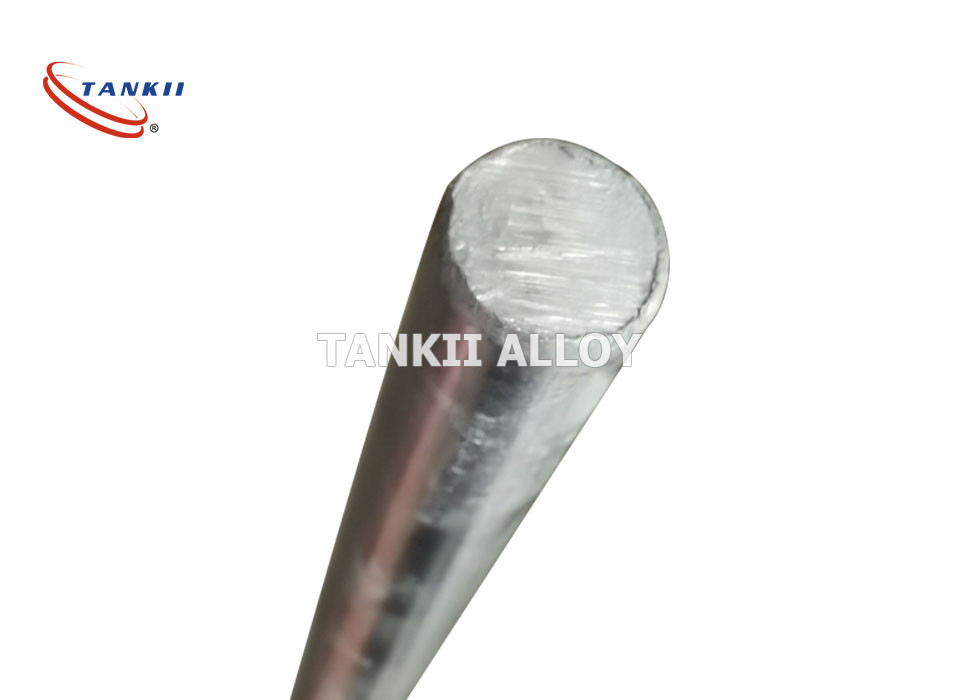

FeCrAl alloy is made by a high-temperature, ferritic iron-chromium-aluminium alloy which can be used at temperatures up to 1350degrees. Typical applications for 0Cr21Al6Nb are as electrical heating elements in high-temperature furnaces in the heat treating, ceramics, glass, steel, and electronics industries.
Feature:
With long service life.Heating up fast.High thermal efficiency.Temperature uniformity. Can use vertically. When being used in the rated voltage,there is no volatile matter.It is an environmental protection electric heating wire. And an alternative to the costly nichrome wire.Can be customized according to customer requirements
Normal composition%
C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
Max | |||||||||
0.06 | 0.025 | 0.025 | 0.70 | Max 0.60 | 23.0~26.0 | Max 0.60 | 4.5~6.5 | Bal. | - |
Typical Mechanical properties(1.0mm)
Yield strength | Tensile Strength | Elongation |
Mpa | Mpa | % |
500 | 700 | 23 |
Typical Physical properties
Density (g/cm3) | 7.10 |
Electrical resistivity at 20ºC(Om*mm2/m) | 1.42 |
Conductivity coefficient at 20ºC (WmK) | 13 |
Coefficient of thermal expansion | |
Temperature | Coefficient of Thermal Expansion x10-6/ºC |
20 ºC- 1000ºC | 15 |
Specific heat capacity | |
Temperature | 20ºC |
J/gK | 0.46 |
Melting point (ºC) | 1500 |
Max continuous operating temperature in air (ºC) | 1250 |
Magnetic properties | non-magnetic |
Temperature Factor of Electrical Resistivity
20ºC | 100ºC | 200ºC | 300ºC | 400ºC | 500ºC | 600ºC | 700ºC | 800ºC | 900ºC | 1000ºC | 1100ºC | 1200ºC | 1300ºC |
1 | 1.002 | 1.005 | 1.008 | 1.013 | 1.021 | 1.030 | 1.038 | 1.040 | 1.042 | 1.044 | 1.046 | 1.047 |
The feature of our resistance alloy products :composition uniformity,high resistivity,accurate size,long service life,we can do all kinds of spiral shape wire accordding to your drawings,and our engineers will give you reasonable advices.They are widely used in small electric furnace,muffle furnace,all kinds of ovens,heating air-condition equipment,electrical heated tube,and home appliances etc.
Package of resistance wire :
Remark:
Please call me at +86-18017457857 or email (lisa@tankii.com) to me for more information on FeCrAl products.
