0Cr25Al5 FeCrAl Alloy Oxidized Surface Electric Resistance Wire

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO 9001

Model Number: 0Cr25Al5

Payment & Shipping Terms

Minimum Order Quantity: 50kg

Packaging Details: spool,coil

Delivery Time: 5-30 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 2000kg/month

Get Best Price
Contact Now
Specifications
Highlight:

0Cr25Al5 FeCrAl Alloy

,

Oxidized Surface Electric Resistance Wire

,

0.05mm Electric Resistance Wire

Application:
Heating,Industry,furnace Heating Wire
Shape:
Strip,wire
Material:
Iron-Chromium-Aluminium Alloy
Chemical Composition:
Fe Cr Al
Dimensions:
0.05-12mm
Surface:
Acid White/oxidized
Size:
Customzied
Certificate:
ISO 9001
Application:
Heating,Industry,furnace Heating Wire
Shape:
Strip,wire
Material:
Iron-Chromium-Aluminium Alloy
Chemical Composition:
Fe Cr Al
Dimensions:
0.05-12mm
Surface:
Acid White/oxidized
Size:
Customzied
Certificate:
ISO 9001
Description

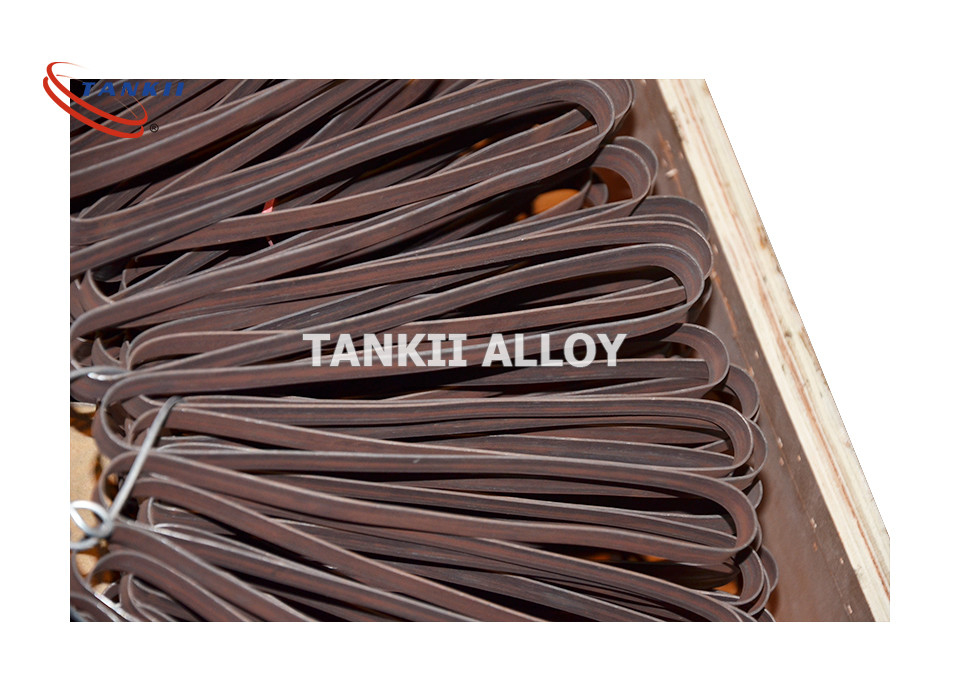

0Cr25Al5 FeCrAl Alloy Oxidized Surface Electric Resistance Wire

0Cr25Al5 Oxidized Surface Electrictrical Resistance Heating Alloys FeCrAl Wire Used In Furnace



Product Description

Tankii 0Cr25Al5 is one kind of normal material of Fe-Cr-Al alloy.
FeCrAl alloy has the characteristic of high resistivity,low temperature resistance coefficient,high operating temperature,good anti-oxidation and anti-corrosion under high temperature.
It is widely used in industrial furnace, household appliances, industry furnace, metallurgy, machinery, aircraft, automotive, military and other industries producing heating elements and resistance elements.

Size dimension range:
Wire: 0.01-10mm
Ribbons: 0.05*0.2-2.0*6.0mm
Strip: 0.05*5.0-5.0*250mm
Bar:10-50mm
FeCrAl alloy series: OCr15Al5,1Cr13Al4, 0Cr21Al4, 0Cr21Al6, 0Cr23Al5, 0Cr25Al5, 0Cr21Al6Nb,0Cr27Al7Mo2, and etc.





Alloy Nomenclature Performance 1Cr13Al4 0Cr25Al5 0Cr21Al6 0Cr23Al5 0Cr21Al4 0Cr21Al6Nb 0Cr27Al7Mo2
Main Chemical composition Cr 12.0-15.0 23.0-26.0 19.0-22.0 20.5-23.5 18.0-21.0 21.0-23.0 26.5-27.8
Al 4.0-6.0 4.5-6.5 5.0-7.0 4.2-5.3 3.0-4.2 5.0-7.0 6.0-7.0
Re opportune opportune opportune opportune opportune opportune opportune
Fe Rest Rest Rest Rest Rest Rest Rest
            Nb0.5 Mo1.8-2.2
Max. continuous service temp. of element(°C) 950 1250 1250 1250 1100 1350 1400
Resistivity at 20ºC(μΩ·m) 1.25 1.42 1.42 1.35 1.23 1.45 1.53
Density(g/cm3) 7.4 7.1 7.16 7.25 7.35 7.1 7.1
Thermal conductivity(KJ/m·h·ºC) 52.7 46.1 63.2 60.2 46.9 46.1 --
Coefficient of lines expansion(α×10-6/ºC) 15.4 16 14.7 15 13.5 16 16
Melting point approx.( ºC) 1450 1500 1500 1500 1500 1510 1520
Tensile strength(N/mm2) 580-680 630-780 630-780 630-780 600-700 650-800 680-830
Elongation at rupture(%) >16 >12 >12 >12 >12 >12 >10
Variation of area(%) 65-75 60-75 65-75 65-75 65-75 65-75 65-75
Repeat Bending frequency(F/R) >5 >5 >5 >5 >5 >5 >5
Hardness(H.B.) 200-260 200-260 200-260 200-260 200-260 200-260 200-260
continuous service time(Hours/ ºC) -- ≥80/1300 ≥80/1300 ≥80/1300 ≥80/1250 ≥50/1350 ≥50/1350
Micrographic structure Ferrite Ferrite Ferrite Ferrite Ferrite Ferrite Ferrite
Magnetic properties Magnetic Magnetic Magnetic Magnetic Magnetic Magnetic Magnetic


0Cr25Al5 FeCrAl Alloy Oxidized Surface Electric Resistance Wire 0
