Oxidized Surface FeCrAl Wire Heat Resistance For Electric Furnace

Product Details

Place of Origin: CHINA

Brand Name: Tankii

Certification: ISO 9001

Model Number: FeCrAl

Payment & Shipping Terms

Minimum Order Quantity: 50kg

Packaging Details: spool,coil

Delivery Time: 5-30 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 2000kg/month

Get Best Price
Contact Now
Specifications
Highlight:

Oxidized Surface FeCrAl Wire

,

Electric Furnace FeCrAl Wire

,

Heat Resistance FeCrAl Wire

Material:
Fe-Cr-Al
Surface:
Oxidized Surface
Size:
Thick Wire
Application:
Electric Furnace
Material:
Fe-Cr-Al
Surface:
Oxidized Surface
Size:
Thick Wire
Application:
Electric Furnace
Description

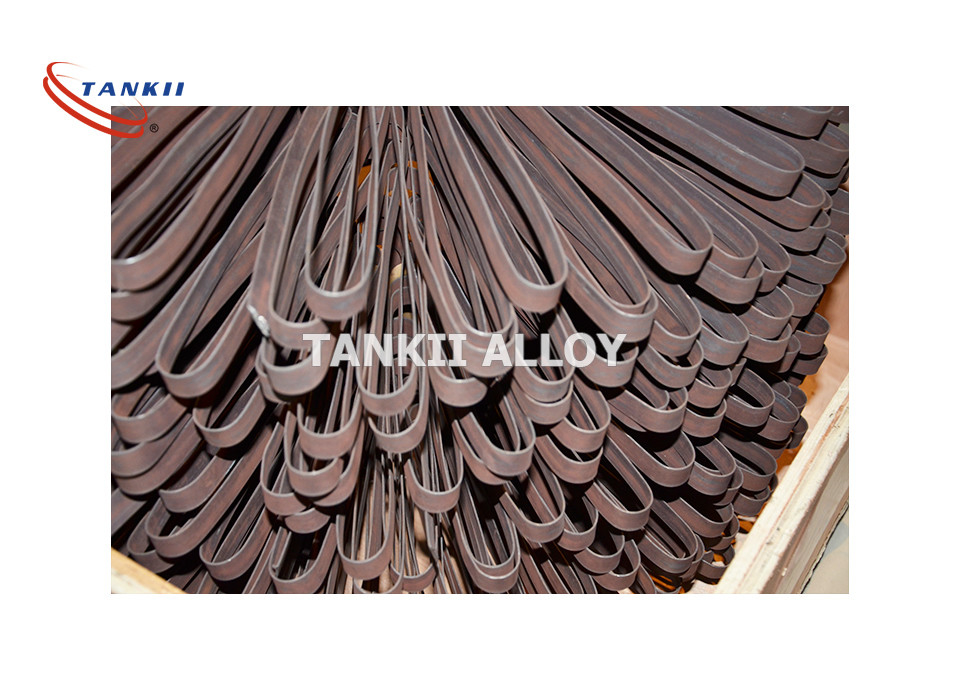

Oxidized Surface FeCrAl Wire Heat Resistance For Electric Furnace

FeCrAl wire Oxidized surface used in Electric furnace 1300°C



Resistance Alloy Wires is used for electrical heating element. Widely used in metallurgy, industrial stoves, household appliances, machinery and electronics manufacturing industries do heat resistance material.

FeCrAl Electrictrical Resistance Heating alloys with high electrical resistivity, temperature coefficient of resistance is
small, high operating temperature. good corrosion resistance under high temperature, and particularly suitable for use in a gas containing sulfur and sulfides, low price, it is widely used in industrial electric furnace, household appliances, far infrared device ideal heating material.

FeCrAl type:1Cr13AI4, 0Cr21AI4, 0Cr21AI6, 0Cr25AI5, 0Cr21AI6 Nb, 0Cr27AI7Mo2 etc.Series electric flat belt, electric fire wire



Round wire dia.0.05—12mm;
flat strip thickness0.03—5mm,flat strip width0.2—500mm.
Grades
1Cr13AL4
1Cr21AL4
0Cr21AL6
0Cr23AL5
0Cr25AL5
0Cr21AL6Nb
0Cr27AL7Mo2
Main chemical composition%
Cr
12.0-15.0
17.0-21.0
19.0-22.0
20.0-23.5
23.0-26.0
21.0-23.0
26.5-27.8
AI
4.0-6.0
2.0-4.0
5.0-7.0
4.2-5.3
4.5-6.5
5.0-7.0
6.0-7.0
Fe
balance
balance
balance
balance
balance
balance
balance
Re
appropriate
appropriate
appropriate
appropriate
appropriate
appropriate
appropriate
Components maximum use temperature
950
1100
1250
1250
1250
1350
1400
Melting point
1450
1500
1500
1500
1500
1510
1520
Density g/cm3
7.4
7.35
7.16
7.25
7.1
7.1
7.1
Resistivity μΩ·m,20
1.25±0.08
1.23±0.06
1.42±0.07
1.35±0.06
1.42±0.07
1.45±0.07
1.53±0.07
Tensile strength Mpa
588-735
637-784
637-784
637-784
637-784
637-784
686-784
