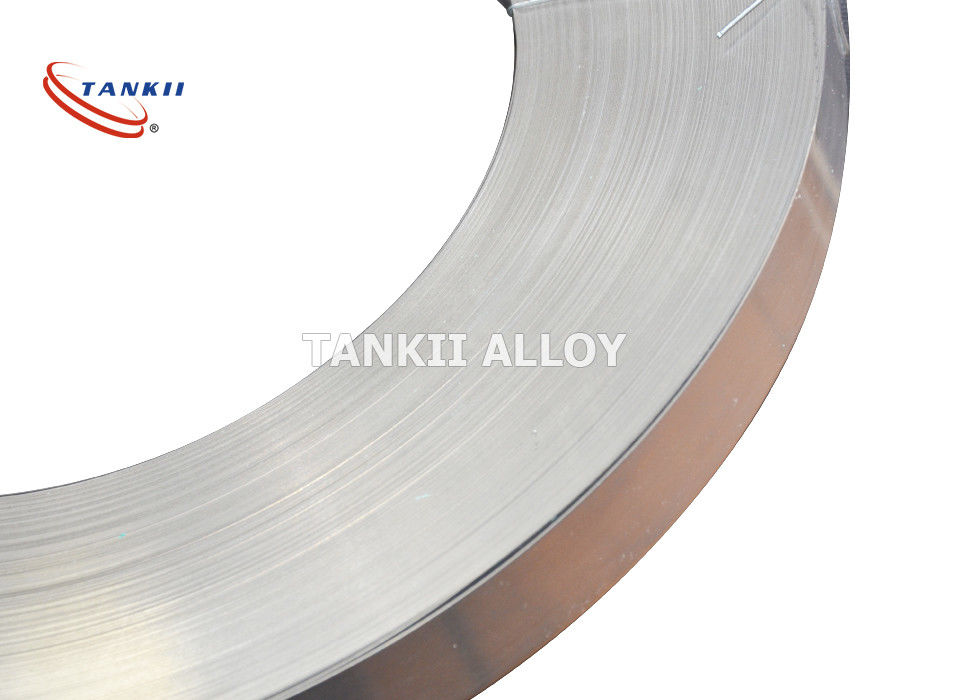

0.1*10mm NiCr80/20 Nichrome Strip Bright Annealed Oxidation Resistance

Product Details

Place of Origin: CHINA

Brand Name: TANKII

Certification: ISO9001

Model Number: NiCr80/20.

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Price: negotiation

Packaging Details: spool+plastic bag+carton+pallet for resistance wires

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20, 000kg/month

Get Best Price
Contact Now
Specifications
Highlight:

NiCr80/20 Nichrome Strip

,

Bright Annealed Nichrome Strip

,

Oxidation Resistance Nichrome Strip

Color:
Sliver Or Polish
Conductor Material:
Ni-Cr
Thickness:
: 0.02----4.0mm
Condition:
Bright Annealed
Feature::
High Nickel, High Resistance
Certificate::
ISO 9001 RoHS SGS
Width:
2.5----250mm
Type:
Nickel Strip
Color:
Sliver Or Polish
Conductor Material:
Ni-Cr
Thickness:
: 0.02----4.0mm
Condition:
Bright Annealed
Feature::
High Nickel, High Resistance
Certificate::
ISO 9001 RoHS SGS
Width:
2.5----250mm
Type:
Nickel Strip
Description
0.1*10mm NiCr80/20 Nichrome Strip Bright Annealed Oxidation Resistance

0.1*10mm Nichrome Strip nicr 80/20
Nichrome Heating Alloy NiCr20/80
1 Introduction
The Nichrome chemical composition is nickel, chromium and ferrum, it used at operating temperatures up to 1200 degrees. Its chemical composition gives good oxidation resistance, especially under conditions of frequent switching or wide temperature fluctuations. They are used for electric resistances of appliances or for application of industrial furnaces.
2 Products and services
1> ROHS cerfication;
2.> Small orders are accepted;
3.> Factory direct sale;
4.> Timely delivery;
5> Samples are available;
3 Features
1>. Good oxidation resistance;
2> . Low embrittlement at high temperature;
3.> Good plasticity(easier to give them a shape);
4> . Nice performance and processing;
4 Applications
1> . In metal sheathed tubular elements used in grills;
2> . Toaster ovens;
3.> Storage heaters;
4.> As suspended coils in air heaters;
5.> Used in clothes dryers, fan heaters, hand dryers;
6> . Industrial hot wire foam cutters.
5

Size:

Alloy bar dia:10-60mm

Resistance wire dia.0.05-10mm

Resistance strip thickness0.56-5mm, width6-50mm

Resistance strip wire thickness0.1-0.6mm,strip wire width1-6mm

Cold rolled resistance foil thickness0.05-3mm,strip width4-250mm
6 When you inquiry, pls specify the details
1. Material and model of wire
2. Diameter, if strip, thickness and width;
3. Quantity;
4. Special requirement if you have.



♦Years of production experience



♦A strong service team, ready to help you solve the problem
Chemical Composition and Propertes:


Propertes/Grade

NiCr 80/20

NiCr 70/30

NiCr 60/15

NiCr 35/20

NiCr 30/20

Main Chemical Composition(%)

Ni

Bal.

Bal.

55.0-61.0

34.0-37.0

30.0-34.0



Cr

20.0-23.0

28.0-31.0

15.0-18.0

18.0-21.0

18.0-21.0



Fe

≤ 1.0

≤ 1.0

Bal.

Bal.

Bal.

Max Working Temperature(ºC)

1200

1250

1150

1100

1100

Resistivity at 20ºC
(μ Ω · m)

1.09

1.18

1.12

1.04

1.04

Density(g/cm3)

8.4

8.1

8.2

7.9

7.9

Thermal Conductivity
(KJ/m· h· ºC)

60.3

45.2

45.2

43.8

43.8

Coefficient of Thermal Expansion(α * 10-6/ºC)

18

17

17

19

19

Melting Point(ºC)

1400

1380

1390

1390

1390

Elongation(%)

> 20

> 20

> 20

> 20

> 20

Micrographic Structure

austenite

austenite

austenite

austenite

austenite

Magnetic Property

nonmagnetic

nonmagnetic

nonmagnetic

nonmagnetic

nonmagnetic




0.1*10mm NiCr80/20 Nichrome Strip Bright Annealed Oxidation Resistance 00.1*10mm NiCr80/20 Nichrome Strip Bright Annealed Oxidation Resistance 1
