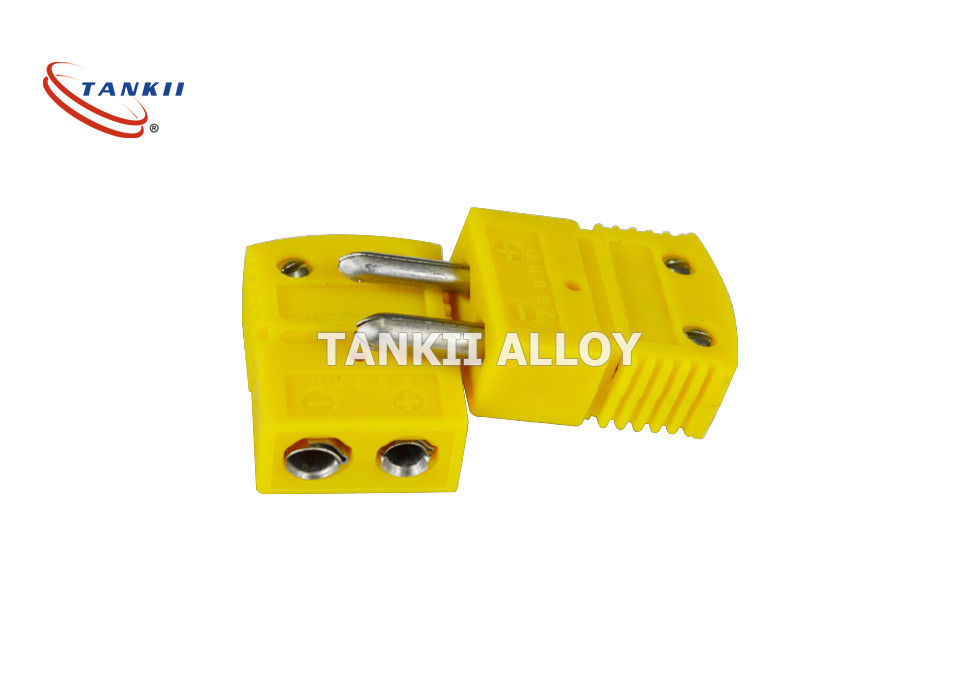

10A K Type Thermocouple Plug IEC Male And Female Socket

All Type Connectors Thermocouple Plug Male And Female Yellow

Quick Details for tankii Standard connector :

• Connector Type	Standard Thermocouple
  Cable Type	K-type Thermocouple
  Compatible Devices	Digital Thermometer
  Color	Yellow
  Brand	Tankii



  Connector Type and Color

  Type	Color	Conductor Material
  KX	yellow ( ANSI ) or green ( IEC)	NiCr-NiSi
  NX	orange	NiCrSi-NiSiMg
  EX	purple	NiCr-CuNi
  JX	black	Fe-CuNi
  TX	blue	Cu-CuNi
  R/S	green	Cu-CuNi
  PT100	white	Cu/Ni



When to use a Thermocouple Connector

Although the simplest of thermocouples end in bare wires (as found in many laboratory and industrial/research applications, for example), there are many other applications where a connector is usually desirable to make life easier.

The connector is usually used to connect the thermocouple sensor to thermocouple or extension cables, then on to the reference junction and the instrumentation concerned. The connectors allow for rapid fitting or exchange of sensors without sacrificing thermocouple conductor uniformity. Plug and jacks are designed so that their installation can be made simply and securely, with designed-in locking mechanisms. Plugs and jacks are polarized by size and are usually marked for negative and positive polarity. Although there is no standard as such, connectors are generally pin compatible with devices from several manufacturers.

Thermocouple connectors can also be ordered in a smaller compact size which are typically called mini thermocouple plugs and jacks.
The male mini thermocouple plugs have smaller flat polarized plugs.
Thermocouple plugs and jacks can be ordered in a variety of body materials with various temperature ratings to suite your application.


All thermocouple Connectors can be ordered in Type E, J, K, N, T, R, S, and B thermocouple calibrations and with ANSI or IEC Color Coded bodies.

Pack and delivery:
Packing: 10pcs/package, 400pcs/ carton, Carton size: 50*32*27cm
Delivery time : 5-7 days after getting the payment
Delivery: By express

Application:



Related Product


About Us

Shanghai Tankii Alloy Material Co., Ltd. specialized in production of thermocouple wires, thermocouple ribbon wire, thermocouple strips, thermocouple rods, thermocouple connectors and etc.
Based on the principle of “first quality, sincere service”, our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.


Welcome to email to me for more information on thermocouple connector.
