CuNi44 Flat Copper Nickel Alloy Wire 0.2*3mm For Resistor

Product Details

Place of Origin: CHINA

Brand Name: Tankii

Certification: ISO 9001

Model Number: Nickel alloy wire

Payment & Shipping Terms

Minimum Order Quantity: 5KG

Packaging Details: spool,coil

Delivery Time: 5-30 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 2000kg/month

Get Best Price
Contact Now
Specifications
Highlight:

Flat Copper Nickel Alloy Wire

,

CuNi44 Copper Nickel Alloy Wire

,

0.2*3mm Copper Nickel Alloy Wire

Material:
CuNi44
Size:
Customized
Shape:
Wire
Surface:
Bright
Certificate:
ISO 9001
Application:
Resistor
Material:
CuNi44
Size:
Customized
Shape:
Wire
Surface:
Bright
Certificate:
ISO 9001
Application:
Resistor
Description
CuNi44 Flat Copper Nickel Alloy Wire 0.2*3mm For Resistor

CuNi44 Flat Wire Cooper Nickel Alloy Wire 0.2*3mm Small Size Available



CuNi44 (UNS C72150/2.0842) is a copper-nickel alloy (CuNi alloy) characterized by high electrical resistance, high ductility and good corrosion resistance. It is suitable for use at temperatures up to 600℃.



CuNi44 offers high electrical resistivity and very low temperature coefficient of resistance (TCR). Due to its low TCR, it finds use in wire-wound precision resistors that can operate up to 400°C (750°F). This alloy is also capable of developing a high and constant electromotive force when coupled with copper. This property allows it to be used for thermocouple, thermocouple extension and compensating leads. It is easily soldered, welded, and offers good corrosion resistance against atmospheric conditions.

Nominal Chemical Composition (%)

Alloy Ni Mn Fe Cu
CuNi44 Min 43.0 Max 1.0 Max 1.0 Balance

Physical Properties (at room temperature)

Alloy Density Specific Resistance
(Electrical Resistivity)
Thermal Linear
Expansion Coeff.
b/w 20 - 100°C
Temp. Coeff.
of Resistance
b/w 20 - 100°C
Maximum
Operating Temp.
of Element
  g/cm³ µΩ-cm 10-6/°C ppm/°C °C
CuNi44 8.90 49.0 14.0 Standard ±60 600
Special ±20

Specifications

Alloy Werkstoff Nr UNS designation DIN
CuNi44 2.0842 C72150 17644

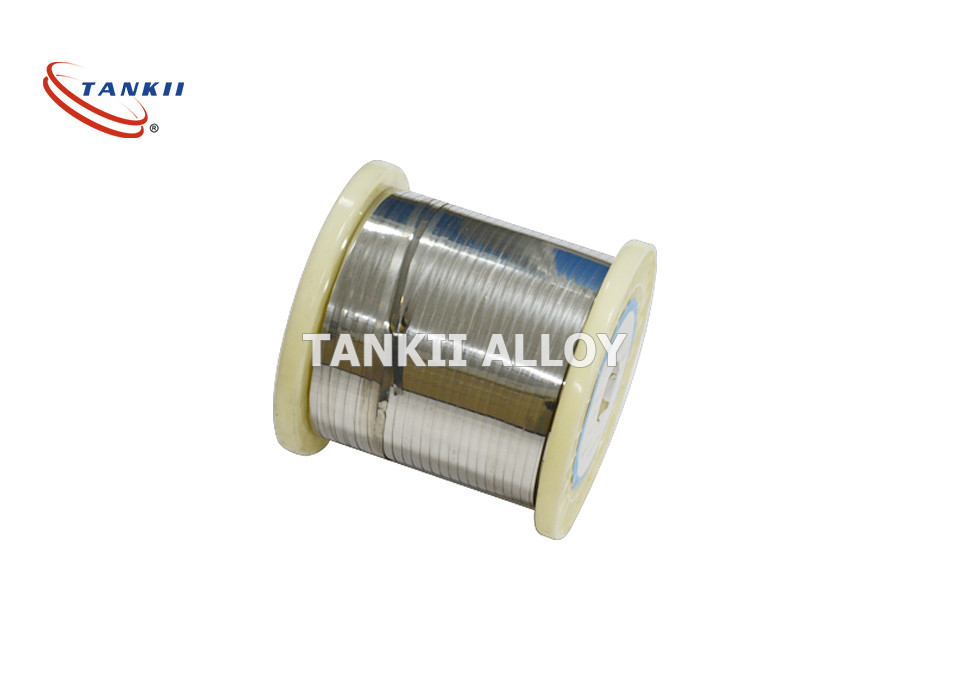

CuNi44 Flat Copper Nickel Alloy Wire 0.2*3mm For Resistor 0CuNi44 Flat Copper Nickel Alloy Wire 0.2*3mm For Resistor 1
