Product Details
Place of Origin: Shanghai, China
Brand Name: TANKII
Certification: ISO9001 SGS
Model Number: Ag72Cu28
Payment & Shipping Terms
Minimum Order Quantity: 1 KG
Price: negotiable
Packaging Details: Spool + Carton + Wooned Case
Delivery Time: 7-20 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 Tons per month
Material: |
Silver Copper Alloy Wire |
Diameter: |
0.05mm-1.0mm |
MOQ: |
1kg |
Surface: |
Bright |
Sample: |
Accepted Small Order |
Material: |
Silver Copper Alloy Wire |
Diameter: |
0.05mm-1.0mm |
MOQ: |
1kg |
Surface: |
Bright |
Sample: |
Accepted Small Order |

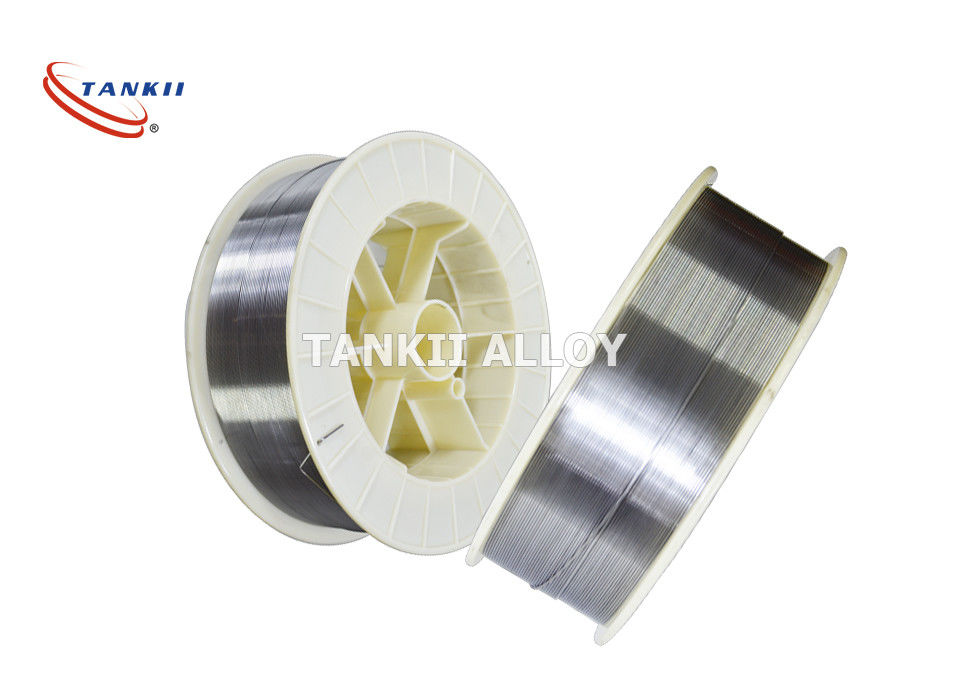

Silver Copper Wire Ag90cu10 Ag72cu28 Silver Alloy Wire for thermostat
AG50Cu50, The melting point is 779-850 C
Diameter: 0.1mm -3.0mm
AG72Cu28, The melting point is 779-779 C
Diameter: 0.08mm-6.0mm
AG45Cu30Zn25, The metling point is 660-725 C
Diamater: 0.1mm-6.0mmApplication : suitable for brazing steel, stainless steel, copper alloys, nickel alloy and etc.
Package:1Kg/spool; 1Kg/polybag; 2Kg/polybag; Ring,Paste and flux coated Available; Carton or according to request.
| Silver Brazing Alloy |
Chemical Composition (%) |
Solidus | Liquidus | Specification (mm) |
Standards |
BAg10CuZn (HL301) |
Ag:9.0-11.0 Cu:52.0-54.0 Zn:35.0-39.0 Other:Max0.15 |
815ºC |
850ºC |
Rod/Wire/Ring/Flat ≥φ0.2 Strip/Belt/Foil /preforming Thickness≥0.05 2.0≤Width≤100 |
Enterprise |
BAg15CuZn |
Ag:14.0-16.0 Cu:46.0-48.0 Zn:36.0-40.0 Other:Max0.15 |
750ºC |
830ºC |
Rod/Wire/Ring/Flat ≥φ0.2 Strip/Belt/Foil /preforming Thickness≥0.05 2.0≤Width≤100 |
Enterprise |
BAg18CuZn |
Ag,Cu,Zn | 700ºC |
815ºC |
Rod/Wire/Ring/Flat ≥φ0.2 Strip/Belt/Foil /preforming Thickness≥0.05 2.0≤Width≤100 |
Enterprise |
BAg20CuZn |
Ag:19.0-21.0 Cu:43.0-45.0 Zn:34.0-38.0 Other:Max0.15 |
690ºC |
810ºC |
Rod/Wire/Ring/Flat ≥φ0.2 Strip/Belt/Foil /preforming Thickness≥0.05 2.0≤Width≤100 |
GB/T10046-2008 EN1044:1999 AG206 |
BAg25CuZn (HL302) |
Ag:24.0-26.0 Cu:39.0-41.0 Zn:33.0-37.0 Other:Max0.15 |
700ºC |
790ºC |
Rod/Wire/Ring/Flat ≥φ0.2 Strip/Belt/Foil /preforming Thickness≥0.05 2.0≤Width≤100 |
GB/T10046-2008 EN1044:1999 AG205 ISO 17672:2010 Ag225 |
| BAg30CuZn | Ag:29.0-31.0 Cu:37.0-39.0 Zn:30.0-34.0 Other:Max0.15 |
680ºC |
765ºC |
Rod/Wire/Ring/Flat ≥φ0.2 Strip/Belt/Foil /preforming Thickness≥0.05 2.0≤Width≤100 |
GB/T10046-2008 AWS A5.8 BAg-20 EN1044:1999 AG204 ISO 17672:2010 Ag230 |
| BAg35CuZn | Ag:34.0-36.0 Cu:31.0-33.0 Zn:31.0-35.0 Other:Max0.15 |
685ºC |
775ºC |
Rod/Wire/Ring/Flat ≥φ0.2 Strip/Belt/Foil /preforming Thickness≥0.05 2.0≤Width≤100 |
GB/T10046-2008 AWS A5.8 BAg-35 |
| BAg44CuZn | Ag:43.0-45.0 Cu:29.0-31.0 Zn:24.0-28.0 Other:Max0.15 |
675ºC |
735ºC |
Rod/Wire/Ring/Flat ≥φ0.2 Strip/Belt/Foil /preforming Thickness≥0.05 2.0≤Width≤100 |
GB/T10046-2008 EN1044:1999 AG203 ISO 17672:2010 Ag244 |
| BAg45CuZn (HL303) |
Ag:44.0-46.0 Cu:29.0-31.0 Zn:24.0-27.0 Other:Max0.15 |
665ºC |
745ºC |
Rod/Wire/Ring/Flat ≥φ0.2 Strip/Belt/Foil /preforming Thickness≥0.05 2.0≤Width≤100 |
GB/T10046-2008 AWS A5.8 BAg-5 |
| BAg50CuZn (HL304) |
Ag:49.0-51.0 Cu:33.0-35.0 Zn:14.0-18.0 Other:Max0.15 |
690ºC |
775ºC |
Rod/Wire/Ring/Flat ≥φ0.2 Strip/Belt/Foil /preforming Thickness≥0.05 2.0≤Width≤100 |
GB/T10046-2008 AWS A5.8 BAg-6 |
| BAg60CuZn | Ag:59.0-61.0 Cu:25.0-27.0 Zn:12.0-16.0 Other:Max0.15 |
695ºC |
730ºC |
Rod/Wire/Ring/Flat ≥φ0.2 Strip/Belt/Foil /preforming Thickness≥0.05 2.0≤Width≤100 |
GB/T10046-2008 EN1044:1999 AG202 |
| BAg65CuZn (HL306) |
Ag:64.0-66.0 Cu:19.0-21.0 Zn:13.0-17.0 Other:Max0.15 |
670ºC |
720ºC |
Rod/Wire/Ring/Flat ≥φ0.2 Strip/Belt/Foil /preforming Thickness≥0.05 2.0≤Width≤100 |
GB/T10046-2008 AWS A5.8 BAg-9 |
| BAg70CuZn (HL307) |
Ag:6.0-7.0 Cu:19.0-21.0 Zn:8.0-12.0 Other:Max0.15 |
690ºC |
740ºC |
Rod/Wire/Ring/Flat ≥φ0.2 Strip/Belt/Foil /preforming Thickness≥0.05 2.0≤Width≤100 |
GB/T10046-2008 AWS A5.8 BAg-10 |
