Item: |
Yellow And Red Colour Code 22SWG Vitreous Silica Fiber Insulated Type K Extension Wire |
Insulation Material: |
Vitreous Silica Fiber 1000C |
Type: |
K (chromel Alumel ) |
Conductor Size: |
0.711mm Or 0.81mm |
Production Time: |
10 Days |
Insulation Temp.: |
Up To 1000C |
Standard: |
IEC-60584 |
Application: |
To Connect Thermocouples To The Sensing Or Control Instrumentation. |
Item: |
Yellow And Red Colour Code 22SWG Vitreous Silica Fiber Insulated Type K Extension Wire |
Insulation Material: |
Vitreous Silica Fiber 1000C |
Type: |
K (chromel Alumel ) |
Conductor Size: |
0.711mm Or 0.81mm |
Production Time: |
10 Days |
Insulation Temp.: |
Up To 1000C |
Standard: |
IEC-60584 |
Application: |
To Connect Thermocouples To The Sensing Or Control Instrumentation. |

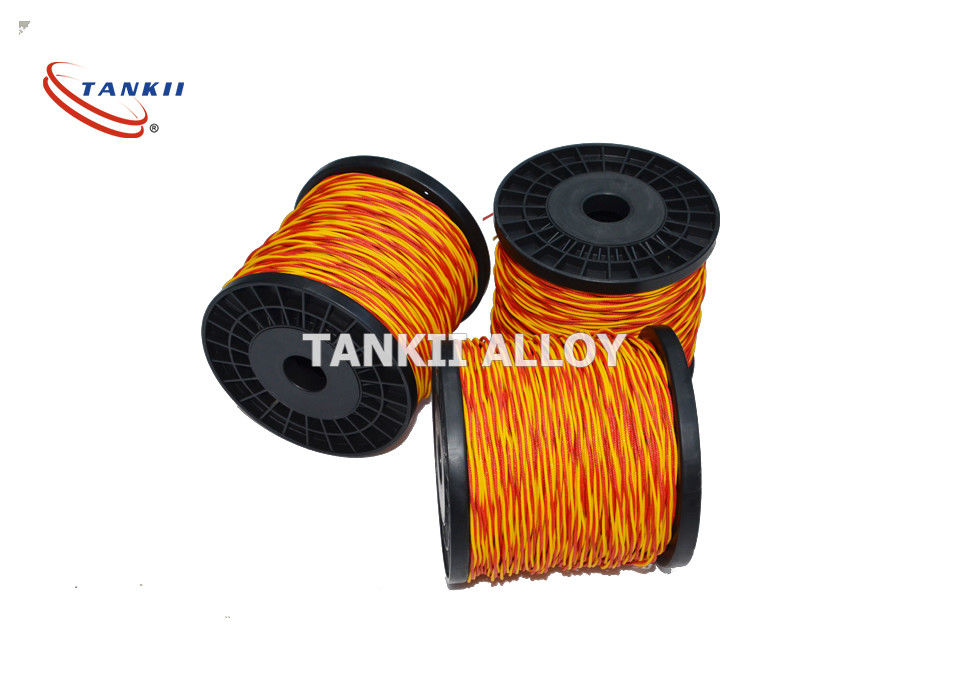

Yellow And Red Colour Code 22SWG Vitreous Silica Fiber Insulated Type K Extension Wire
Shanghai Tankii alloy material Co., ltd manufactures themocouple wire & extension grade wire, type K, J, T, E, N.
What is the difference between Thermocouple grade and Extension grade wire?
Thermocouple grade wire is wire that is used to make the sensing point (or probe part) of the thermocouple.
Extension grade wire is only used to extend a thermocouple signal from a probe back to the instrument reading the signal.
The extension grade wire typically will have a lower ambient temperature limit in which the wire may be used.
Namely, it may pass a signal representing a higher temperature as received from the probe, but the wire physically may not be exposed to higher temperatures.
Thermocouple wire may be used as extension wire, but extension grade wire may not be used in the sensing point (or probe part) of the thermocouple.
Part numbers for extension wire typically begin with an "EX" prefix.
Remember one thing, Extension Grade wire is only tested and certified to 200C, any usage higher then that cannot be assumed to meet Standard Limits unless the wire is calibrated and the actual tolerance used in determining the final measurement accuracy.
2*0.72mm 2*0.81mm G Glassfiber Insulated Type K Extension Wire
| Conductor Name | Type | Applicable thermocouple type |
| Cu-Constantan0.6 | SC or RC | S or R |
| Iron-constantan22 Copper-Constantan40 Chromel-Ni(Alumel) | KCA KCB KX | K |
| Iron-constantan18 NiCr14Si-NiSi4Mg | NC NX | N |
| NiCr10-Constantan45 | EX | E |
| Iron-Constantan 45 | JX | J |
| Copper-Constantan 45 | TX | T |
Yellow And Red Colour Code 22SWG Vitreous Silica Fiber Insulated Type K Extension Wire
Properties of insulation materials
| Material Type | Continuous Operating Temp. / ℃ | Abrasion Resistance | Chemical Resistance | Moisture Resistance | Solvent Resistance | Flame Resistance |
| PVC | 105 | Very Good | Very Good | Good | Fair | Excellent |
| SILICONE | 200 | Good | Good | Excellent | Excellent | Excellent |
| FEP | 200 | Excellent | Excellent | Excellent | Excellent | Excellent |
| PFA | 260 | Excellent | Excellent | Excellent | Excellent | Excellent |
| PTFE | 260 | Good | Excellent | Excellent | Excellent | Excellent |
| B-GLASS FIBER | 260 | Good | Good | Fair | Good | Good |
| G-GLASS FIBER | 510 | Poor | Good | Good | Excellent | Excellent |
| Q-GLASS FIBER | 704 | Fair | Good | Good | Excellent | Excellent |
| VITREOUS SILICA FIBER | 1100 | Good | Good | Excellent | Excellent | Excellent |
| MINERAL INSULATION* | 1100 | Excellent | Excellent | Good | Excellent | Excellent |
International Color code:
| ASTM | (American Society for Testing and Materials) E 230 |
| ANSI | (American National Standard Institute) MC 96.1 |
| IEC | (European Standard by the International Electrotechnical Commission 584)-1/2/3 |
| DIN | (Deutsche Industrie Normen) EN 60584 -1/2 |
| BS | (British Standards) 4937.1041, EN 60584 - 1/2 |
| NF | (Norme Française) EN 60584 -1/2 - NFC 42323 - NFC 42324 |
| JIS | (Japanese Industrial Standards) C 1602 - C 1610 |
| GOST | (Unification of the Russian Specifications) 3044 |
Yellow And Red Colour Code 22SWG Vitreous Silica Fiber Insulated Type K Extension Wire
| Packaging Details | Roll with plastic film wrapped and carton package |
|---|---|
| Delivery Detail | Shipped in 7 ~15 days after payment |
Thermocouple wire With insulation used for extension cable or compensation cable.
