Product Details
Place of Origin: China
Brand Name: TANKII
Certification: ISO9001 SGS
Model Number: Cr10Ni90
Payment & Shipping Terms
Minimum Order Quantity: 20KG
Price: negotiable
Packaging Details: Spool + Carton + Wooned Case
Delivery Time: 7-20 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Tons per month
Material: |
Ni-Cr Resistance Wire |
Diameter: |
0.02- 8.00mm |
Sample: |
Accepted Small Order |
Spool: |
DIN 63-DIN250 |
Surface: |
Bright |
Origin: |
Shanghai, China |
HS Code: |
75052200 |
Material: |
Ni-Cr Resistance Wire |
Diameter: |
0.02- 8.00mm |
Sample: |
Accepted Small Order |
Spool: |
DIN 63-DIN250 |
Surface: |
Bright |
Origin: |
Shanghai, China |
HS Code: |
75052200 |

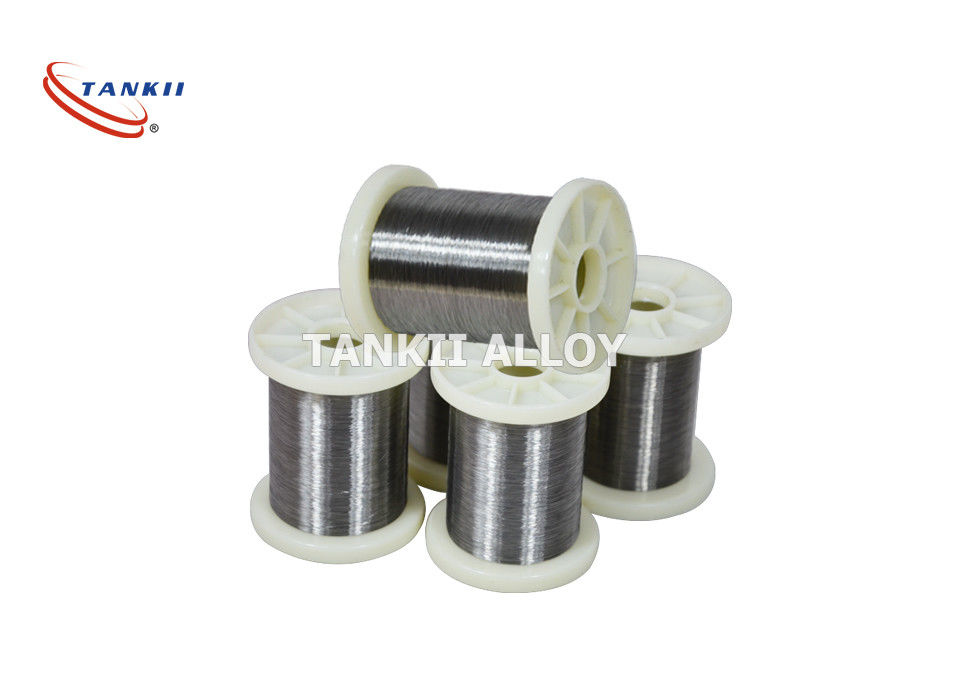

TANKII Good quality 90 / 10 Nicr Alloy Resistance Nichrome 90 Vape Wire
Nicr's metallurgical structure confers them a very good plasticity when cold.
Production Standard: ASTM B603, DIN 17470, JIS C2520, GB/T1234.
Our advantage:High quality,short delivery time,small MOQ.
NI-CR, nickel-ferrochrome alloy wire with electric high temperature oxidation resistance,
high strength, not soften and a series of advantages.
When used in a long time, the same type and the permanent elongation is very small, with excellent comprehensive properties,
is to produce high-quality varieties of choice for electric components.
|
Performance/
material
|
Cr10Ni90
|
Cr20Ni80
|
Cr30Ni70
|
Cr15Ni60
|
Cr20Ni35
|
Cr20Ni30
|
|
|
Composition
|
Ni
|
90
|
Rest
|
Rest
|
55.0-61.0
|
34.0-37.0
|
30.3-34.0
|
|
Cr
|
10
|
20.0-23.0
|
28.0-31.0
|
15.0-18.0
|
18.0-21.0
|
18.0-21.0
|
|
|
Fe
|
--
|
≤1.0
|
≤1.0
|
Rest
|
Rest
|
Rest
|
|
| Max. continuous service temp. of element(ºC) | 1200 | 1200 | 1250 | 1150 | 1100 | 1100 | |
|
Melting Point
|
1400
|
1400
|
1380
|
1390
|
1390
|
1390 |
|
|
Resistivity
|
--
|
1.09+-0.05
|
1.18+-0.05
|
1.12+-0.05
|
1.00+-0.05
|
1.04+-0.05
|
|
|
Density(g/cm3)
|
8.7
|
8.4
|
8.1
|
8.2
|
7.9
|
7.9
|
|
|
Elongation at rupture
|
≥20
|
≥20
|
≥20
|
≥20
|
≥20
|
≥20
|
|
| T.S.(MPa) | ≥490 | ≥600 | ≥600 | ≥600 | ≥600 | ≥600 | |
Characteristics:
Corrosion resistance;Stable performance; Anti-oxidation; High temperature stability;
Excellent coil-forming ability; Uniform and beautiful surface condition without spots.
Usage:
Resistance heating elements;Household appliances;Material in metallurgy;Mechanical manufacturing and other industries.
Process:
Wire:Material preparation→melting→re-melting→forging→hot rolling→heat treatment→surface treatment→drawing(rolling)→finish heat treatment→inspection→package→warehouse
Product features of nichrome wire:
1). Excellent anti-oxidation and mechanical strength at high temperature;
2). High resistivity and low temperature coefficient of resistance;
3). Excellent reelability and forming performance;
4). Excellent welding performace
| Alloy | Standard Strand Construction, mm | Resistance,Ω/m | Strand Diameter Nominal, mm | Meter per Kilo |
| NiCr 80/20 | 19×0.544 | 0.233-0.269 | 26 | |
| NiCr 80/20 | 19×0.61 | 0.205-0.250 | ||
| NiCr 80/20 | 19×0.523 | 0.276-0.306 | 2.67 | 30 |
| NiCr 80/20 | 19×0.574 | 2.87 | 25 | |
| NiCr 80/20 | 37×0.385 | 0.248-0.302 | 2.76 | 26 |
| NiCr 60/15 | 19×0.508 | 0.286-0.318 | ||
| NiCr 60/15 | 19×0.523 | 0.276-0.304 | 30 | |
| Ni | 19×0.574 | 0.020-0.027 | 2.87 | 21 |
