Product Details
Place of Origin: CHINA
Brand Name: TANKII
Certification: ISO9001
Model Number: NiCr6023
Payment & Shipping Terms
Minimum Order Quantity: 10kg
Packaging Details: Carton Box
Delivery Time: 2~5 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000Ton/Year
Material: |
Nickel 60%, Chromium 23% |
Surface: |
Bright |
Pakage: |
In Coil |
Material: |
Nickel 60%, Chromium 23% |
Surface: |
Bright |
Pakage: |
In Coil |

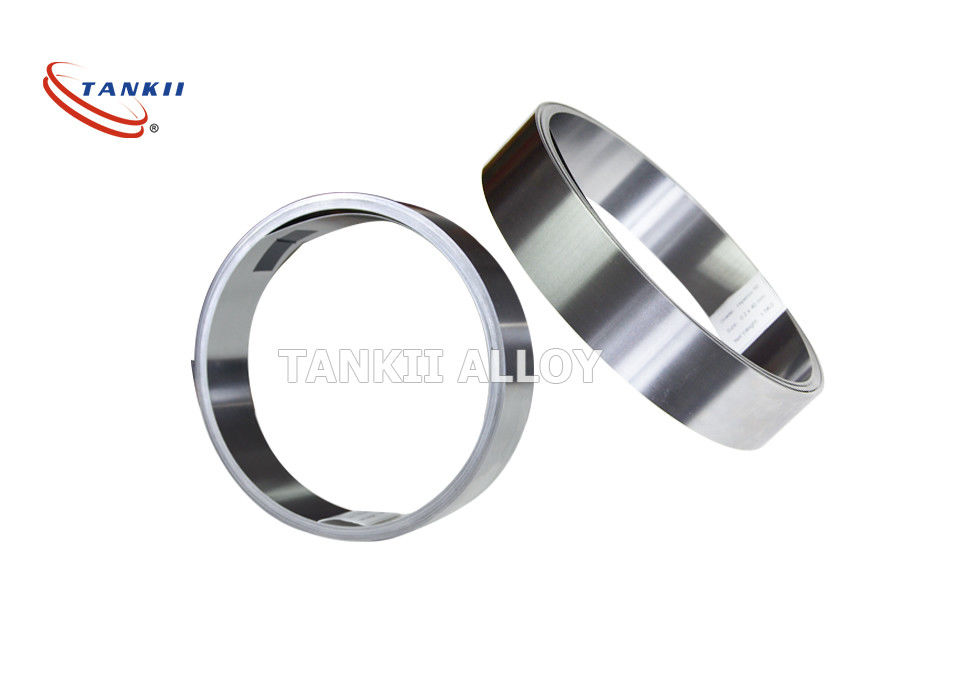

High Quality Nichrome Ribbon Nicr6023 for Electric Heating Elements
1. About Nichrome NiCr6023
Nichrome alloy NiCr6023 characterized by high resistivity, good oxidation resistance ,good form stability and good ductility and excellent weldability. It is suitable for use at temperatures up to 1150°C.
2. NiCr6023 has many other Grade name:
Ni60Cr15,Chromel C, Nikrothal 60, N6, HAI-NiCr 60, Tophet C, Resistohm 60, Cronifer II,Electroloy, Nichrome, Alloy C, Alloy 675,Nikrothal 6, MWS-675, Stablohm 675,NiCrC
3. Chemical Composition of NiCr6015
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
| Max | |||||||||
| 0.08 | 0.02 | 0.015 | 0.60 | 0.75~1.60 | 22.0~23.0 | 55.0~61.0 | Max 0.50 | Bal. | - |
4. Typical Mechanical properties of Nicr6015
| Yield strength | Tensile Strength | Elongation |
| Mpa | Mpa | % |
| 370 | 730 | 35 |
5.Temperature Factors Of Electrical Resistivity
| 20ºC | 100ºC | 200ºC | 300ºC | 400ºC | 500ºC | 600ºC |
| 1 | 1.011 | 1.024 | 1.038 | 1.052 | 1.064 | 1.069 |
| 700ºC | 800ºC | 900ºC | 1000ºC | 1100ºC | 1200ºC | 1300ºC |
| 1.073 | 1.078 | 1.088 | 1.095 | 1.109 | - | - |
1.4867 / NC6015 Resistance Wire 0.3mm Used For Metal-Sheathed Tubular Elements
Our Nichrome alloy are in the form of wire, ribbon, strip, coil.
Delivery conditions are:
Nichrome products sizes are:
Wire: 0.025mm-10mm
Ribbon: 0.05*0.2mm-2.0*6.0mm
Strip: 0.02*5.0mm-5.0*250mm
Bar: 10-100mm
Rohs Certified 1.4867 NiCr6015/NC6015 Resistance Wire 0.3mm Used Electronic Instruments
NiCr 80:20 - Industrial furnaces (upto 1200°C), electric cooking equipment, precision resistors.
NiCr 70:30 - Industrial furnaces (upto 1230°C) with alternating oxidizing/reducing atmosphere, precision resistors.
NiCr 60:15 - Industrial furnaces (upto 1100°C), electrically heated equipment, high-resistance and potentiometer resistors.
NiCr 40:20 - Domestic heating appliances (upto 1050°C), furnaces in carburising or semi-reducing atmosphere.
NiCr 30:20/ NiCr 20:25 - Industrial furnaces (upto 1050°C), heating elements of cooking equipment.
Application:
