Product Details
Place of Origin: China mainland
Brand Name: Tankii
Certification: ISO9001
Model Number: K type thermocouple
Payment & Shipping Terms
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000Ton per year
Item: |

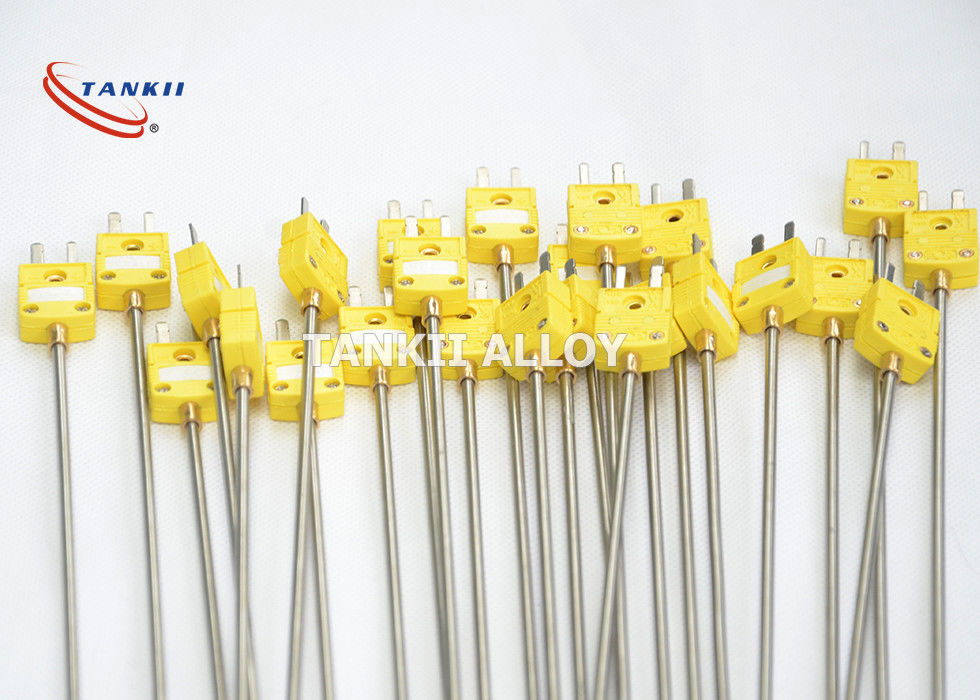

Mineral Insulated Metal Sheathed Cable Thermocouple Wire With Yellow Connector |
Insulation Material: |
Mineral (MgO) |
Conductor Type: |
Simplex/duplex |
Standard: |
ANSI, IEC |
Leading Time: |
3~7 Days |
Shipping: |
By Express/air/sea |
Sensor Length: |
1M, 3M, 5M 10M |
Usage: |
Industrial Temperature Measurement |
Item: |
Mineral Insulated Metal Sheathed Cable Thermocouple Wire With Yellow Connector |
Insulation Material: |
Mineral (MgO) |
Conductor Type: |
Simplex/duplex |
Standard: |
ANSI, IEC |
Leading Time: |
3~7 Days |
Shipping: |
By Express/air/sea |
Sensor Length: |
1M, 3M, 5M 10M |
Usage: |
Industrial Temperature Measurement |
MgO Mineral Insulated MI Cable, Metal Sheath Thermocouple Wire
Tankii offers a wide variety of sheath materials to choose from as there is no single sheath material that is suitable for all conditions.
The most commonly stocked sheath materials are 304 SS, 316 SS and alloy 600.
These are offered in all ANSI recognized thermocouple calibrations.
As a standard, Tankii Thermocouple cable is made with high purity 94% minimum MgO insulation.
Other types and purities are available.
Temperature is measured with one or more kinds of temperature sensors. There are several available on the market today:
1. Thermocouple sensors
2. RTD sensors
3. Thermistor sensors
4. Infrared temperature sensors
| Thermocouple Code | Comp. Type | Comp. Wire Name | Positive | Negative | ||
| Name | Code | Name | Code | |||
| S | SC | copper-constantan 0.6 | copper | SPC | constantan 0.6 | SNC |
| R | RC | copper-constantan 0.6 | copper | RPC | constantan 0.6 | RNC |
| K | KCA | Iron-constantan22 | Iron | KPCA | constantan22 | KNCA |
| K | KCB | copper-constantan 40 | copper | KPCB | constantan 40 | KNCB |
| K | KX | Chromel10-NiSi3 | Chromel10 | KPX | NiSi3 | KNX |
| N | NC | Iron-constantan 18 | Iron | NPC | constantan 18 | NNC |
| N | NX | NiCr14Si-NiSi4Mg | NiCr14Si | NPX | NiSi4Mg | NNX |
| E | EX | NiCr10-Constantan45 | NiCr10 | EPX | Constantan45 | ENX |
| J | JX | Iron-constantan 45 | Iron | JPX | constantan 45 | JNX |
| T | TX | copper-constantan 45 | copper | TPX | constantan 45 | TNX |
|
Type |
Class of Accuracy | |||||
| I | II | III | ||||
| Tolerance | Temp-℃ | Tolerance | Temp-℃ | Tolerance | Temp-℃ | |
| K | ±1.5℃ or ±0.4% t | -40~1000 | ±2.5℃ or ±0.75% t | -40~1000 | ±2.5℃ or ±1.5% t | -200~40 |
| E | -40~1000 | -40~1000 | -200~40 | |||
| N | -40~800 | -40~800 | -200~40 | |||
| J | -40~750 | -40~750 | -200~40 | |||
| T | ±0.5℃ or ±0.4% t | -40~350 | ±1.0℃ or ±0.75% t | -40~400 | ±1.0℃ or ±1.5% t | -200~40 |
| Packaging Details | Packed with plastic film wrapped and carton package |
|---|---|
| Delivery Detail | Shipped in 7 days after payment |
Application: thermocouple sensors
