Product Details
Place of Origin: Shanghai
Brand Name: Tankii
Certification: DIN, ASTM, JIS
Model Number: Nicr20alsi
Payment & Shipping Terms
Minimum Order Quantity: 20kg
Packaging Details: spool ,coil, or as clients' requirement
Delivery Time: 25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000T/month
Product Name: |
Nicr20alsi Wire/Karma /6J22Wire For Resistors |
Max Working Temperature: |
300 |
Resistivity: |
1.33 |
Density: |
8.1 |
Thermal Conductivity: |
46 |
Melting Point: |
1400 |
Hardness: |
180 |
Tensile Strength: |
780 |
Fast Life: |
>81/1200 |
Product Name: |
Nicr20alsi Wire/Karma /6J22Wire For Resistors |
Max Working Temperature: |
300 |
Resistivity: |
1.33 |
Density: |
8.1 |
Thermal Conductivity: |
46 |
Melting Point: |
1400 |
Hardness: |
180 |
Tensile Strength: |
780 |
Fast Life: |
>81/1200 |

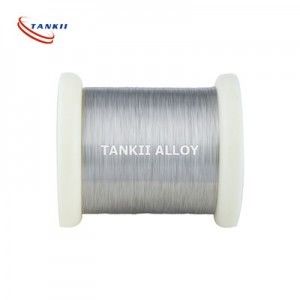

NiCr20AlSi wire/Karma/6j22 wire for Resistors
Karma alloy is made up of copper, nickel, Aluminum and Iron as the main components. The resistivity is 2~3 times higher than Manganin. It has lower temperature coefficient of resistance(TCR), lower thermal EMF versus copper, good permanence of resistance for a long period of time and strong anti-oxidation. Its working temperature range is wider than Manganin (-60~300ºC). It is suitable for making fine precision resistance elements and strain foil.
Chemical Content(%)
Grade | C | Si | Mn | P | S | Ni | Al | Fe | Cr |
Karma | ≤0.04 | ≤0.20 | 0.5~1.05 | ≤0.010 | ≤0.010 | Bal. | 2.7~3.2 | 2.0~3.0 | 19.0~21.5 |
Physical Properties
Grade | Density(g/cm3) | EMF vs Pt(0-100ºC)μv/ºC |
Max using Temp (ºC) |
Volume resistivity(μΩ.m) |
PPM value (×10-6/ºC) |
Karma | 8.1 | ≤2.5 | ≤300 | 1.33±8%(20ºC) | ≤±30(20ºC) |
