Product Details
Place of Origin: China mainland
Brand Name: Tankii
Certification: ISO9001
Model Number: K type thermocouple
Payment & Shipping Terms
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000Ton per year
Item: |

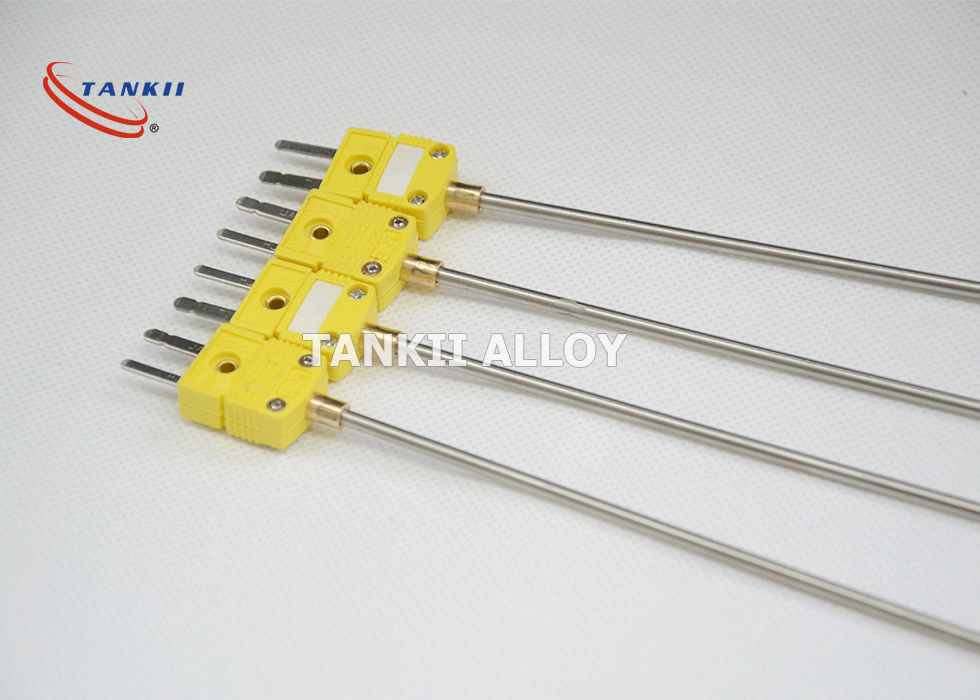

1mm Mineral Insulated Thermocouple Sensor With Yellow Mini Connector |
Sheath Material: |
SS321/304/316 |
Conductor Type: |
Simplex |
Standard: |
ANSI, IEC |
Leading Time: |
5~7 Days |
Shipping: |
By DHL/FedEx/TNT/UPS |
Sensor Length: |
1m |
Usage: |
Industrial |
Item: |
1mm Mineral Insulated Thermocouple Sensor With Yellow Mini Connector |
Sheath Material: |
SS321/304/316 |
Conductor Type: |
Simplex |
Standard: |
ANSI, IEC |
Leading Time: |
5~7 Days |
Shipping: |
By DHL/FedEx/TNT/UPS |
Sensor Length: |
1m |
Usage: |
Industrial |
The magnesium oxide (MgO) insulation is used in all cables is available in either standard purity ( >97% pure MgO) or high purity grade ( >99.4% pure MgO).
Tankii Thermocouple Connectors are the connecting devices from your temperature sensor to the instrumentation ensuring the temperature measurement signal is accurately transmitted.
They have standard connector types, making them interchangeable and easy to source. On the measuring end of the sensor, they can be as simple as the two metals twisted together, or they can be enclosed within a rugged probe for use in rough industrial environments.
MI thermocouple cable:
Sheath material: SS304, SS321, SS316, SS310, INCL600
OD: 0.5~12.7mm
Core number:
Simplex/ Duplex/ Multipoint
Structure
Conductor: Positive Ni-Cr, Negative Ni-Si
Insulation: Mineral
Jacket: Stainless steel, inconel
| Thermocouple Code | Comp. Type | Comp. Wire Name | Positive | Negative | ||
| Name | Code | Name | Code | |||
| S | SC | copper-constantan 0.6 | copper | SPC | constantan 0.6 | SNC |
| R | RC | copper-constantan 0.6 | copper | RPC | constantan 0.6 | RNC |
| K | KCA | Iron-constantan22 | Iron | KPCA | constantan22 | KNCA |
| K | KCB | copper-constantan 40 | copper | KPCB | constantan 40 | KNCB |
| K | KX | Chromel10-NiSi3 | Chromel10 | KPX | NiSi3 | KNX |
| N | NC | Iron-constantan 18 | Iron | NPC | constantan 18 | NNC |
| N | NX | NiCr14Si-NiSi4Mg | NiCr14Si | NPX | NiSi4Mg | NNX |
| E | EX | NiCr10-Constantan45 | NiCr10 | EPX | Constantan45 | ENX |
| J | JX | Iron-constantan 45 | Iron | JPX | constantan 45 | JNX |
| T | TX | copper-constantan 45 | copper | TPX | constantan 45 | TNX |
|
Type |
Class of Accuracy | |||||
| I | II | III | ||||
| Tolerance | Temp-℃ | Tolerance | Temp-℃ | Tolerance | Temp-℃ | |
| K | ±1.5℃ or ±0.4% t | -40~1000 | ±2.5℃ or ±0.75% t | -40~1000 | ±2.5℃ or ±1.5% t | -200~40 |
| E | -40~1000 | -40~1000 | -200~40 | |||
| N | -40~800 | -40~800 | -200~40 | |||
| J | -40~750 | -40~750 | -200~40 | |||
| T | ±0.5℃ or ±0.4% t | -40~350 | ±1.0℃ or ±0.75% t | -40~400 | ±1.0℃ or ±1.5% t | -200~40 |
| Packaging Details | Packed with plastic film wrapped and carton package |
|---|---|
| Delivery Detail | Shipped in 7 days after payment |
Application: thermocouple sensors
