10m 33ft Thermocouple Cable K Type Thermocouple Sensor Probe

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: Rohs, SGS

Model Number: KX

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiation

Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.

Delivery Time: 7 days

Payment Terms: T/T, Western Union, Paypal

Supply Ability: 1000Ton per year

Get Best Price
Contact Now
Specifications
Highlight:

33ft Thermocouple Cable

,

10m Thermocouple Sensor Probe

,

Fiberglass Thermocouple Sensor Probe

Item:
Glass Fiber K-TYPE Thermocouple Sensor Probe 10M 33ft
Conductor Type:
Solid 0.3mm
Application:
Temperature Measuring
Insulation:
Fiber Glass
Standard:
ANSI/IEC/GB
Lead Time:
3~10 Days After Getting The Deposit
Type:
K
Temperature Range:
-200~700
Item:
Glass Fiber K-TYPE Thermocouple Sensor Probe 10M 33ft
Conductor Type:
Solid 0.3mm
Application:
Temperature Measuring
Insulation:
Fiber Glass
Standard:
ANSI/IEC/GB
Lead Time:
3~10 Days After Getting The Deposit
Type:
K
Temperature Range:
-200~700
Description

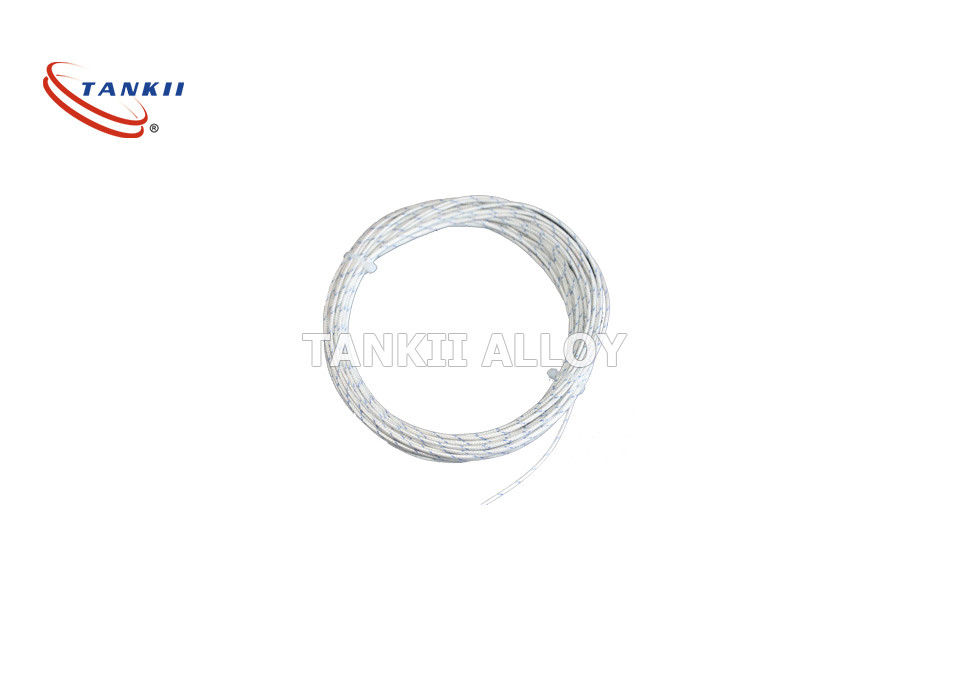

10m 33ft Thermocouple Cable K Type Thermocouple Sensor Probe

Glass Fiber K-TYPE Thermocouple Sensor Probe 10M 33ft



  • Country of Manufacture: CHINA; Brand: Tankii
  • Material: Metal, fiberglass;
  • Package Content: 5 x Thermocouple per bag;
  • Main Color: White with  blue yarn
  • Temperature Range: -50C to +180C;
  • Total Length: 10m/33ft
  • Transfer Type: K Type





This is a reliable k-type wire thermocouple TC-1 with a standard k-type sensor.

The sensor bead is at the tip of a 30 ft long wire probe, which has a fiberglass coating.

Tankii thermocouple can have a miniature k-type connector (as per your request) that will work with digital K-type thermometers of many manufacturers.

Tankii k type thermocouple can be  made from very thin k-type sensor wire, the thermocouple wire diameter is approximately AWG 29 (0.011 inch or 0.28 mm), this will give you very quick temperature readings.

This kind of probe can used to measure air or gas temperatures, it can be attached to pipes or embedded into objects you want to measure. It also can be used in non-corrosive liquids, such as water that does not have much salt or acid in it.


The conditions of measurement determine the type of tankii thermocouple wire and insulation to be used.
Temperature range, environment, insulation requirements, response, and service life should be considered.


Glass Fiber K-TYPE Thermocouple Sensor Probe 10M 33ft

Detailed Description
Conductor Name Type Applicable thermocouple type
Cu-Constantan0.6 SC or RC S or R
Iron-constantan22 Copper-Constantan40 Chromel-Ni(Alumel) KCA KCB KX K
Iron-constantan18 NiCr14Si-NiSi4Mg NC NX N
NiCr10-Constantan45 EX E
Iron-Constantan 45 JX J
Copper-Constantan 45 TX T



Glass Fiber K-TYPE Thermocouple Sensor Probe 10M 33ft




The standards we can meet for thermocouple :

ASTM  (American Society for Testing and Materials) E 230
ANSI (American National Standard Institute) MC 96.1
IEC (European Standard by the International Electrotechnical Commission 584)-1/2/3
DIN (Deutsche Industrie Normen) EN 60584 -1/2
BS (British Standards) 4937.1041, EN 60584 - 1/2
NF (Norme Française) EN 60584 -1/2 - NFC 42323 - NFC 42324
JIS (Japanese Industrial Standards) C 1602 - C 1610
GOST (Unification of the Russian Specifications) 3044



Packaging & Delivery
Packaging Details Roll with plastic film wrapped and carton package
Delivery Detail Shipped in 7 ~15 days after payment







10m 33ft Thermocouple Cable K Type Thermocouple Sensor Probe 0









FAQ:
1. Payment ways?
T/T, PAYPAL, WESTUNION.


2. When will you arrange the production?
In 12 hours since we get your payment.


3. Product certifications?
MTC , ISO9001, ROHS , SGS as customers' request


4. What kind of informations shall I give you regarding the shipping?
Company name, Recipients, Correct Address, telephone, zip code.


5. What is your warranty ?
For most of our products, the warranty will be 12 months.


6. When will I get a solution for defective products?
Within 48 hours (on working days )


7. What is your shipping way?
DHL, FEDEX, UPS, TNT, EMS, CHINA POST AIR, SEA FREIGHT and AIR FREIGHT!


8. What is your shipping time?
For General Orders, the shipping time will be 7 workdays.



ANSI Red And Blue T Type Thermocouple Cable With PVC Insulation And Blue Jacket



Welcome to call me or email to me for more info on thermocouple wire, thermocouple cable , RTD cable and thermocouple related products.
