Product Details
Place of Origin: China
Brand Name: Tankii
Certification: Rohs, SGS
Model Number: KX
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiation
Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.
Delivery Time: 7 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000Ton per year
Item: |
K Type 400 / 600 Degrees Celsius Glass Fiber Thermocouple Extension Cable |
Conductor Type: |
22SWG- 0.711mm |
Insulation Material: |
Fiberglass |
Standard: |
ANSI |
Leading Time: |
5~7 Days After Getting The Deposit |
Type: |
K Type |
Temperature Range: |
-200~1000 |
Application: |
Used To Extend The Signal From A Probe To Instrumentation |
Item: |
K Type 400 / 600 Degrees Celsius Glass Fiber Thermocouple Extension Cable |
Conductor Type: |
22SWG- 0.711mm |
Insulation Material: |
Fiberglass |
Standard: |
ANSI |
Leading Time: |
5~7 Days After Getting The Deposit |
Type: |
K Type |
Temperature Range: |
-200~1000 |
Application: |
Used To Extend The Signal From A Probe To Instrumentation |

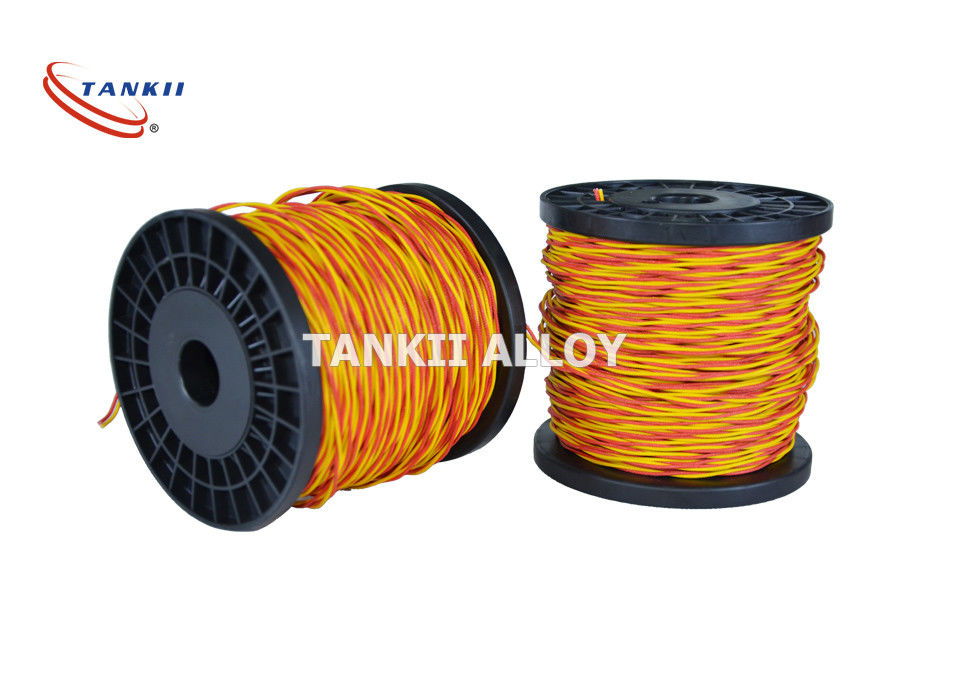

K Type 400 / 600 Degrees Celsius Glass Fiber Thermocouple Extension Cable
| Conductor Name | Type | Applicable thermocouple type |
| Cu-Constantan0.6 | SC or RC | S or R |
| Iron-constantan22 Copper-Constantan40 Chromel-Ni(Alumel) | KCA KCB KX | K |
| Iron-constantan18 NiCr14Si-NiSi4Mg | NC NX | N |
| NiCr10-Constantan45 | EX | E |
| Iron-Constantan 45 | JX | J |
| Copper-Constantan 45 | TX | T |
K Type 400 / 600 Degrees Celsius Glass Fiber Thermocouple Extension Cable
Properties of insulation materials
| Material Type | Continuous Operating Temp. / ℃ | Abrasion Resistance | Chemical Resistance | Moisture Resistance | Solvent Resistance | Flame Resistance |
| PVC | 105 | Very Good | Very Good | Good | Fair | Excellent |
| SILICONE | 200 | Good | Good | Excellent | Excellent | Excellent |
| FEP | 200 | Excellent | Excellent | Excellent | Excellent | Excellent |
| PFA | 260 | Excellent | Excellent | Excellent | Excellent | Excellent |
| PTFE | 260 | Good | Excellent | Excellent | Excellent | Excellent |
| B-GLASS FIBER | 260 | Good | Good | Fair | Good | Good |
| G-GLASS FIBER | 510 | Poor | Good | Good | Excellent | Excellent |
| Q-GLASS FIBER | 704 | Fair | Good | Good | Excellent | Excellent |
| VITREOUS SILICA FIBER | 1100 | Good | Good | Excellent | Excellent | Excellent |
| MINERAL INSULATION* | 1100 | Excellent | Excellent | Good | Excellent | Excellent |
International Color code:
| ASTM | (American Society for Testing and Materials) E 230 |
| ANSI | (American National Standard Institute) MC 96.1 |
| IEC | (European Standard by the International Electrotechnical Commission 584)-1/2/3 |
| DIN | (Deutsche Industrie Normen) EN 60584 -1/2 |
| BS | (British Standards) 4937.1041, EN 60584 - 1/2 |
| NF | (Norme Française) EN 60584 -1/2 - NFC 42323 - NFC 42324 |
| JIS | (Japanese Industrial Standards) C 1602 - C 1610 |
| GOST | (Unification of the Russian Specifications) 3044 |
| Packaging Details | Roll with plastic film wrapped and carton package |
|---|---|
| Delivery Detail | Shipped in 7 ~15 days after payment |
Thermocouple wire With insulation used for extension cable or compensation cable.
