Product Details
Place of Origin: China
Brand Name: Tankii
Certification: Rohs, SGS
Model Number: KX
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiation
Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.
Delivery Time: 7 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000Ton per year
Item: |
Yellow And Red Glass Fiber Insulated K Type Thermocouple Wire 2*0.711mm |
Application: |
Used To Extend The Signal From A Probe To Instrumentation |
Insulation Material: |
Glass Fiber |
Conductor Type: |
Solid |
Standard: |
ANSI |
Leading Time: |
5~7 Days After Getting The Deposit |
Type: |
K Type |
Temperature Range: |
-200~1000 |
Item: |
Yellow And Red Glass Fiber Insulated K Type Thermocouple Wire 2*0.711mm |
Application: |
Used To Extend The Signal From A Probe To Instrumentation |
Insulation Material: |
Glass Fiber |
Conductor Type: |
Solid |
Standard: |
ANSI |
Leading Time: |
5~7 Days After Getting The Deposit |
Type: |
K Type |
Temperature Range: |
-200~1000 |

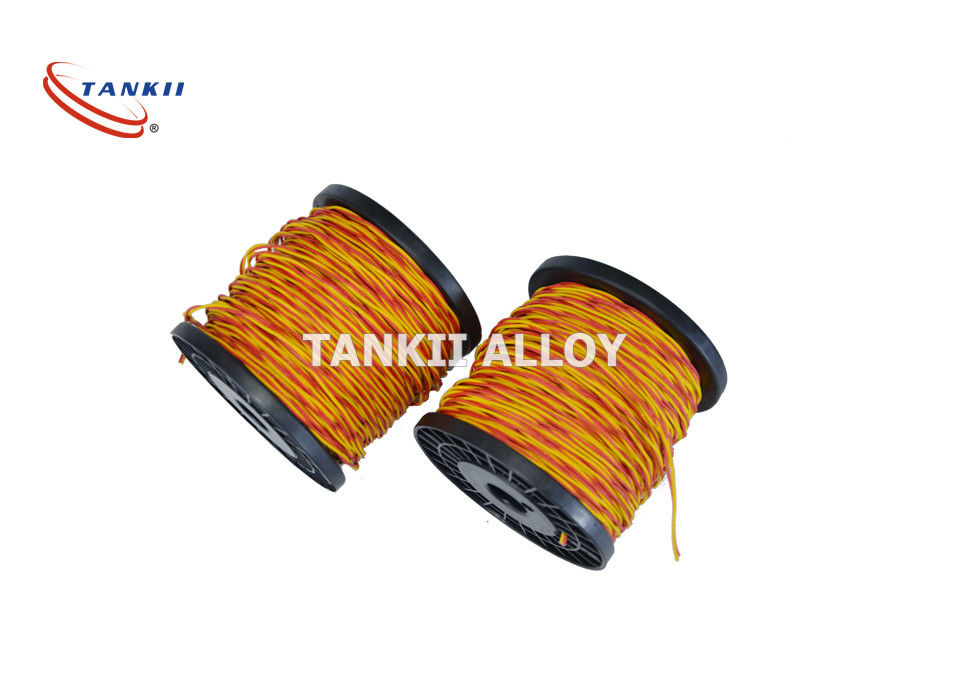

Yellow And Red Glass Fiber Insulated K Type Thermocouple Wire 2*0.711mm
Tankii alloy Thermocouple extension wire is used to extend the signal from a probe to instrumentation such as controllers or recording devices.
Often times, tankii multi pair thermocouple extension cables are preferred in these applications.
Extension wire is designated by an "X" or "C" after the tankii thermocouple type – i.e., EX, JX, KX, SC, TX.
Multi/Cable offers a full line of thermocouple cable & wire in standard limits of error & special limits of error. Thermocouple alloy wires are available in solid or stranded configurations.
Tankii offers a wide variety of insulating, shielding, and jacketing options for tankii single pair thermocouple wire & tankii multipair thermocouple extension cables.
Conductor Name | Type | Applicable thermocouple type |
Cu-Constantan0.6 | SC or RC | S or R |
Iron-constantan22 Copper-Constantan40 Chromel-Ni(Alumel) | KCA KCB KX | K |
Iron-constantan18 NiCr14Si-NiSi4Mg | NC NX | N |
NiCr10-Constantan45 | EX | E |
Iron-Constantan 45 | JX | J |
Copper-Constantan 45 | TX | T |
Yellow And Red Glass Fiber Insulated K Type Thermocouple Wire 2*0.711mm
Properties of insulation materials
Material Type | Continuous Operating Temp. / ℃ | Abrasion Resistance | Chemical Resistance | Moisture Resistance | Solvent Resistance | Flame Resistance |
PVC | 105 | Very Good | Very Good | Good | Fair | Excellent |
SILICONE | 200 | Good | Good | Excellent | Excellent | Excellent |
FEP | 200 | Excellent | Excellent | Excellent | Excellent | Excellent |
PFA | 260 | Excellent | Excellent | Excellent | Excellent | Excellent |
PTFE | 260 | Good | Excellent | Excellent | Excellent | Excellent |
B-GLASS FIBER | 260 | Good | Good | Fair | Good | Good |
G-GLASS FIBER | 510 | Poor | Good | Good | Excellent | Excellent |
Q-GLASS FIBER | 704 | Fair | Good | Good | Excellent | Excellent |
VITREOUS SILICA FIBER | 1100 | Good | Good | Excellent | Excellent | Excellent |
MINERAL INSULATION* | 1100 | Excellent | Excellent | Good | Excellent | Excellent |
International Color code:
ASTM | (American Society for Testing and Materials) E 230 |
ANSI | (American National Standard Institute) MC 96.1 |
IEC | (European Standard by the International Electrotechnical Commission 584)-1/2/3 |
DIN | (Deutsche Industrie Normen) EN 60584 -1/2 |
BS | (British Standards) 4937.1041, EN 60584 - 1/2 |
NF | (Norme Française) EN 60584 -1/2 - NFC 42323 - NFC 42324 |
JIS | (Japanese Industrial Standards) C 1602 - C 1610 |
GOST | (Unification of the Russian Specifications) 3044 |
Packaging Details | Roll with plastic film wrapped and carton package |
---|---|
Delivery Detail | Shipped in 7 ~15 days after payment |
Thermocouple wire With insulation used for extension cable or compensation cable.
