Product Details
Place of Origin: CHINA
Brand Name: TANKII
Certification: ISO9001
Model Number: NiCr8020
Payment & Shipping Terms
Minimum Order Quantity: 10kg
Packaging Details: Carton Box
Delivery Time: 2~5 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000Ton/Year
Item: |

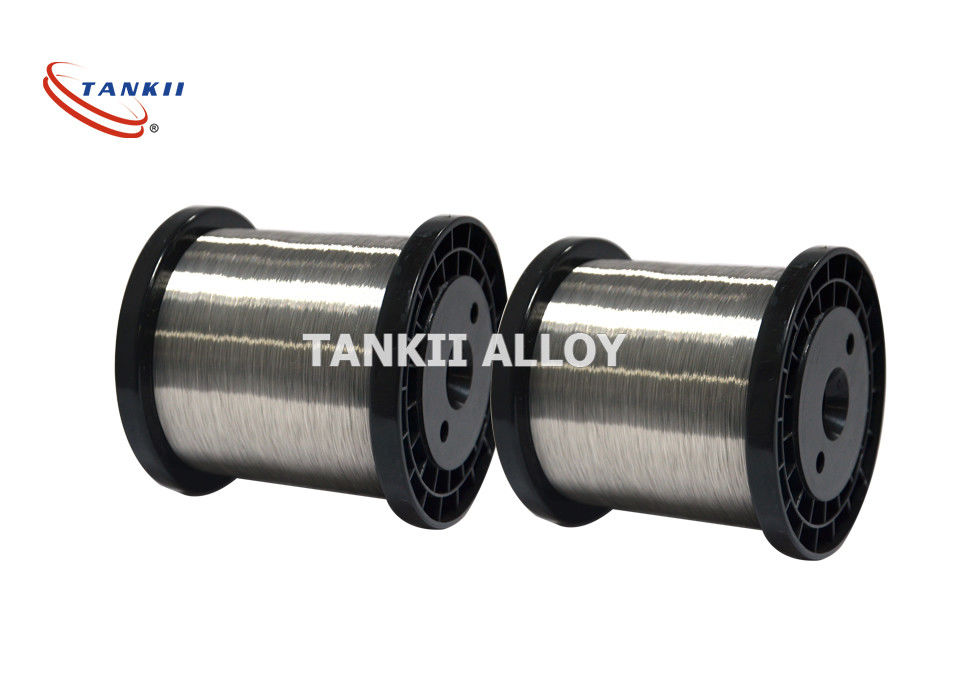

Stranded Nichrome Wire 5*0.287mm Used For Heating Cable |
Material: |
Nickel 80%, Chromium 20% |
Surface: |
Bright |
Pakage: |
On Bobbin |
Item: |
Stranded Nichrome Wire 5*0.287mm Used For Heating Cable |
Material: |
Nickel 80%, Chromium 20% |
Surface: |
Bright |
Pakage: |
On Bobbin |
Nickel Alloy Wire Nichrome 675/NiCr6015
1. About Nichrome NiCr6015 wire
Nichrome alloy NiCr6015 characterized by high resistivity, good oxidation resistance ,good form stability and good ductility and excellent weldability. It is suitable for use at temperatures up to 1150°C.
2. NiCr6015 has many other Grade name:
Ni60Cr15,Chromel C, Nikrothal 60, N6, HAI-NiCr 60, Tophet C, Resistohm 60, Cronifer II,Electroloy, Nichrome, Alloy C, Alloy 675,Nikrothal 6, MWS-675, Stablohm 675,NiCrC
3. Chemical Composition of NiCr6015
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
| Max | |||||||||
| 0.08 | 0.02 | 0.015 | 0.60 | 0.75~1.60 | 15.0~18.0 | 55.0~61.0 | Max 0.50 | Bal. | - |
4. Typical Mechanical properties of Nicr6015
| Yield strength | Tensile Strength | Elongation |
| Mpa | Mpa | % |
| 370 | 730 | 35 |
5.Temperature Factors Of Electrical Resistivity
| 20ºC | 100ºC | 200ºC | 300ºC | 400ºC | 500ºC | 600ºC |
| 1 | 1.011 | 1.024 | 1.038 | 1.052 | 1.064 | 1.069 |
| 700ºC | 800ºC | 900ºC | 1000ºC | 1100ºC | 1200ºC | 1300ºC |
| 1.073 | 1.078 | 1.088 | 1.095 | 1.109 | - | - |
Nickel Alloy Wire Nichrome 675/NiCr6015
1. About Nichrome NiCr6015 wire
Nichrome alloy NiCr6015 characterized by high resistivity, good oxidation resistance ,good form stability and good ductility and excellent weldability. It is suitable for use at temperatures up to 1150°C.
2. NiCr6015 has many other Grade name:
Ni60Cr15,Chromel C, Nikrothal 60, N6, HAI-NiCr 60, Tophet C, Resistohm 60, Cronifer II,Electroloy, Nichrome, Alloy C, Alloy 675,Nikrothal 6, MWS-675, Stablohm 675,NiCrC
3. Chemical Composition of NiCr6015
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
| Max | |||||||||
| 0.08 | 0.02 | 0.015 | 0.60 | 0.75~1.60 | 15.0~18.0 | 55.0~61.0 | Max 0.50 | Bal. | - |
4. Typical Mechanical properties of Nicr6015
| Yield strength | Tensile Strength | Elongation |
| Mpa | Mpa | % |
| 370 | 730 | 35 |
5. Temperature Factors Of Electrical Resistivity
| 20ºC | 100ºC | 200ºC | 300ºC | 400ºC | 500ºC | 600ºC |
| 1 | 1.011 | 1.024 | 1.038 | 1.052 | 1.064 | 1.069 |
| 700ºC | 800ºC | 900ºC | 1000ºC | 1100ºC | 1200ºC | 1300ºC |
| 1.073 | 1.078 | 1.088 | 1.095 | 1.109 | - | - |
