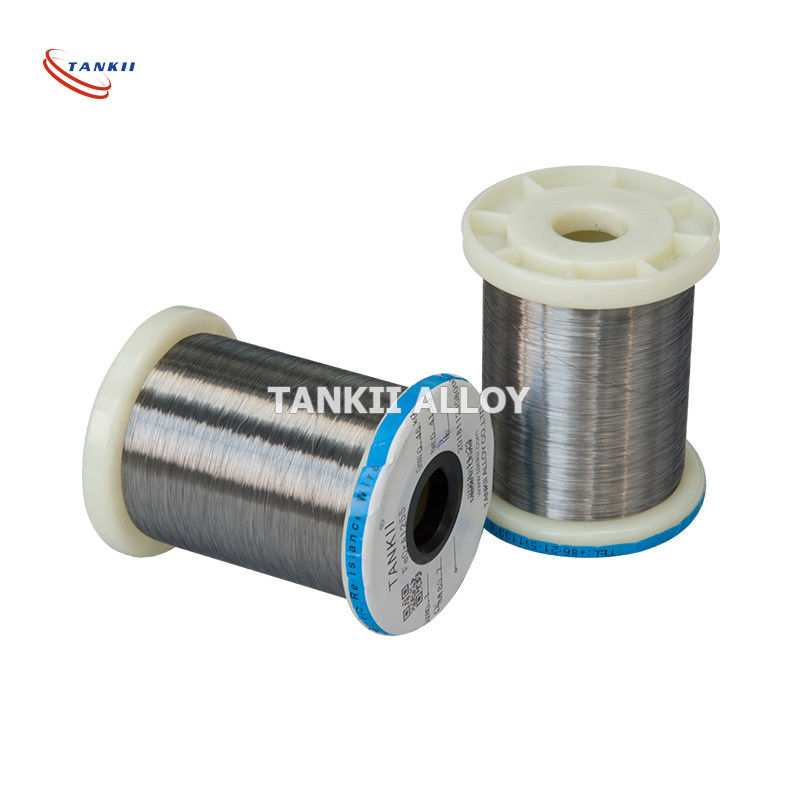

Alchrome 875 FeCrAl Alloy Wire Cold Drawn For Diffusion Furnace

Alchrome 875 FeCrAl Alloy Wire Cold Drawn For Diffusion Furnace

  • Alchrome 875 FeCrAl Alloy Wire Cold Drawn For Diffusion Furnace
Alchrome 875 FeCrAl Alloy Wire Cold Drawn For Diffusion Furnace
Product Details:
Place of Origin: Shanghai
Brand Name: tankii
Certification: DIN, ASTM, JIS
Model Number: Alchrome 875
Payment & Shipping Terms:
Minimum Order Quantity: 20kg
Packaging Details: spool ,coil, or as clients' requirement
Delivery Time: 25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000T/month
Contact Now
Detailed Product Description
Application: Industry Product Name: Alchrome 875
Shape: Wire Material: Alloy
Surface: Bright Treatment: Hot Rolling
Color: As Required Feature: Good Form Stability
Condition: New MOQ: 20KG
High Light:

Alchrome 875 FeCrAl Alloy

,

FeCrAl Alloy Wire

,

Diffusion Furnace Alloy Wire

Alchrome 875 FeCrAl alloy wire
Alchrome 875 large-sized cold-drawn wire products can be used for high-temperature resistance furnace. Practice has
proved that: the product process is stable, integrated performance is good. Has good high temperature oxidation
resistance and longer service life; excellent winding properties at room temperature processing, ease of
processing molding; little rebound resilience and so on. Processing performance is very good; operating
temperature can reach 1400 .
Main specifications and uses:
Conventional Product specifications: 0.5 ~ 10 mm
Uses: mainly used in powder metallurgy furnace, diffusion furnace, radiant tube heater and all kinds of high-
temperature furnace heating body.

Properties Grade


Alchrome 875
Cr Al Re Fe
25.0 6.0 Suitable Balance
Max Continuous ServiceTemperature(ºC)

Diameter 1.0-3.0 Diameter large than 3.0,
1225-1350ºC 1400ºC
Resisivity 20ºC (Omm2/m) 1.45
Density(g/cm 3 ) 7.1
Approximate Melting Point( ºC) 1500
Elongation (%) 16-33
Repeatedly Bend Frequency(F/R)20ºC 7-12
Continuous Service Time under 1350ºC More than 60 hours
Micrographic Structure Ferrite

The relationship between the maximum operating temperature and the furnace atmosphere

Furnace atmosphere Dry Air Humid Air hydrogen-argon gas Argon Decomposition ammonia gas
Temp( ºC) 1400 1200 1400 950 1200
