Product Details
Place of Origin: China Mainland
Brand Name: Tankii
Certification: ISO9001
Model Number: K
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiation
Packaging Details: Standard exoprt package in carton box or wooden case
Delivery Time: 5~20 days as per order qty
Payment Terms: T/T, Paypal, Western Union, MoneyGram,
Supply Ability: 1000Ton per year
TC Wire Standard: |
International |
Main Application: |
Thermocouple Sensor, MI Cable |
EMF Tolerance: |
IEC 60584 Class 1 Or Class 2 |
Wire Size: |
Tailor Made |
Lead Time: |
5~10 Days After Getting The Payment |
Item: |
IEC 60584 Class One 0.1mm To 12mm Thermocouple Wire Types K /J /E/T |
Types: |
K, J, T, N,E |
Wire Pack: |
On Bobbin, Carton Case, Wooden Case |
TC Wire Standard: |
International |
Main Application: |
Thermocouple Sensor, MI Cable |
EMF Tolerance: |
IEC 60584 Class 1 Or Class 2 |
Wire Size: |
Tailor Made |
Lead Time: |
5~10 Days After Getting The Payment |
Item: |
IEC 60584 Class One 0.1mm To 12mm Thermocouple Wire Types K /J /E/T |
Types: |
K, J, T, N,E |
Wire Pack: |
On Bobbin, Carton Case, Wooden Case |

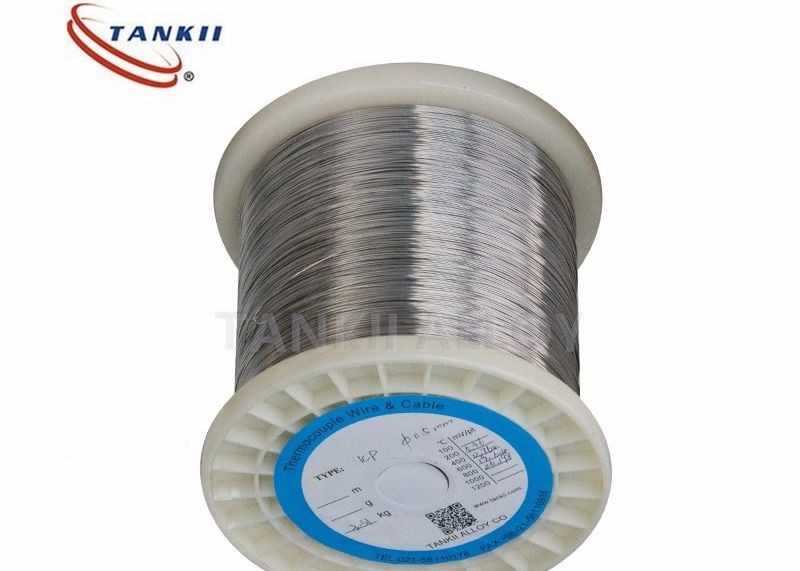

IEC 60584 Class One 0.1mm To 12mm Thermocouple Wire Types K /J /E/T
The simplest thermocouple is made using a bare wire configuration, that is two thermoelements joined at one end and directly exposed to the atmosphere of the operating environment.
Thermocouple wire allows temperatures to be measured electronically. A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.
IEC 60584 Class One 0.1mm To 12mm Thermocouple Wire Types K /J /E/T
Shanghai Tankii Thermocouple wire's Characteristics:
The thermocouple wires have excellent performance and are extensively used in the temperature measurement and control in different fields, such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.
Tankii products conform to the standards of IEC584 -1 and 2.
|
Thermocouple type and index |
Measurement Range ℃ |
|
|
Type |
Index |
|
|
|
B | 600~1700 |
|
|
R | 0~1600 |
|
|
S | 0~1600 |
|
|
K | -200~1300 |
|
|
E | -200~900 |
|
|
J | -40~750 |
|
|
T | -200~350 |
|
|
N | -200~1300 |
The allowable grade and Tolerance are obtained at 0℃
|
Thermocouple |
Grade |
Temperature range |
Allowable Tolerance /℃ |
| Type B | Ⅱ | 600~1700 | ±0.25% t |
| Ⅲ | 600~800 | ±4 | |
| 800~1700 | ±0.5%t | ||
| Type R(S) | Ⅰ | 0~1100 | ±1 |
| 1100~1600 | ±[1+(t－1100) ×0.3％] | ||
| Ⅱ | 0~600 | ±1.5 | |
| 600~1600 | ±0.25% t | ||
| Type K and Type N | Ⅰ | -40~1100 | ±1.5℃ or ±0.4%t |
| Ⅱ | -40~1300 | ±2.5℃ or ±0.75%t | |
| Ⅲ | -200~40 | ±2.5℃ or ±1.5%t | |
| Type E | Ⅰ | -40~1100 | ±1.5℃ or ±0.4%t |
| Ⅱ | -40~1300 | ±2.5℃ or ±0.75%t | |
| Ⅲ | -200~40 | ±2.5℃ or ±1.5%t | |
| Type J | Ⅰ | -40~750 | ±1.5℃ or ±0.4%t |
| Ⅱ | -40~750 | ±2.5℃ or ±0.75%t | |
| Type T | Ⅰ | -40~350 | ±0.5℃ or ±0.4%t |
| Ⅱ | -40~350 | ±1.0℃ or ±0.75%t | |
| Ⅲ | -200~40 | ±1.0℃ or ±1.5%t |
Product packing details:
