Product Details
Place of Origin: Shanghai
Brand Name: Tankii
Certification: DIN, ASTM, JIS
Model Number: 0Cr27Al7Mo2
Payment & Shipping Terms
Minimum Order Quantity: 20kg
Packaging Details: spool ,coil, or as clients' requirement
Delivery Time: 25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000T/month
Application: |
Furnace Heating |
Type: |
Alloy |
Material: |
FeCrAl |
Dimensions: |
As Required |
Surface: |
Bright |
Color: |
As Client's Requirement |
Feature: |
Good Form Stability |
Condition: |
Soft Annealed |
Resistivity: |
1.35+/-0.06 |
Tensile Strength: |
680-830N/MM2 |
Application: |
Furnace Heating |
Type: |
Alloy |
Material: |
FeCrAl |
Dimensions: |
As Required |
Surface: |
Bright |
Color: |
As Client's Requirement |
Feature: |
Good Form Stability |
Condition: |
Soft Annealed |
Resistivity: |
1.35+/-0.06 |
Tensile Strength: |
680-830N/MM2 |

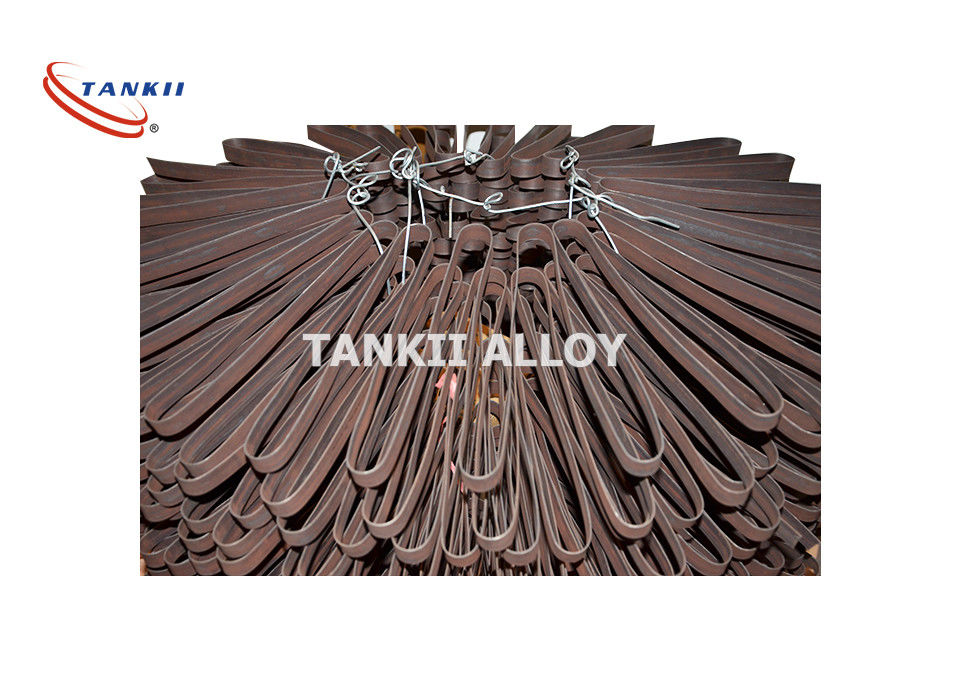

0Cr27Al7Mo2 FeCrAl Alloy for Electrical Heating Elements and Industrial Furnaces
0Cr27Al7Mo2
Iron-chromium-aluminium (FeCrAl) alloys
FeCrAl alloys are characterized by excellent oxidation resistance and very good form stability resulting in long element life.
They are typically used in electrical heating elements in industrial furnaces and home appliances.
Fe-Cr-Al alloy with high resistivity and serviceability temperature than that for NiCr alloy and also has lower price.
Forms:wire, bar, strip,sheet/plate,forging,tube/pipe,etc.
Main technical characteristics of FeCrAl Alloy:
|
Brand Property |
1Cr13Al4 | 1Cr21Al4 | 0Cr21Al6 | 0Cr23Al5 | 0Cr25Al5 | 0Cr21Al6Nb | 0Cr27Al7Mo2 | |
| Major chemical component% | Cr | 12.0-12.5 | 17.0-21.0 | 19.0-22.0 | 20.5-23.5 | 23.0-26.0 | 21.0-23.0 | 26.5-27.8 |
| Al | 4.0-6.0 | 2.0-4.0 | 5.0-7.0 | 4.2-5.3 | 4.5-6.5 | 5.0-7.0 | 6.0-7.0 | |
| Fe | Balance | Balance | Balance | Balance | Balance | Balance | Balance | |
| Re |
Appro priate |
Appro priate |
Appro priate |
Appro priate |
Appro priate |
Appro priate |
Appro priate |
|
| Addition Nb:0.5 |
Addition Mo:1.8-2.2 |
|||||||
| Component max. use temperature | 950 | 1100 | 1250 | 1250 | 1250 | 1350 | 1400 | |
| Melting Point | 1450 | 1500 | 1500 | 1500 | 1500 | 1510 | 1510 | |
| Density g/cm3 | 7.40 | 7.35 | 7.16 | 7.25 | 7.10 | 7.10 | 7.10 | |
| Resistivity μΩ·m,20 | 1.25±0.08 | 1.23±0.06 | 1.42±0.07 | 1.35±0.06 | 1.45±0.07 | 1.45±0.07 | 1.53±0.07 | |
| Tensile Strength Mpa | 588-735 | 637-784 | 637-784 | 637-784 | 637-784 | 637-784 | 684-784 | |
| Extension rate% | 16 | 12 | 12 | 12 | 12 | 10 | ||
| Repeated bending frequency | 5 | 5 | 5 | 5 | 5 | |||
| Fast lift h/ | - | 80/1300 | 80/1300 | 50/1350 | ||||
| Specific Heat J/g. | 0.490 | 0.490 | 0.520 | 0.460 | 0.494 | 0.494 | 0.494 | |
| Heat Conduction Coefficient KJ/M.h | 52.7 | 46.9 | 63.2 | 60.1 | 46.1 | 46.1 | 45.2 | |
|
Linear expansion coefficient aX10-6/ (20-1000) |
15.4 | 13.5 | 14.7 | 15.0 | 16.0 | 16.0 | 16.0 | |
| Hardness HB | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | |
| Microstructure | Ferritic | Ferritic | Ferritic | Ferritic | Ferritic | Ferritic | Ferritic | |
| Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | |
.
0Cr27Al7Mo2
Chemical Content, %
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other | |
| Max | ||||||||||
| 0.05 | 0.025 | 0.020 | 0.20 | ≤0.4 | 26.5-27.8 | ≤0.60 | 6.0-7.0 | Balance | - | |
Mechanical Properties
|
Max Continuous Service Temperature: Resisivity 20ºC: Density: Thermal Conductivity: Coefficient of Thermal Expansion: Melting Point: Elongation: Micrographic Structure: Magnetic Property: |
1400ºC 1.53+/-0.07ohm mm2/m 7.1g/cm3 46.1 KJ/m·h·ºC 16.0*10-6/ºC (20ºC~1000ºC) 1520ºC Min 12% Ferrite magnetic |
Temperature Factor of Electrical Resistivity
| 20ºC | 100ºC | 200ºC | 300ºC | 400ºC | 500ºC | 600ºC |
| 1.000 | 0.992 | 0.986 | 0.981 | 0.978 | 0.976 | 0.974 |
| 700ºC | 800ºC | 900ºC | 1000ºC | 1100ºC | 1200ºC | 1300ºC |
| 0.972 | 0.970 | 0.969 | 0.968 | 0.968 | 0.967 | 0.967 |
Shanghai Tankii Alloy Material Co., Ltd. Focus on the production of resistance alloy(nichrome Alloy, FeCrAl Alloy, copper nickel alloy, thermocouple wire, precision alloy and thermal spray alloy in the form of wire, sheet, tape, strip, rod and plate. We've already got ISO9001 quality system certificate and approval of ISO14001 environmental protection system. We own a complete set of advanced production flow of refining, cold reduction, drawing and heat treating etc. We also proudly have independent R&D capacity.
Shanghai Tankii Alloy Material Co., Ltd has accumulated lots of experiences over 35 years in this field. During these years, more than 60 management elites and high science and technology talents were employed. They participated in every walk of the company life, which make our company keep blooming and invincible in the competitive market. Based on the principle of "first quality, sincere service", our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.
Our products, such us nichrome alloy, precision alloy, thermocouple wire, fecral alloy, copper nickel alloy, thermal spray alloy have been exported to over 60 countries in the world. We are willing to establish strong and long-time partnership with our customers. Most complete range of products dedicated to Resistance, Thermocouple and Furnace manufacturers Quality with end to end production control Technical support and Customer Service.
