0.015mm Manganese Copper Alloy For Wheatstone Bridges

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: Rohs

Model Number: 6J12

Payment & Shipping Terms

Minimum Order Quantity: 20kg per size

Price: USD19~25/kg

Packaging Details: Waterproof packing, in Wooden case

Delivery Time: 5~15 days as per the order qty

Payment Terms: T/T, Western Union

Supply Ability: 1000tons per year

Get Best Price
Contact Now
Specifications
Highlight:

0.015mm Manganese Copper Alloy

,

Wheatstone Bridges Manganese Copper Alloy

,

6J13 Manganese Copper Alloy

Item:
Manganese Copper Alloy 6J12 0.015mm Foil /Strip For Wheatstone Bridges
Max Temperature:
10~80
Density:
8.4g/cm3
Resistivity:
44
Item:
Manganese Copper Alloy 6J12 0.015mm Foil /Strip For Wheatstone Bridges
Max Temperature:
10~80
Density:
8.4g/cm3
Resistivity:
44
Description
0.015mm Manganese Copper Alloy For Wheatstone Bridges

Manganese Copper Alloy 6J12 0.015mm Foil /Strip For Wheatstone Bridges

1. Description

Manganin is a copper-manganese-nickel resistance alloy. It combines all the properties required of a precision electrical resistance alloy such as high resistivity, low temperature coefficient of resistance, very low thermal effect against copper and good performance of electrical resistance over long periods of time.



Parements of Manganin material:

Item 6J8 6J12 6J13
Resistivity 0.35±0.05 0.47±0.03 0.44±0.04
TCRx10-6/°c -5~+10 -10~+20 0~40
EMF V S Cu(0-100°c)uv/°c ≤2 ≤1 ≤2
Density(g/cm3) 8.7 8.4 8.4
Melting point (°c) 960 960 960
Tensile strength(MPa) 490--539 490--539 490--539
Elongation(%) 10-30 10-30 10-30
Service temperature(°c) 10-80 5-45 10-80





Product Designations: 6J12, 6J13, 6J40 etc.



Main chemical composition :

Alloy type Cu Mn Ni
6J8 rest 8-10 /
6J12 rest 11-13 2-3
6J13 rest 11-13 2-5




Shunt Manganin widely used for Shunt resistor with the highest requirements, shunt manganin has been used in precision built electrical components such as Wheatstone bridges, decade boxes, voltage drivers, potentiometers and resistance standards.

Tankii's manganin/constantan in our company belongs to copper-manganese alloy. Compared with traditional manganin/constantan, it has high dimensional accuracy, excellent processability, stable resistivity, and its material utilization could increase by more than 50% in the manufacturing process.

Manganin has good piezoresistive effect and is widely used in pressure measurement in high temperature and high pressure environments such as detonation, high-speed impact, dynamic fracture, new material synthesis and so on.

Tankii can supply foil, strip, sheet, wire, ribbon etc.

2. Characteristics:

Small temperature coefficient of resistance,
Low identical electromotive force
Special excellent resistance stability
Good welding performance
Good machining performance,






In the electrical and instrument measuring technology as well as the benchmark unit with a resistor is widely used.

Manganese copper alloy has good welding performance and machining performance, can form the fine silk, rolling piece, foil, but poor corrosion resistance and oxidation resistance.



3. Packing detail

1). Coil (plastic spool) + compressed ply-wooden case + pallet
2). Coil (plastic spool) + carton + pallet
3. Products and services



4. Why pick us?

1. Good Quality

2. Fast shipment

3. Small MOQ

4. Good reputation in the international market

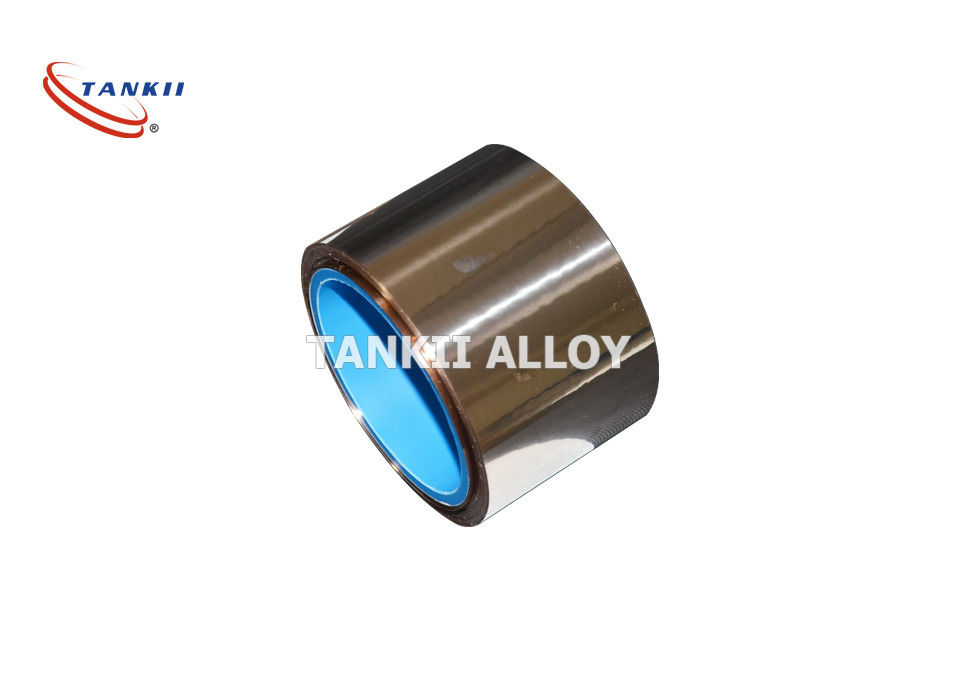

0.015mm Manganese Copper Alloy For Wheatstone Bridges 0

0.015mm Manganese Copper Alloy For Wheatstone Bridges 1



0.015mm Manganese Copper Alloy For Wheatstone Bridges 20.015mm Manganese Copper Alloy For Wheatstone Bridges 3

0.015mm Manganese Copper Alloy For Wheatstone Bridges 4
