Product Details
Place of Origin: China
Brand Name: Tankii
Certification: ISO9001
Model Number: N6 pure nickel wire
Payment & Shipping Terms
Minimum Order Quantity: 10 kg
Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.
Delivery Time: 10-15 days after getting the payment
Payment Terms: T/T, Paypal, Western Union, MoneyGram,
Supply Ability: 1000Ton per year
Material: |
99.6% Nickel Wire |
Surface: |
Red Color |
Diameter: |
Customized |
MOQ: |
5kg Per Size |
Leading Time: |
35 Days |
Payment: |
50% Deposit In Advance, The Balance Paid Against Ci |
Material: |
99.6% Nickel Wire |
Surface: |
Red Color |
Diameter: |
Customized |
MOQ: |
5kg Per Size |
Leading Time: |
35 Days |
Payment: |
50% Deposit In Advance, The Balance Paid Against Ci |
Product Description:
Rohs Certified Enameled Pure Nickel Wire N6 0.025mm To 0.5mm With Red Color
According to the purpose of enamelled wire,there are three kinds of enameled wire :
1. General purpose enamelled wire (ordinary wire): it is mainly used for winding wires in general motors, electrical appliances, instruments, transformers and other working places, such as polyester enamelled wire and modified polyester enamelled wire.
2.Heat resistant enamelled wire: it is mainly used for winding wires of motors, electrical appliances, instruments, transformers and other working places working at 180 ℃ and above, such as polyester imide enamelled wire, polyimide enamelled wire, polyester enamelled wire and polyester imide / polyamide imide composite enamelled wire.
3. Special purpose enamelled wire: refers to the winding wire with certain quality characteristic requirements and used in specific occasions, such as polyurethane enamelled wire (direct weldability) and self-adhesive enamelled wire.
Rohs Certified Enameled Pure Nickel Wire N6 0.025mm To 0.5mm With Red Color
Type of bare conductor wire
The alloy we can do enamelled are Copper-nickel alloy wire,Constantan wire,Manganin wire. Kama Wire,NiCr Alloy wire,FeCrAl Alloy wire etc alloy wire
Round wire:0.025mm~3.0mm
Color of enamel insulation:Red,Green,Yellow,Black,Blue,Nature etc.
Moq:5kg each size
Enameled wire conductors:
| Copper-nickel alloy wire, | Constantan Wire,CuNi1~CuNi44 | |
| Ni-Cr Alloy wire | NiCr35/20,NiCr70/30,NiCr60/15,NiCr80/20,NiCr90/10,NiCr AA,Karma. | |
| Fe-Cr-Al Alloy wire | Cr13Al4,Cr21Al4,Cr21Al6,Cr23Al5,Cr25Al5, Cr21Al6Nb,Cr27Al7Mo2, |
|
| Cu-Ni-Mn Alloy wire | CuMn12Ni2,CuMn12Ni4,Manganin | |
| Stainless steel Wire | ||
| Silver | Purity 9.99% | |
| golden Wire | ||
| Any copper alloy and nickel alloy is available | ||
Type of insulation
| Insulation-enamelled Name | Thermal LevelºC (working time 2000h) |
Code Name | GB Code | ANSI. TYPE |
| Polyurethane enamelled wire | 130 | UEW | QA | MW75C |
| Polyester enamelled wire | 155 | PEW | QZ | MW5C |
| Polyester-imide enamelled wire | 180 | EIW | QZY | MW30C |
| Polyester-imide and polyamide-imide double coated enameled wire | 200 | EIWH (DFWF) |
QZY/XY | MW35C |
| Polyamide-imide enamelled wire | 220 | AIW | QXY | MW81C |

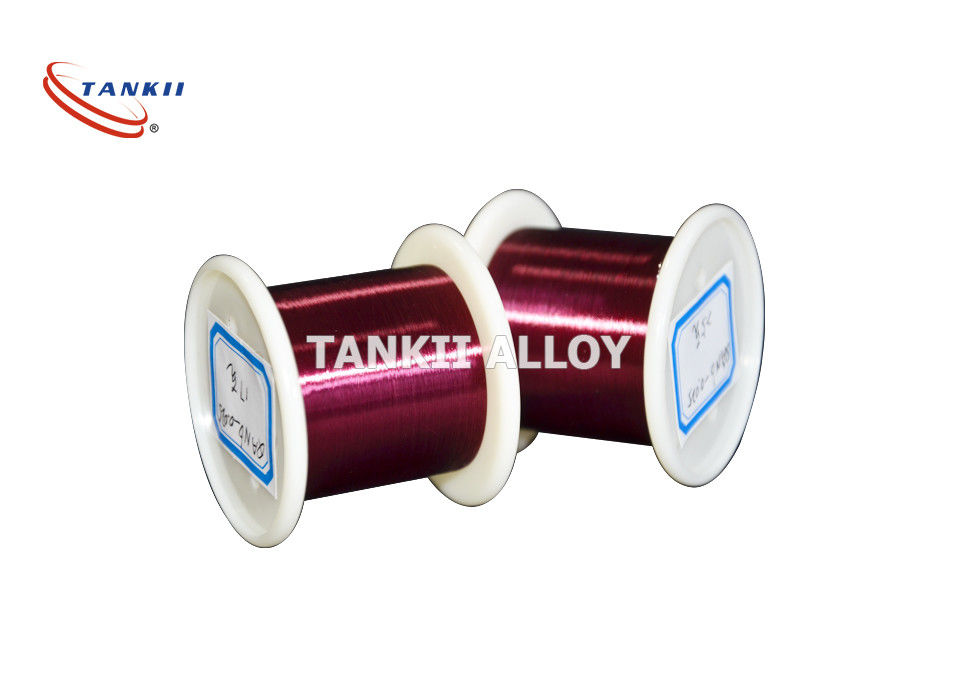

Rohs Certified Enameled Pure Nickel Wire N6 0.025mm To 0.5mm With Red Color
Rohs Certified Enameled Pure Nickel Wire N6 0.025mm To 0.5mm With Red Color
