Product Details
Place of Origin: China
Brand Name: Tankii
Certification: ISO9001
Model Number: N6 pure nickel wire
Payment & Shipping Terms
Minimum Order Quantity: 10 kg
Price: Negotiable
Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.
Delivery Time: 10-15 days after getting the payment
Payment Terms: T/T, Paypal, Western Union, MoneyGram,
Supply Ability: 1000Ton per year
Item: |
Composite Insulation Coating Enameled Wire For Chemical Engineering |
MOQ: |
2kg Per Size |
Leading Time: |
10~40 Days |
Conductor: |
NiCr Allpy. Copper Alloy |
Item: |
Composite Insulation Coating Enameled Wire For Chemical Engineering |
MOQ: |
2kg Per Size |
Leading Time: |
10~40 Days |
Conductor: |
NiCr Allpy. Copper Alloy |

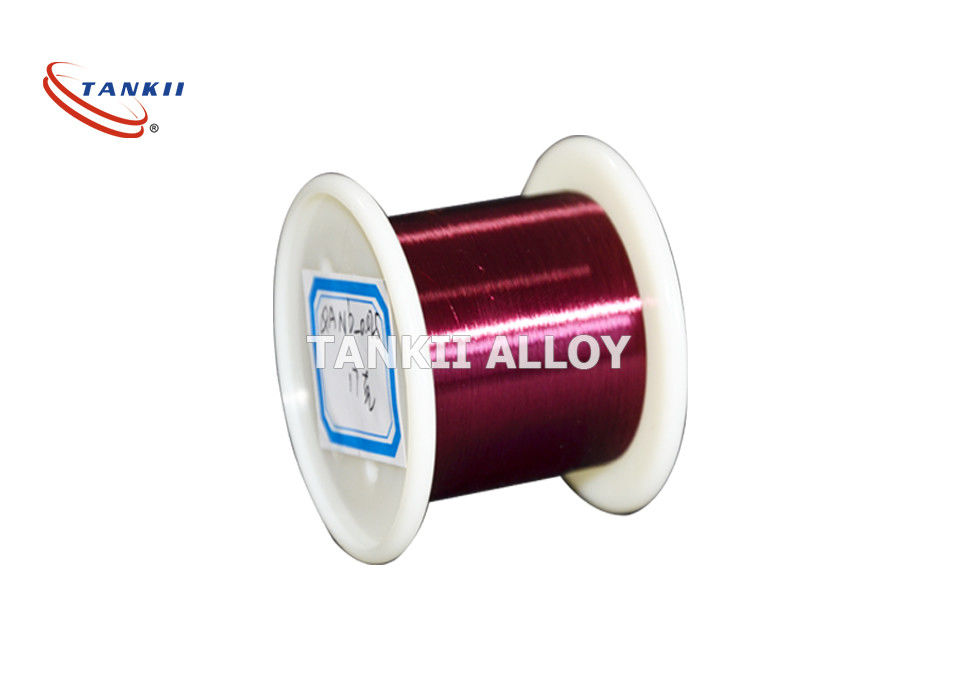

Composite Insulation Coating Enameled Wire For Chemical Engineering
Product standard of enamelled round wire: GB6109-90 series standards
Polyurethane coating wire paint was developed by Bayer in 1937. It has the characteristics of direct welding, high frequency resistance and dyeing, so it has been widely used in the fields of electronics and electrical appliances. At present, foreign countries pay great attention to the improvement of heat resistance grade of polyurethane coating line without affecting its direct welding performance
Nickel has high chemical stability and good corrosion resistance in many media.
Its standard electrode position is -0.25V, which is positive than iron and negative than copper.
Nickel exhibits good corrosion resistance in the absence of dissolved oxygen in dilute non-oxidized properties (e.g., HCU, H2SO4), especially in neutral and alkaline solutions.This is because nickel has the ability to passivate, forming a dense protective film on the surface, which prevents nickel from further oxidation.
These enameled resistance wires have been broadly used for standard resistors, automobile parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.
Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.
Enameled wire conductor:
| Copper-nickel alloy wire, | Constantan Wire,CuNi1~CuNi44 | |
| Ni-Cr Alloy wire | NiCr35/20,NiCr70/30,NiCr60/15,NiCr80/20,NiCr90/10,NiCr AA,Karma. | |
| Fe-Cr-Al Alloy wire | Cr13Al4,Cr21Al4,Cr21Al6,Cr23Al5,Cr25Al5, Cr21Al6Nb,Cr27Al7Mo2, |
|
| Cu-Ni-Mn Alloy wire | CuMn12Ni2,CuMn12Ni4,Manganin | |
| Stainless steel Wire | ||
| Silver | Purity 9.99% | |
| golden Wire | ||
| Any copper alloy and nickel alloy is available | ||
Type of insulation
| Insulation-enamelled Name | Thermal LevelºC (working time 2000h) |
Code Name | GB Code | ANSI. TYPE |
| Polyurethane enamelled wire | 130 | UEW | QA | MW75C |
| Polyester enamelled wire | 155 | PEW | QZ | MW5C |
| Polyester-imide enamelled wire | 180 | EIW | QZY | MW30C |
| Polyester-imide and polyamide-imide double coated enameled wire | 200 | EIWH (DFWF) |
QZY/XY | MW35C |
| Polyamide-imide enamelled wire | 220 | AIW | QXY | MW81C |
