Product Details
Place of Origin: Shanghai
Brand Name: tankii
Certification: DIN, ASTM, JIS
Model Number: NCr3-5-1.5
Payment & Shipping Terms
Minimum Order Quantity: 20kg
Price: 15-30$
Packaging Details: spool ,coil, or as clients' requirement
Delivery Time: 25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000T/month
Port: |
Shanghai |
Grade: |
NiCrAlloy |
Application: |
Spar Plug |
Elongation: |
20% |
Powder Or Not: |
Not Powder |
Surface: |
Polished |
Shape: |
Round Wire |
Material: |
Nickel Chrome |
Condition: |
Soft Annealed |
MOQ: |
20KG |
Port: |
Shanghai |
Grade: |
NiCrAlloy |
Application: |
Spar Plug |
Elongation: |
20% |
Powder Or Not: |
Not Powder |
Surface: |
Polished |
Shape: |
Round Wire |
Material: |
Nickel Chrome |
Condition: |
Soft Annealed |
MOQ: |
20KG |
Sparking plug electrode nickel alloy
Nickel alloy: NMn2-1.8-1.8, NMn4-1, NCi-5-3-1.8, NCr2-1-0.5, NCr1.5-1.5-0.5
NiMnSiCr alloy wire-(NMn2-1.8-1.8), has good refractory, oxidation resistance, physical and mechanical properties and process ability. It is used as the spark plug central electrode, which can perform both good electrical conductivity and heat conductivity.
NiMnSi alloy wire (NMn4-1), has corrosion resistance of high temperature gas, anti-ablation, good heat conductivity, with appropriate strength and hardness, it can be processed into flat wire in different sizes, used as the side electrode of the spark plug.
NiCrMnSi alloy (NCr5-3-1.8), has good refractory, oxidation resistance, physical and mechanical properties and process ability. It is used as the spark plug central electrode.

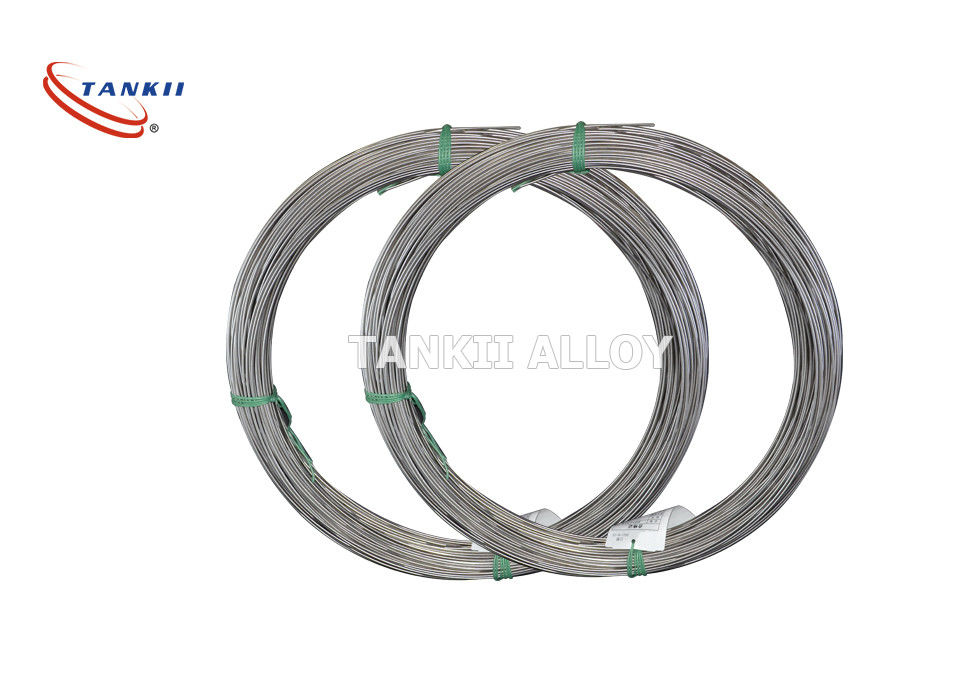

Nickel Alloy Wires NCr3-5-1.5 For Sparking Plug Electrode
Application:
As the central electrode and side electrode of Automobile & motorcycle spark plug.
Nickel alloy Grade for spark plug electrode
| Product Name | Grade | Diameter range, mm |
| NiCrMnSi alloy wire | NCr5-3-1.8 | 1.0~6.0 |
| NiCrFe alloy wire | NCr-15-8 | 1.0~6.0 |
| NiMnSiCr alloy wire | NCr1.5-1.5-0.5 | 1.0~6.0 |
| NiCrMnSi alloy wire | NCr2-1-0.5 | 1.0~6.0 |
| NiCrMnSi alloy wire | NMn2-1.8-1.8 | 1.0~6.0 |
Nominal Chemical Composition:
| Grade | Main chemical composition, % | Impurity ≤ % | |||||||
| Ni+Co ≥ |
Cr | Mn | Si | Fe | Cu | S | C | Fe | |
| NCr5-3-1.8 | 88.0 | 4.5~5.5 | 2.5~3.5 | 1.5~2.0 | -- | 0.2 | 0.1 | 0.1 | 0.5 |
| NCr-15-8 | 72.0 | 14.0~17.0 | 0.2~1.0 | 0.1~0.5 | 6.0~10.0 | 0.5 | 0.015 | 0.15 | -- |
| NCr1.5-1.5-0.5 | 95.0 | 1.40~1.80 | 1.3~1.8 | 0.4~0.65 | -- | 0.15 | 0.005 | 0.05 | 0.3 |
| NCr2-1-0.5 | 94.0 | 1.50~2.00 | 1.5~2.0 | 0.5~1.0 | -- | 0.15 | 0.05 | 0.1 | 0.4 |
| NMn2-1.8-1.8 | 92.0 | 1.50~2.00 | 1.5~2.5 | 1.5~2.0 | -- | 0.15 | 0.07 | 0.07 | 0.4 |
