Product Details
Place of Origin: China mainland
Brand Name: Tankii
Certification: ISO9001
Model Number: K type thermocouple cable
Payment & Shipping Terms
Minimum Order Quantity: 10 Meters
Price: Negotiation
Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000Ton per year
Item: |
K Type High Temperature Thermocouple MI Cable Simplex MgO Insulated 1.5mm To 12.7mm |
Insulation Material: |
MgO |
Conductor Type: |
Solid Or Multi |
Standard: |
ANSI, IEC |
Leading Time: |
5~7 Days |
Shipping: |
By DHL/FedEx/TNT/UPS |
Item: |
K Type High Temperature Thermocouple MI Cable Simplex MgO Insulated 1.5mm To 12.7mm |
Insulation Material: |
MgO |
Conductor Type: |
Solid Or Multi |
Standard: |
ANSI, IEC |
Leading Time: |
5~7 Days |
Shipping: |
By DHL/FedEx/TNT/UPS |
Tankii Mineral Insulated Cable (MI cable), comprising a metal sheath in which the conductors are embedded in highly compressed magnesium oxide insulation.
Sheath material:
SS304, SS321, SS316, SS310, INCL600
OD: 0.5~12.7mm
Core number:
Simplex,
Duplex,
Triplex
Tankii Mineral Insulated Cable (MI cable), comprising a metal sheath in which the conductors are embedded in highly compressed magnesium oxide insulation.
Usually, the conductors (copper or thermocouple wires) are embedded in MgO and pressed into a metal tube made of oxidation and corrosion resistant material.
The entire combination is then rolled under pressure to achieve the desired diameter.
Magnesium oxide makes an excellent electrical insulation material because it resists oxidation and ionizing radiation, and it is both chemically and physically stable at high temperatures.
The outer sheath protects the internal conductor from heat, chemical or other environmental damage.
Tankii MI cables are designed for high-temperature applications and used wherever in a particularly strict requirements with regard to mechanical, chemical and electrical stability.

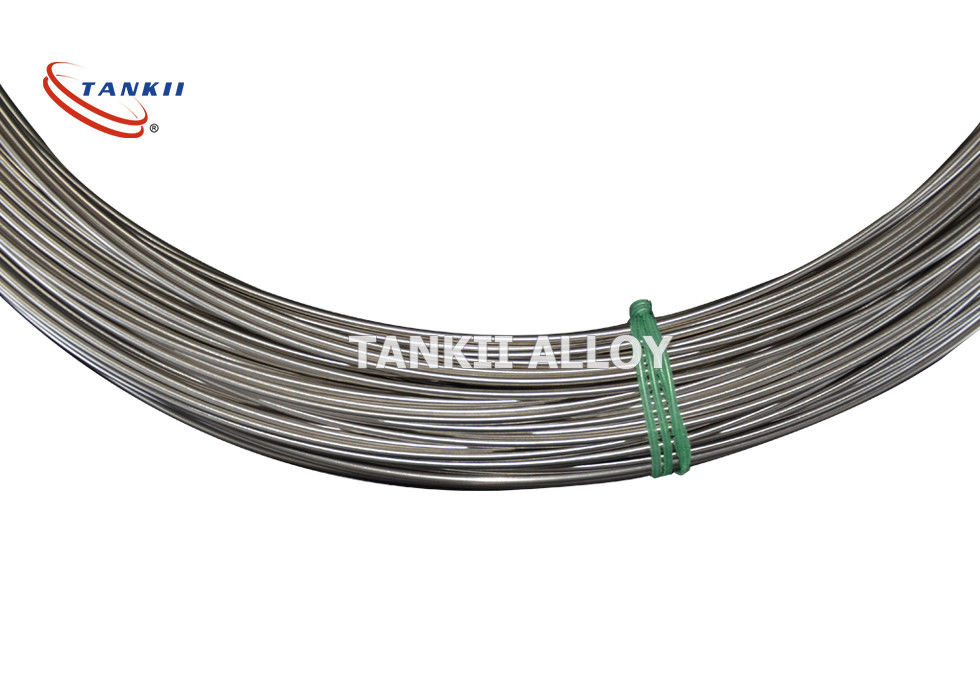

K Type High Temperature Thermocouple MI Cable Simplex MgO Insulated 1.5mm To 12.7mm
Structure
Conductor: Positive Ni-Cr, Negative Ni-Si
Insulation: Mineral
Jacket: Stainless steel, inconel
K Type High Temperature Thermocouple MI Cable Simplex MgO Insulated 1.5mm To 12.7mm
|
Type |
Class of Accuracy | |||||
| I | II | III | ||||
| Tolerance | Temp-℃ | Tolerance | Temp-℃ | Tolerance | Temp-℃ | |
| K | ±1.5℃ or ±0.4% t | -40~1000 | ±2.5℃ or ±0.75% t | -40~1000 | ±2.5℃ or ±1.5% t | -200~40 |
| E | -40~1000 | -40~1000 | -200~40 | |||
| N | -40~800 | -40~800 | -200~40 | |||
| J | -40~750 | -40~750 | -200~40 | |||
| T | ±0.5℃ or ±0.4% t | -40~350 | ±1.0℃ or ±0.75% t | -40~400 | ±1.0℃ or ±1.5% t | -200~40 |
| Packaging Details | Roll with plastic film wrapped and carton package |
|---|---|
| Delivery Detail | Shipped in 7 days after payment |
Application: thermocouple sensors
