Low Carbon Thermal Bimetallic Strip Mn72Ni10Cu18 0.08 Resistivity

Product Details

Place of Origin: Shanghai

Brand Name: TANKII

Certification: ISO9001

Model Number: 8SP

Payment & Shipping Terms

Minimum Order Quantity: 100kg

Price: negotiable

Packaging Details: standard packing

Delivery Time: 8-20 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 180+ton+per month

Get Best Price
Contact Now
Specifications
Highlight:

Low Carbon Thermal Bimetallic Strip

,

Thermal Protector Bimetallic Strip

,

Mn72Ni10Cu18 Bimetallic Strip

Component:
Ni36 Mn72Ni10Cu18
Carbon Content:
Low Carbon
Density:
8.G/cm³
Modulus Of Elasticity:
1.38
Resistivity:
0.08
Allows The Use Of Temperature:
-70~260
Usage:
Thermal Protector
Linear Temperature:
-20~200
Temperature Curvature:
37.3%±5%
Component:
Ni36 Mn72Ni10Cu18
Carbon Content:
Low Carbon
Density:
8.G/cm³
Modulus Of Elasticity:
1.38
Resistivity:
0.08
Allows The Use Of Temperature:
-70~260
Usage:
Thermal Protector
Linear Temperature:
-20~200
Temperature Curvature:
37.3%±5%
Description
Low Carbon Thermal Bimetallic Strip Mn72Ni10Cu18 0.08 Resistivity

8SP Thermal bimetal alloy strip

overview

Thermal bimetal strip is by the different expansion coefficient of two or more than two layers of metal or metal solid combination, and along the entire interface varies with temperature and the thermal function of shape changes in composite materials.One of high expansion coefficient become active layer, low expansion coefficient becomes passive.When requirements with high resistivity, but heat sensitive resistance performance is essentially the same type of thermal bimetal series, can be added between the two layers of different thickness of middle layer as a shunt layer, is to achieve the purpose of control different resistivity.

The basic characteristic of the thermal bimetal is changing with temperature and temperature deformation, resulting in a certain moment.Many devices use this feature to convert heat energy into mechanical work to achieve automatic control.Thermal bimetal used for control system and temperature sensor in the measuring instrument.

Main features: Linear temperature range is higher, low thermal performance, can be used at high temperature.

performance

Than bending K(20~135ºC)Temperature curvature
F/(greenhouse ~ 130 ºC)
resistivityLinear temperature
/ ºC
Allows the use of temperature / ºCDensity (g/cm after)
Nominal valueAllowable deviationStandard valuesAllowable deviation
Level 1Level 2
19.7±8%±10%37.3%±10%0.06±5%-20~200-70~2608.0

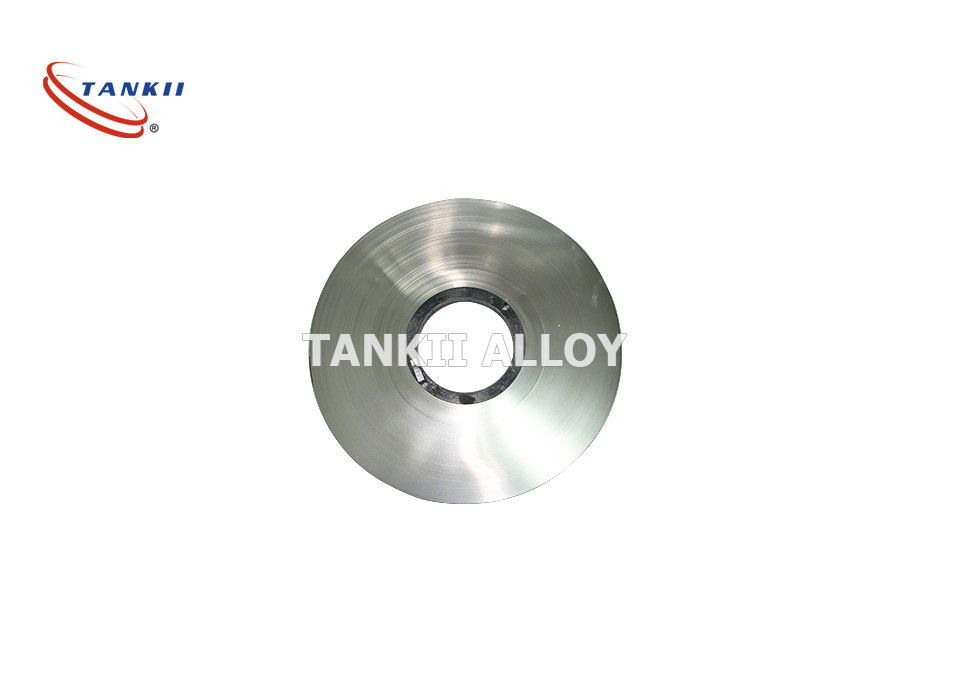

Low Carbon Thermal Bimetallic Strip Mn72Ni10Cu18 0.08 Resistivity 0Low Carbon Thermal Bimetallic Strip Mn72Ni10Cu18 0.08 Resistivity 1Low Carbon Thermal Bimetallic Strip Mn72Ni10Cu18 0.08 Resistivity 2Low Carbon Thermal Bimetallic Strip Mn72Ni10Cu18 0.08 Resistivity 3Low Carbon Thermal Bimetallic Strip Mn72Ni10Cu18 0.08 Resistivity 4
