Product Details
Place of Origin: Shanghai
Brand Name: Tankii
Model Number: 4J29
Payment & Shipping Terms
Minimum Order Quantity: 20kg
Packaging Details: spool ,coil, or as clients' requirement
Delivery Time: 25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000T/month
Certification: |
ISO |
Application: |
Heating |
Standard: |
ASTM |
Type: |
Insulated |
Material: |
Kovar |
Usage: |
Construction |
Color: |
As Required |
Surface Treatment: |
Request |
Grade Group: |
4j29 |
Section Pipe: |
Alloy |
Secondary Or Not: |
Non-secondary |
Certification: |
ISO |
Application: |
Heating |
Standard: |
ASTM |
Type: |
Insulated |
Material: |
Kovar |
Usage: |
Construction |
Color: |
As Required |
Surface Treatment: |
Request |
Grade Group: |
4j29 |
Section Pipe: |
Alloy |
Secondary Or Not: |
Non-secondary |

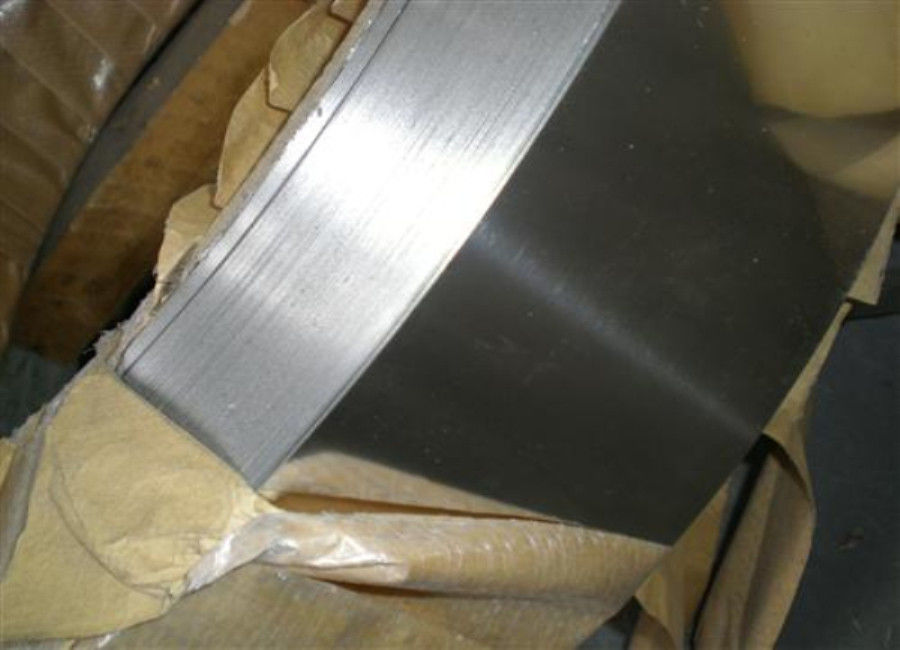

Kovar Strip for Inheritance of Circuit Framework
Grade : Kovar nickel-cobalt ferrous alloy/ 29HK/ 4J29
Classification : the alloy of expansion characteristics
Application: Kovar (trademark of CRS Holdings, inc., Delaware[1]) is a nickel-cobalt ferrous alloy compositionally identical to Fernico 1, designed to be compatible with the thermal expansion characteristics of borosilicate glass (~5 × 10?6 /K between 30 and 200 °C, to ~10 × 10?6 /K at 800 °C) in order to allow direct mechanical connections over a range of temperatures. It finds application in electroplated conductors entering glass envelopes of electronic parts such as vacuum tubes (valves), X-ray and microwave tubes and some lightbulbs.
The thermal properties of alloy
| Temperature coefficient of linear expansion αsr ? 10-6 K-1 in the temperature range, ° C | inflection point temperature, ° C No less | Heat treatment regime blanks and samples | ||||||||||
| 20-80 | 20-100 | 20-300 | 20-400 | 20-450 | 20-500 | 20-800 | ||||||
| - | - | 4,6-5,6 | 4,6-5,2 | - | 5,9-6,4 | - | 420 | samples and blanks annealing in hydrogen, a vacuum or protective atmosphere at a temperature (960 ± 20) ° C, holding 1 hr., cooling with the furnace or container to 200 ° C at a rate not exceeding 10 ° C / min | ||||
| Property | sintered | HIPed | ||||||||||
| Density / g cm3 | 8.0 | 8.35 | ||||||||||
| Hardness / HV1 | 160 | 150 | ||||||||||
| Youngs Modulus / GPa | 138 | 138 | ||||||||||
| reduction of area at fracture / % | 30 | 30 | ||||||||||
| yield strength / MPa | 270 | 270 | ||||||||||
| thermal conductivity / W/Km | 17 | |||||||||||
| Curie Temperature / °C | 435 | |||||||||||
| electrical resistivity Ω mm2 / m | 0.49 | |||||||||||
| specific heat J/gK | 0.46 | |||||||||||
| thermal expansion coefficient/10?6 K?1 (25 - 200 °C) | 5.5 | |||||||||||
| (25-300 °C) | 5.1 | |||||||||||
| (25-400 °C) | 4.9 | |||||||||||
| (25-450 °C) | 5.3 | |||||||||||
| (25-500 °C) | 6.2 | |||||||||||
Chemical Composition in % Kovar
Ni 28,5-29,5% | Fe 51,14-54,5% | C 0.03% | Si 0.3% | Mn 0,4 % | S o 0.015% |
P 0.015% | o 17-18% | Ti 0.1% | Al 0.2% | Cu 0.2% | Cr 0,1 % |
