Type K MgO Mineral Insulated Heating Cable For Thermocouple Sensors

Product Details

Place of Origin: China mainland

Brand Name: Tankii

Certification: ISO9001

Model Number: K type thermocouple cable

Payment & Shipping Terms

Minimum Order Quantity: 200 Meters

Price: Negotiation

Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.

Payment Terms: T/T, Western Union, Paypal

Supply Ability: 1000Ton per year

Get Best Price
Contact Now
Specifications
Highlight:

MgO Mineral Insulated Heating Cable

,

SS304 Sheath Thermocouple Cable

,

Triplex Core Thermocouple Cable

Item:
High Temperature Thermocouple Type K / N MI Cable With Inconel600 Sheath 3*3000mm IEC Class One
Insulation Material:
MgO
Conductor Type:
Solid Or Multi
Standard:
ANSI, IEC
Leading Time:
5~7 Days
Shipping:
By DHL/FedEx/TNT/UPS
Item:
High Temperature Thermocouple Type K / N MI Cable With Inconel600 Sheath 3*3000mm IEC Class One
Insulation Material:
MgO
Conductor Type:
Solid Or Multi
Standard:
ANSI, IEC
Leading Time:
5~7 Days
Shipping:
By DHL/FedEx/TNT/UPS
Description
Type K MgO Mineral Insulated Heating Cable For Thermocouple Sensors
High Temperature Thermocouple Type K / N MI Cable With Inconel600 Sheath 3*3000mm IEC Class One

Description:

Tankii Mineral Insulated Cable (MI cable), comprising a metal sheath in which the conductors are embedded in highly compressed magnesium oxide insulation.

Usually, the conductors (copper or thermocouple wires) are embedded in MgO and pressed into a metal tube made of oxidation and corrosion resistant material.

The entire combination is then rolled under pressure to achieve the desired diameter.



Sheath material: SS304, SS321, SS316, SS310, INCL600

OD: 0.5~12.7mm



Core number:

Simplex,

Duplex,

Triplex



Structure

Conductor: Positive Ni-Cr, Negative Ni-Si

Insulation: Mineral

Jacket: Stainless steel, inconel





High Temperature Thermocouple Type K / N MI Cable With Inconel600 Sheath 3*3000mm IEC Class One



Detailed Description

Thermocouple Code Comp. Type Comp. Wire Name Positive Negative
Name Code Name Code
S SC copper-constantan 0.6 copper SPC constantan 0.6 SNC
R RC copper-constantan 0.6 copper RPC constantan 0.6 RNC
K KCA Iron-constantan22 Iron KPCA constantan22 KNCA
K KCB copper-constantan 40 copper KPCB constantan 40 KNCB
K KX Chromel10-NiSi3 Chromel10 KPX NiSi3 KNX
N NC Iron-constantan 18 Iron NPC constantan 18 NNC
N NX NiCr14Si-NiSi4Mg NiCr14Si NPX NiSi4Mg NNX
E EX NiCr10-Constantan45 NiCr10 EPX Constantan45 ENX
J JX Iron-constantan 45 Iron JPX constantan 45 JNX
T TX copper-constantan 45 copper TPX constantan 45 TNX




























Accuracy tolerance of MI cable: when the reference end is 0 degree, the tolerance shall be
in accordance with GB/T16839.-2 or IEC584






Type

Class of Accuracy
I II III
Tolerance Temp-℃ Tolerance Temp-℃ Tolerance Temp-℃
K ±1.5℃ or ±0.4% t -40~1000 ±2.5℃ or ±0.75% t -40~1000 ±2.5℃ or ±1.5% t -200~40
E -40~1000 -40~1000 -200~40
N -40~800 -40~800 -200~40
J -40~750 -40~750 -200~40
T ±0.5℃ or ±0.4% t -40~350 ±1.0℃ or ±0.75% t -40~400 ±1.0℃ or ±1.5% t -200~40

Packaging & Delivery

Packaging Details Roll with plastic film wrapped and carton package
Delivery Detail Shipped in 7 days after payment



Application: thermocouple sensors

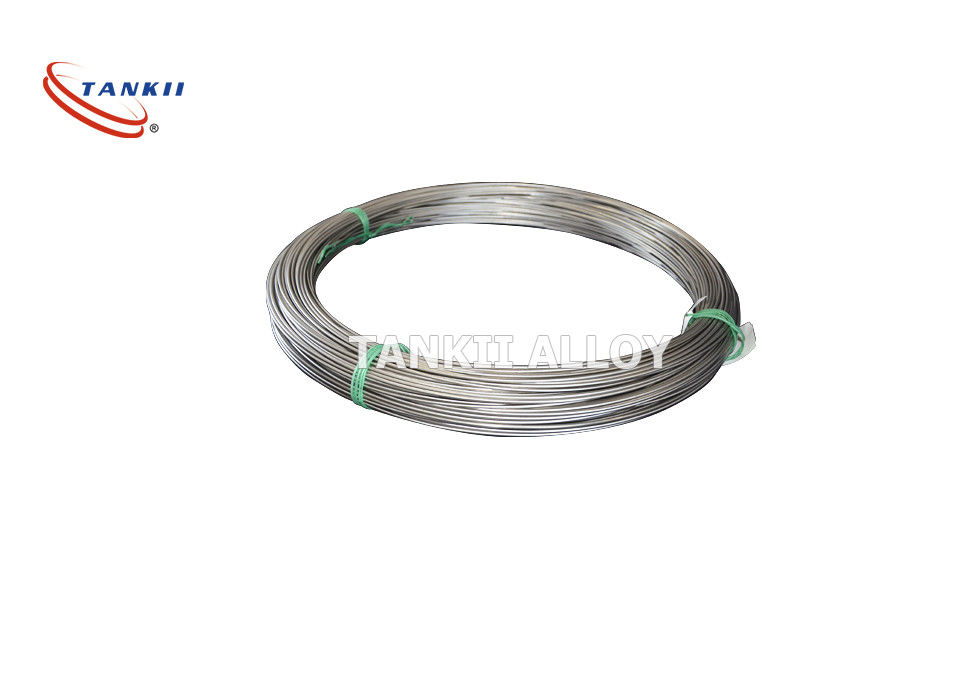

Type K MgO Mineral Insulated Heating Cable For Thermocouple Sensors 0
Type K MgO Mineral Insulated Heating Cable For Thermocouple Sensors 1

FAQ:

1. Payment ways?
T/T, PAYPAL, WESTUNION.


2. When will you arrange the production?
In 12 hours since we get your payment.


3. Product certifications?
MTC , ISO9001, ROHS , SGS as customers' request


4. What kind of informations shall I give you regarding the shipping?
Company name, Recipients, Correct Address, telephone, zip code.


5. What is your warranty ?
For most of our products, the warranty will be 12 months.


6. When will I get a solution for defective products?
Within 48 hours (on working days )


7. What is your shipping way?
DHL, FEDEX, UPS, TNT, EMS, CHINA POST AIR, SEA FREIGHT and AIR FREIGHT!


8. What is your shipping time?
For General Orders, the shipping time will be 5 workdays.

Welcome to call me or email to me for more info on K type thermocouple MI cable .
