Product Details
Place of Origin: China mainland
Brand Name: Tankii
Certification: ISO9001
Model Number: K type thermocouple cable
Payment & Shipping Terms
Minimum Order Quantity: 200 Meters
Price: Negotiation
Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000Ton per year
Item: |
Mineral Insulated Thermocouple Wire Type K / N With Inconel600 Sheath |
Insulation Material: |
MgO |
Conductor Type: |
Solid Or Multi |
Standard: |
ANSI, IEC |
Leading Time: |
5~7 Days |
Shipping: |
By DHL/FedEx/TNT/UPS |
Item: |
Mineral Insulated Thermocouple Wire Type K / N With Inconel600 Sheath |
Insulation Material: |
MgO |
Conductor Type: |
Solid Or Multi |
Standard: |
ANSI, IEC |
Leading Time: |
5~7 Days |
Shipping: |
By DHL/FedEx/TNT/UPS |
Tankii Mineral Insulated Cable (MI cable), comprising a metal sheath in which the conductors are embedded in highly compressed magnesium oxide insulation.
Usually, the conductors (copper or thermocouple wires) are embedded in MgO and pressed into a metal tube made of oxidation and corrosion resistant material.
The entire combination is then rolled under pressure to achieve the desired diameter.
Sheath material: SS304, SS321, SS316, SS310, INCL600
OD: 0.5~12.7mm
Core number:
Simplex,
Duplex,
Triplex
Structure
Conductor: Positive Ni-Cr, Negative Ni-Si
Insulation: Mineral
Jacket: Stainless steel, inconel

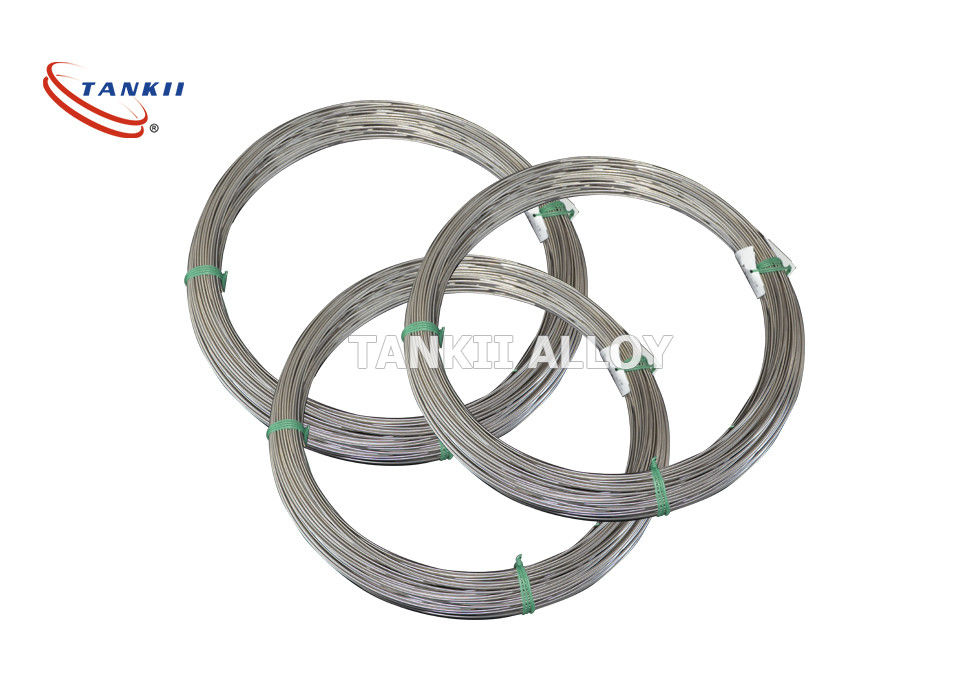

Mineral Insulated Thermocouple Wire Type K / N With Inconel600 Sheath
| Thermocouple Code | Comp. Type | Comp. Wire Name | Positive | Negative | ||
| Name | Code | Name | Code | |||
| S | SC | copper-constantan 0.6 | copper | SPC | constantan 0.6 | SNC |
| R | RC | copper-constantan 0.6 | copper | RPC | constantan 0.6 | RNC |
| K | KCA | Iron-constantan22 | Iron | KPCA | constantan22 | KNCA |
| K | KCB | copper-constantan 40 | copper | KPCB | constantan 40 | KNCB |
| K | KX | Chromel10-NiSi3 | Chromel10 | KPX | NiSi3 | KNX |
| N | NC | Iron-constantan 18 | Iron | NPC | constantan 18 | NNC |
| N | NX | NiCr14Si-NiSi4Mg | NiCr14Si | NPX | NiSi4Mg | NNX |
| E | EX | NiCr10-Constantan45 | NiCr10 | EPX | Constantan45 | ENX |
| J | JX | Iron-constantan 45 | Iron | JPX | constantan 45 | JNX |
| T | TX | copper-constantan 45 | copper | TPX | constantan 45 | TNX |
|
Type |
Class of Accuracy | |||||
| I | II | III | ||||
| Tolerance | Temp-℃ | Tolerance | Temp-℃ | Tolerance | Temp-℃ | |
| K | ±1.5℃ or ±0.4% t | -40~1000 | ±2.5℃ or ±0.75% t | -40~1000 | ±2.5℃ or ±1.5% t | -200~40 |
| E | -40~1000 | -40~1000 | -200~40 | |||
| N | -40~800 | -40~800 | -200~40 | |||
| J | -40~750 | -40~750 | -200~40 | |||
| T | ±0.5℃ or ±0.4% t | -40~350 | ±1.0℃ or ±0.75% t | -40~400 | ±1.0℃ or ±1.5% t | -200~40 |
| Packaging Details | Roll with plastic film wrapped and carton package |
|---|---|
| Delivery Detail | Shipped in 7 days after payment |
Application: thermocouple sensors
