Product Details
Place of Origin: Shanghai, China,
Brand Name: TANKII
Certification: ISO SGS
Model Number: CuBe2
Payment & Shipping Terms
Minimum Order Quantity: 300KGS
Price: negotiable
Packaging Details: wooden case / wooden pallet
Delivery Time: 7-15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 Tons per Month

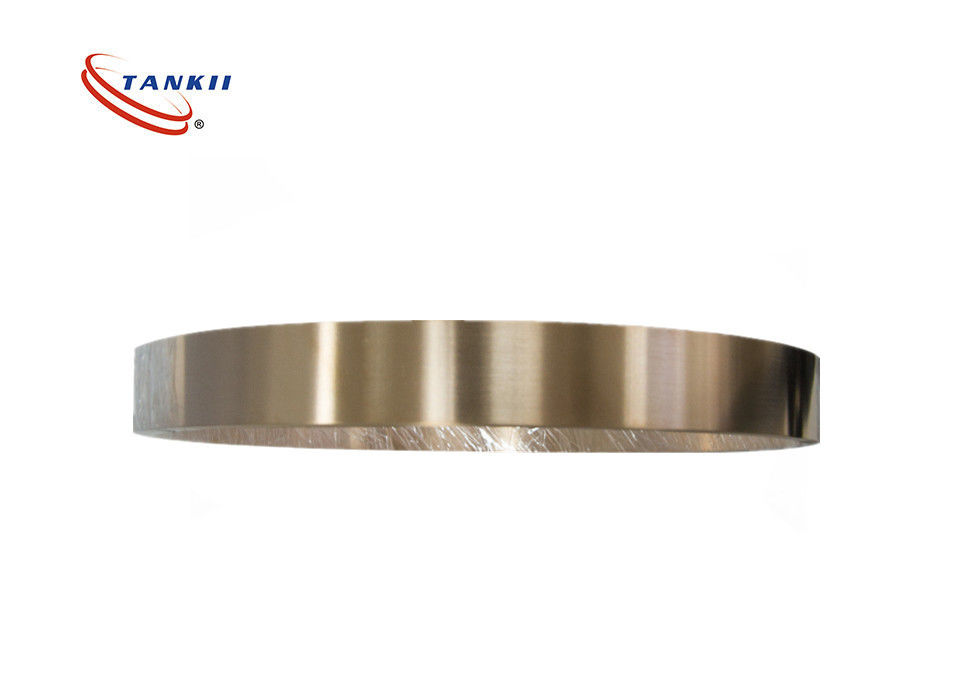

Production Name: |
Beryllium Coper Strip |
Material: |
Copper Beryllium Alloy Tape |
Thickness: |
0.05mm Min |
Width: |
1.0mm -250mm |
Surface: |
Bright / Polished |
Production Name: |
Beryllium Coper Strip |
Material: |
Copper Beryllium Alloy Tape |
Thickness: |
0.05mm Min |
Width: |
1.0mm -250mm |
Surface: |
Bright / Polished |
Chemistry Content | |||||||||
Name | Main Chemistry Content | Impuity(≤wt%) | |||||||
Be | Co | Ni | Cu | Fe | Al | Si | Pb | Total | |
QBe2 | 1.8~2.1 | / | 0.2~0.25 | Bal | 0.15 | 0.15 | 0.15 | 0.005 | 0.5 |
QBe1.9 | 1.85~2.1 | Ti:0.1~0.25 | 0.2~0.4 | Bal | 0.15 | 0.15 | 0.15 | 0.005 | 0.5 |
CuBe1.7(C17000) | 1.6~1.79 | Ni+Co≥0.2 | Cu+stipulated Element≥99.5 | Ni+Co+Fe≤0.6 | 0.5 | ||||
CuBe2(C17200) | 1.8~2.0 | Ni+Co≥0.2 | Cu+stipulated Element≥99.5 | Ni+Co+Fe≤0.6 | 0.5 | ||||
C17300 | 1.8~2.0 | Ni+Co≥0.2 | Cu+stipulated Element≥99.5 | Ni+Co+Fe≤0.6 | 0.2~0.6 | 0.5 | |||
C17500 | 0.4~0.7 | 2.4~2.7 | / | Bal | Cu+Be+Ni+Co≥99.5 | ||||
C17510 | 0.2~0.6 | 0.3 | 1.4~2.2 | Bal | 0.1 | 0.02 | 0.2 | / | 0.5 |
CuBe0.3 | 0.2~0.4 | Ni+Co:1.8~2.5 | Cu+Be+Ni+Co≥99.0 |
Cube2--C17200 (CDA 172) Beryllium Copper is the most commonly utilized Copper Beryllium alloy and is notable for its highest strength and hardness compared to commercial copper alloys. C17200 alloy contains appr. 2% of beryllium and achieves its ultimate tensile strength can exceed 200 ksi, while the hardness approaches Rockwell C45. Meanwhile, the electrical conductivity is a minimum of 22% IACS in the fully aged condition.C17200 also exhibits exceptional resistance to stress relaxation at elevated temperatures.
Chemical CompositionC17200
Element | Component |
Be | 1.85-2.10% |
Co+Ni | 0.20% Min |
Co+Ni+Fe | 0.60% Max. |
Cu | Balance |
Physical Properties C17200
Density (g/cm3) | 8.36 |
Density before age hardening (g/cm3 | 8.25 |
Elastic Modulus (kg/mm2 (103)) | 13.40 |
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C) | 17 x 10-6 |
Thermal Conductivity (cal/(cm-s-°C)) | 0.25 |
Melting Range (°C) | 870-980 |
status | Tensile strength (Kg/mm3) |
Hardness (HV) |
Conductivity ( IACS%) |
Elongation (%) |
H | 70-85 | 210-240 | 22 | 2-8 |
1/2H | 60-71 | 160-210 | 22 | 5-25 |
0 | 42-55 | 90-160 | 22 | 35-70 |
status | Tensile strength (Kg/mm3) |
Hardness (HV) |
Conductivity (IACS%) |
Elongation (%) |
H | 130-151 | 380-420 | 22 | 1-5 |
1/2H | 126-147 | 370-410 | 22 | 2-7 |
0 | 112-135 | 350-339 | 22 | 3-11 |
Features
1. High thermal conductivity
2. High corrosion resistance, especially suitable for polyoxyethylene (PVC) products mold.
3. High hardness, wear resistance and toughness, as inserts used with mould steel and aluminium can make the mold play a highly efficient, prolong the service life.
4. Polishing performance is good, can achieve high mirror surface precision and complicated shape design.
5. Good tackiness resistance, easy to welding with other metal, easy to machining, there is no need additional heat treatment.
Applications
1. Beryllium Copper is widely used in mold core, injection mold insert, mold cavity, corrosion resistant die, die casting
2. machine head, watering the crossing thimble, the punch mould parts, hot runner system such as accessories,
3. stretching die, casting mould, die-casting mould, and corrosion resistant wear resistant parts such as bearings,
