Product Details
Place of Origin: Shanghai, China,
Brand Name: TANKII
Certification: ISO SGS
Model Number: C51900
Payment & Shipping Terms
Minimum Order Quantity: 20 KGS
Price: negotiable
Packaging Details: Carton + wooden case
Delivery Time: 7-15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Tons per Month
Production Name: |
Tin Phosphor Bronze Copper Wire |
Type: |
Phosphor Bronze Wire |
Application: |
Electrical Equipment |
Material: |
Cu-Sn Alloy |
Surface: |
Bright |
Production Name: |
Tin Phosphor Bronze Copper Wire |
Type: |
Phosphor Bronze Wire |
Application: |
Electrical Equipment |
Material: |
Cu-Sn Alloy |
Surface: |
Bright |

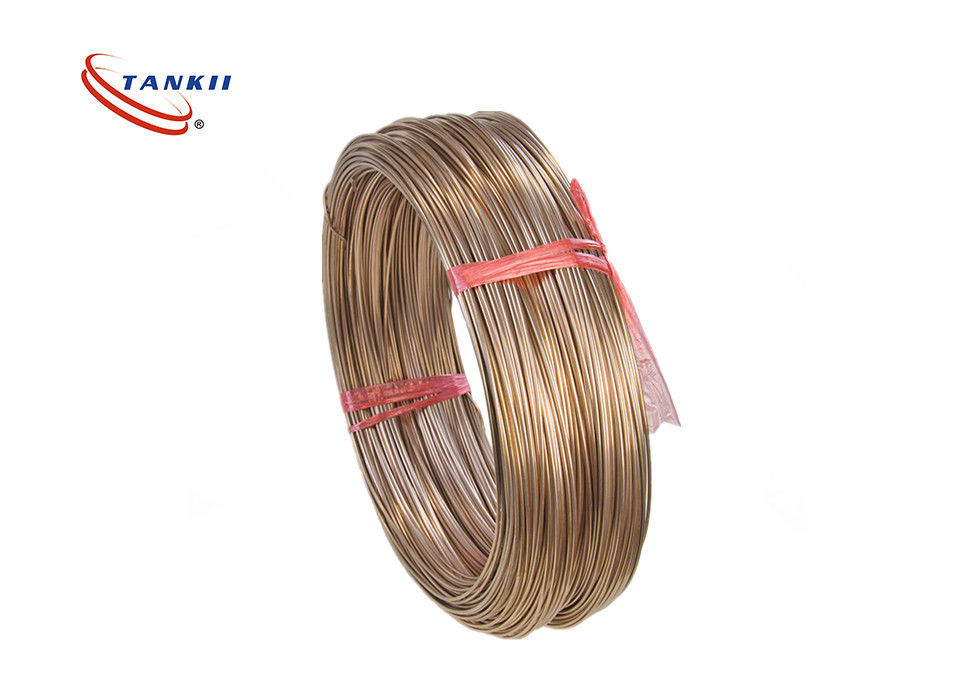

C51000 C51100 C51900 C52100 Tin Phosphor Bronze Hard Brass Copper Wire
Detailed information
Phosphorus copper is also named green stannum copper.
Material: Phosphorus copper wire. Phosphorus copper is an alloy of tin, phosphorus and copper. It's resistant to corrosion, wear, tear, etc. Copper containing 85%-90%, tin: 5%-15%.
Weave: Plain weave, twill weave, etc.
Characteristic: The product is non-magnetic, resistant to corrosion, wear and tear etc., but it's not suitable for exposure to hydrochloric acid or strong oxidizing agents. Non magnetism, abrasion resistant, good ductilibility.
Uses: Usually used in sieving and filtering in pharmaceutical and food hygiene industry; Sifting for porcelain clay, particles and powder; Printing on the porcelain and glassware etc.
Specification Reference of Phosphor Bronze or Copper Wire Mesh (Cloth)
C51900/ CuSn6 Phosphor Bronze, which is a 6% tin bronze distinguished by a very good combination of strength and electrical conductivity.
It is used for connector and current-carrying springs in contacts. Among the 4-8% tin bronze C51900 exhibits a high electrical conductivity, the highest reachable strength is significantly higher than C51000. By means of an additional further tempering after the cold forming process the bendability can be further improved.
Due to the higher strength and springiness and good workability, C51900 is used for all types of springs as well as for flexible metal hoses.
Chemical Composition
| Element | Component |
| Sn | 5.5-7.0% |
| Fe | ≤0.1% |
| Zn | ≤0.2% |
| P | 0.03-0.35% |
| Pb | ≤0.02% |
| Cu | Balance |
Mechanical Properties
| Alloy | Temper | Tensile Strength N/mm2 | Elongation % | Hardness HV | Remark |
| c51900 | O | ≥290 | ≥40 | 75-105 | |
| 1/4H | 390-510 | ≥35 | 100-160 | ||
| 1/2H | 440-570 | ≥8 | 150-205 | ||
| H | 540-690 | ≥5 | 180-230 | ||
| EH | ≥640 | ≥2 | ≥200 |
1. Thickness:0.01mm--2.5mm,
2. Width: 0.5--400mm,
3. Temper: O, 1/4H, 1/2H, H, EH, SH
4. Eco-friendly, provide different requests on hazardous substance, such as lead, lower than 100ppm; Rohs report supplied.
5. Provide Mill certificate for each roll, with lots, specification, N.W., G.W., HV value, MSDS, SGS report.
7. Strict tolerance control on thickness and width, as well as other quality concern.
8. Coil weight can be customized.
9. Packing: Neutral packing, plastic bag, paper liner in the polywood pallet or case. 1 or several coils in 1 pallet (depend on coil width), shipping mark. One 20" GP can load 18-22 tons.
10. Lead time: 10-15days after the PO
