Product Details
Place of Origin: CHINA
Brand Name: Tankii
Model Number: Nickel alloy wire
Payment & Shipping Terms
Minimum Order Quantity: 5KG
Packaging Details: spool，coil
Delivery Time: 5-30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000kg/month
Certification: |
ISO 9001 |
Application: |
Foam Cutting |
Color: |
Gray |
Product Name: |
Foam Cutting Wire |
Certification: |
ISO 9001 |
Application: |
Foam Cutting |
Color: |
Gray |
Product Name: |
Foam Cutting Wire |

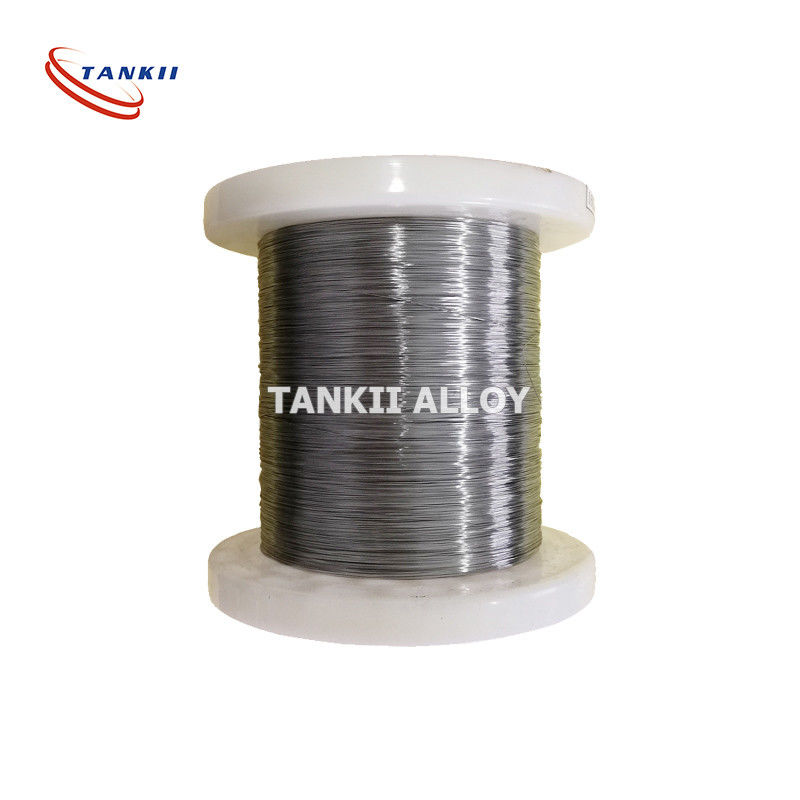

Foam Cutting Wire Nickel Alloy Wire Stainless Steel Wire foam sculpting tools For Cutting
Ni80Cr20, Nikrothal8, MWS-650,NiCrA, TophetA, HAI-NiCr80, Chromel A, Alloy A, Alloy 650, N8, Resistohm 80, Stablohm 650, Nichorme V, Nikrothal 80.
Ni80Cr20 is a nickel-chromium alloy (NiCr alloy) characterized by high resistivity, good oxidation resistance and very good form stability. It is suitable for use at temperatures up to 1200°C,and hold a superior service life compared to Iron chromium alumium alloys.
Typical applications for Ni80Cr20 are electric heating elements in home appliances, industrial furnaces and resistors( wirewound resistors, metal film resistors), flat irons, ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements.
Chemical Composition
| Properties/Grade | Cr20Ni80 | Cr30Ni70 | Cr15Ni60 | Cr20Ni35 | Cr20Ni30 | |
| Main Chemical composition | Ni | Rest | Rest | 55.0-61.0 | 34.0-37.0 | 30.0-34.0 |
| Cr | 20.0-23.0 | 28.0-31.0 | 15.0-18.0 | 18.0-21.0 | 18.0-21.0 | |
| Fe | ≤1.0 | ≤1.0 | Rest | Rest | Rest | |
|
Max. continuous service temp. of element |
1200 | 1250 | 1150 | 1100 | 1100 | |
| Resistivity at 20oC (μΩ·m) | 1.09 | 1.18 | 1.12 | 1.04 | 1.04 | |
| Density (g/cm3) | 8.40 | 8.10 | 8.20 | 7.90 | 7.90 | |
| Thermal conductivity(KJ/m·h·oC) | 60.3 | 45.2 | 45.2 | 43.8 | 43.8 | |
| Coefficient of lines expansion(α×10-6/oC) | 18.0 | 17.0 | 17.0 | 19.0 | 19.0 | |
| Melting point (approx.)( oC) | 1400 | 1380 | 1390 | 1390 | 1390 | |
| Elongation at rupture (%) | >20 | >20 | >20 | >20 | >20 | |
| Micrographic structure | austenite | austenite | austenite | austenite | austenite | |
| Magnetic properties | nonmagnetic | nonmagnetic | nonmagnetic | nonmagnetic | nonmagnetic | |
Packaging & Shipping
Packaging: Products are generally supplied in standard cardboard boxes, pallets, wooden boxes. Special
packaging requirements can also be accommodated. (also depend on the customers' requirements)
For the Thermal spray wires, we pack the wires on spools. Then put spools into cartons, Then put the cartons onto pallet.
Shipping: We cooperation with many logistics company, We can provide express, sea transportation, air transportation, and rail way transportation based on customers' requirement.
