Product Details
Place of Origin: Shanghai
Brand Name: Tankii
Certification: DIN, ASTM, JIS
Model Number: Ni200 Ni201
Payment & Shipping Terms
Minimum Order Quantity: 20kg
Price: 15-30$
Packaging Details: spool ,coil, or as clients' requirement
Delivery Time: 25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000T/month
Sample: |
Free |
Standard: |
ASTM/GB |
Thickness: |
0.002-10mm |
Width: |
1300mm |
Surface: |
Bright |
Colour: |
Silver White |
MOQ: |
20KG |
Condition: |
Soft 1/4H 1/2H/Hard |
Purity: |
99.96% |
Diameter: |
0.018mm-5mm |
Sample: |
Free |
Standard: |
ASTM/GB |
Thickness: |
0.002-10mm |
Width: |
1300mm |
Surface: |
Bright |
Colour: |
Silver White |
MOQ: |
20KG |
Condition: |
Soft 1/4H 1/2H/Hard |
Purity: |
99.96% |
Diameter: |
0.018mm-5mm |
Pure Nickel Wire (NI200 NI201) UNS NO2201 0.025mm
| Nickel Grade | Ni+Co | Cu | Si | Mn | C | Cr | S | Fe | Mg |
| ≥ | ≤ | ||||||||
| Ni201 | Bal. | .25 | .3 | .35 | .02 | .2 | .01 | .3 | - |
| Ni200 | Bal. | .25 | .3 | .35 | .15 | .2 | .01 | .3 | - |

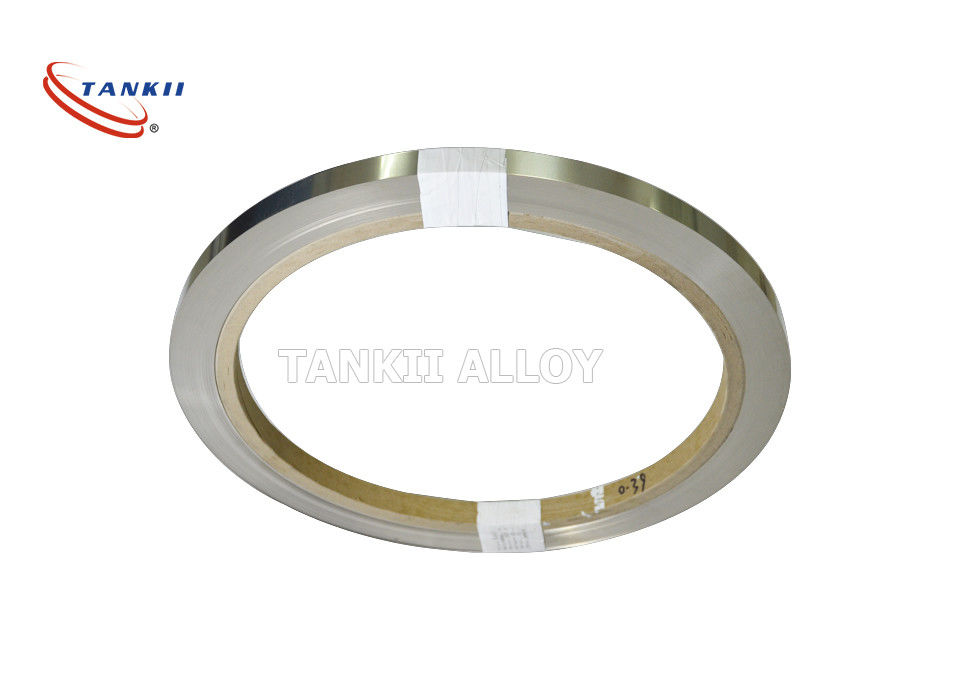

Nickel Strip
Characteristics and Applications of Nickel Strip
1) High degree of electrical conductivity
2) Low electrical resistivity
3) Excellent surface and slit edge conditions
4) Enhanced solderability as a result of low surface oxides
5) Excellent formability with deep draw characteristics with reduced die wear
6) Resistance to grain growth
7)Rechargeable Batteries (Nickel Metal Hydride, Lithium Ion), Metal Stamping, 8)Lead Frames, Gaskets and Seals, Lighting Applications, Superconductor Applications
Nickel Strip Dimension Tolerance
| Thickness (mm) | Thickness Tolerance | Burr height |
Width Tolerance (mm) | |||||
| 2≤w <10 |
10≤w <50 |
50≤w <100 |
100≤w <150 |
150≤w <200 |
200≤w ≤500 |
|||
| 0.02≤t<0.05 | +0.002, -0.003 |
≤0.005 | ±0.05 | ±0.10 | ±0.15 | ±0.20 | ±0.30 | ±0.50 |
| 0.05≤t<0.1 | ±0.005 | ≤0.01 | ||||||
| 0.1≤t<0.2 | ±0.008 | ≤0.015 | ||||||
| 0.2≤t<0.3 | ±0.012 | ≤0.02 | ||||||
| 0.3≤t<0.4 | ±0.015 | ≤0.03 | ±0.10 | ±0.15 | ±0.25 | ±0.50 | ±0.80 | ±1.00 |
| 0.4≤t<0.6 | ±0.025 | ≤0.05 | ||||||
| 0.6≤t<0.8 | ±0.030 | ≤0.06 | ±0.30 | ±0.40 | ±0.50 | ±0.50 | ±0.80 | ±1.00 |
| 0.8≤t<1.0 | ±0.040 | |||||||
| 1.0≤t<1.2 | ±0.050 | ≤0.08 | ±0.50 | ±0.50 | ±0.80 | ±1.00 | ±1.00 | ±1.50 |
| 1.2≤t<1.4 | ±0.060 | |||||||
| 1.4≤t<1.7 | ±0.070 | ≤0.10 | ||||||
| 1.7≤t<2.0 | ±0.080 | |||||||
Applications of Nickel Wire
Eectric apparatus and chemical machinery,strong base of the filter ,valves grid, inner components of vacuum valves, components insides the electron tubes, lead
wire, supporting wire, battery production, vacuum coating, sparking electrodes, and heat exchangers
Shanghai Tankii Alloy Material Co., Ltd. is specialized in production of Ni-Cr Alloy, Cu-Ni Alloy, Fechral, thermocouple wire, pure nickel and other precision alloy materials in the form of wire, strip, rod, bar and plate.
Dimension and Tolerance (mm)
| Diameter | 0.025-0.03 | >0.03-0.10 | >0.10-0.40 | >0.40-0.80 | >0.80-1.20 | >1.20-2.00 |
| Tolerance | ±0.0025 | ±0.005 | ±0.006 | ±0.013 | ±0.02 | ±0.03 |
