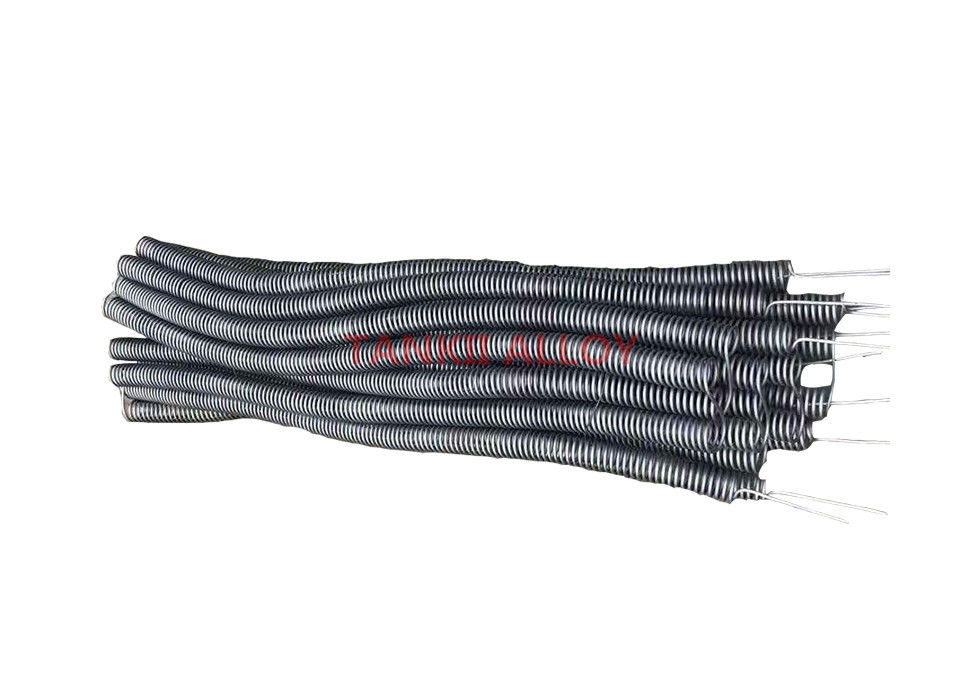

SUS304 SUS321 Coil Tube Spiral Heater Element Annealing

Product Details

Place of Origin: Shanghai

Brand Name: TANKII

Certification: ISO9001

Model Number: SUS304/SUS321

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Price: negotiable

Packaging Details: coil, carton,wooden pallet or box

Delivery Time: 8-20 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 200+ton+month

Get Best Price
Contact Now
Specifications
Highlight:

SUS321 Spiral Heater Element

,

Coil Tube Spiral Heater Element

,

Annealing Spiral Heater Element

Material:
Stainless Steel
Application:
Stove,furnace,oven
Shape:
Spiral Or Round,flat
Color And Surface Treatment:
Green Or Black, Annealing
Material:
Stainless Steel
Application:
Stove,furnace,oven
Shape:
Spiral Or Round,flat
Color And Surface Treatment:
Green Or Black, Annealing
Description
SUS304 SUS321 Coil Tube Spiral Heater Element Annealing

Coil Tube Heating Element

The stainless steel electric heating tube adopts metal tube as its shell, spiral electric heating alloy wires (nickel chromium and iron chromium alloy) are evenly distributed along the inner center of the tube. the gaps are filled and compacted with magnesium oxide sand with good insulation and heat conductivity. both ends of the tube mouth are sealed with silica gel or ceramic. this metal armored electric heating element can heat air, metal molds and various liquids. According to the different usage status, safety and installation requirements of the electric heating tube, the electric heating tube will also include sealing structure, terminal part structure, flange, temperature control or fuse and other structures.
Tubular heaters are available in Copper, SS304, SS 310, SS316, SS321, incoloy sheath. Tubular heating elements are available for various industrial & domestic applications. We built every technically possible heaters as per your requirement.

1.Stove heating element
2.Pipe material: SUS304,SUS316,SUS321.SUS309S, Incoloy 840
3.Pipe Diameter: 6.6mm, 8.0mm
4.Resistance wire: 0CR23A15, NI80CR20,0Cr25Al5
5.Two terminal 4 Coils with braket type
Voltage & Power:110V-240V,500W-2000W



Specifications

Outer Diameter: 6.3mm~6.5mm
Surface Colour:GreenBlack
Model Sizes:4Circles(150mm/165mm/180mm)7" 8"

Votage:240V
Power:2600W
Type:with Bracket/without bracket

Feature:
Heating elements for electric stove or cooking equipment
Long life
High quality
When you inquiry, pls supply us the following details:

1 Heater model, and shape;
2 Wattage and voltage,power ect.
3 Usage environmental and max temperature;
4 Material and surface treatment;
5 Diameter and length of tube;
6 The drawing is preferred.
